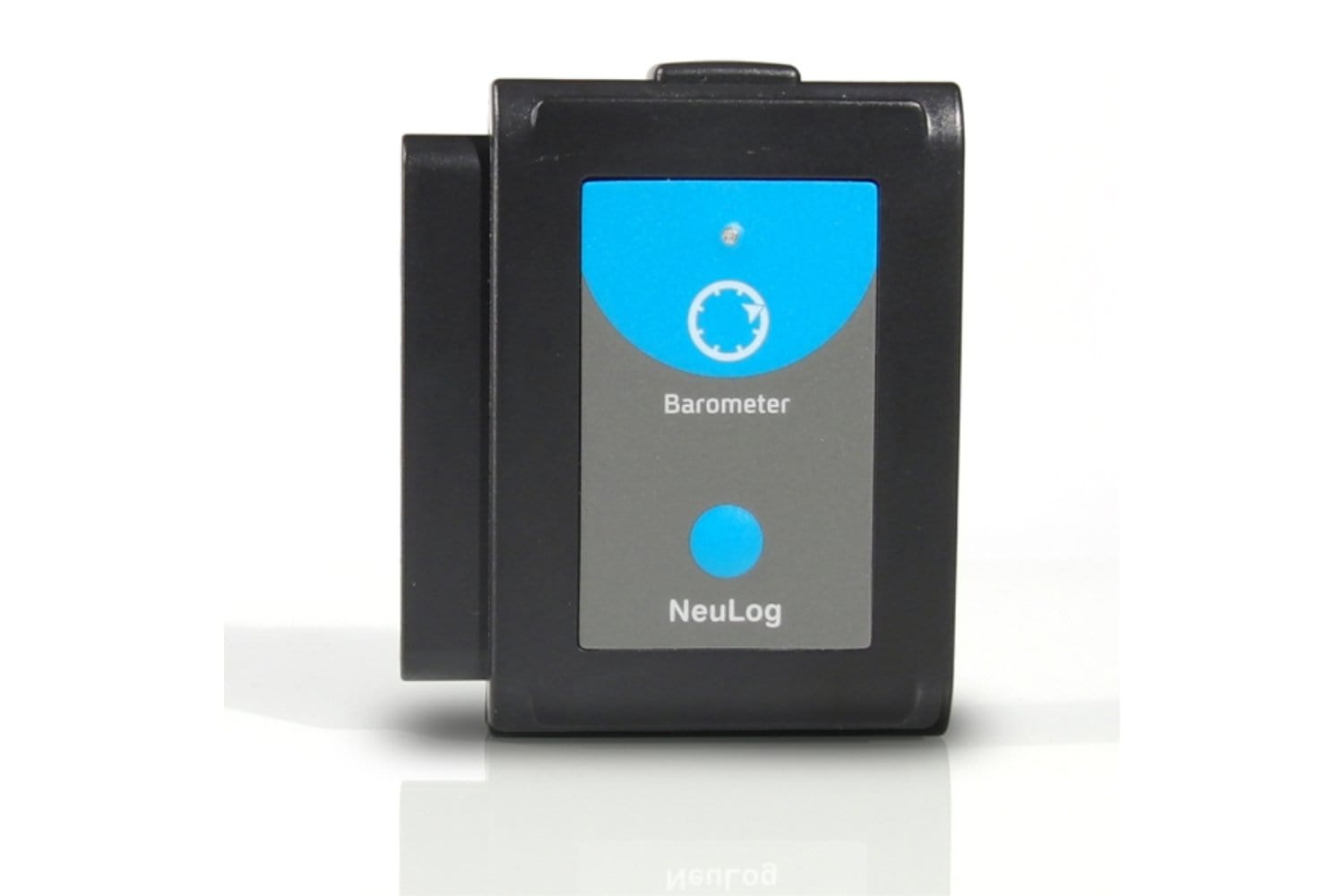

Neulog Barometer Sensor NUL-221

Item # NL-2210

0 star rating Write a review

Neulog

NL-2210

18111767117897

$78.99
Sold Out

Item can be ordered

This sensor measures atmospheric barometric pressure.

-
+

This sensor measures atmospheric barometric pressure. This sensor has five common ranges for displaying atmospheric pressure:
kPa – Kilo Pascal
Atm – Atmospheres
in Hg – Inches of Mercury
mm Hg - Millimeter of Mercury

The fifth range is the altitude (in meters). The highest barometric pressure is on the sea level – when we go up, the pressure goes down.

Specifications:
Experiment Duration: 1 second to 31 days.
Range and operation modes with Resolution:
80-106 KPa - 0.1 KPa
0.80-1.00 Atm - 0.01 Atm
23.60-31.30 in Hg - 0.01 in Hg
–380-1950 m - 0.1 m
600-795 mm Hg - 0.7 mm Hg

Max Sample Rate (S/sec): 100
ADC resolution: 15 bit

Please note: A connection between your sensors and hardware is required. You can choose from the USB Module, WiFi Module, RF Module, or Display Module. A Battery Module is also required for any connection other then USB Module, which is powered through the cable. View the  Neulog Connection Interface Group  for accessories.

Products being sold are not toys. They are for Educational / Labratory use only. They are not for use by children 12 and under.
