Neulog Conductivity Sensor NUL-215
Item # NL-2150
Neulog
NL-2150
18111764693065
Item can be ordered

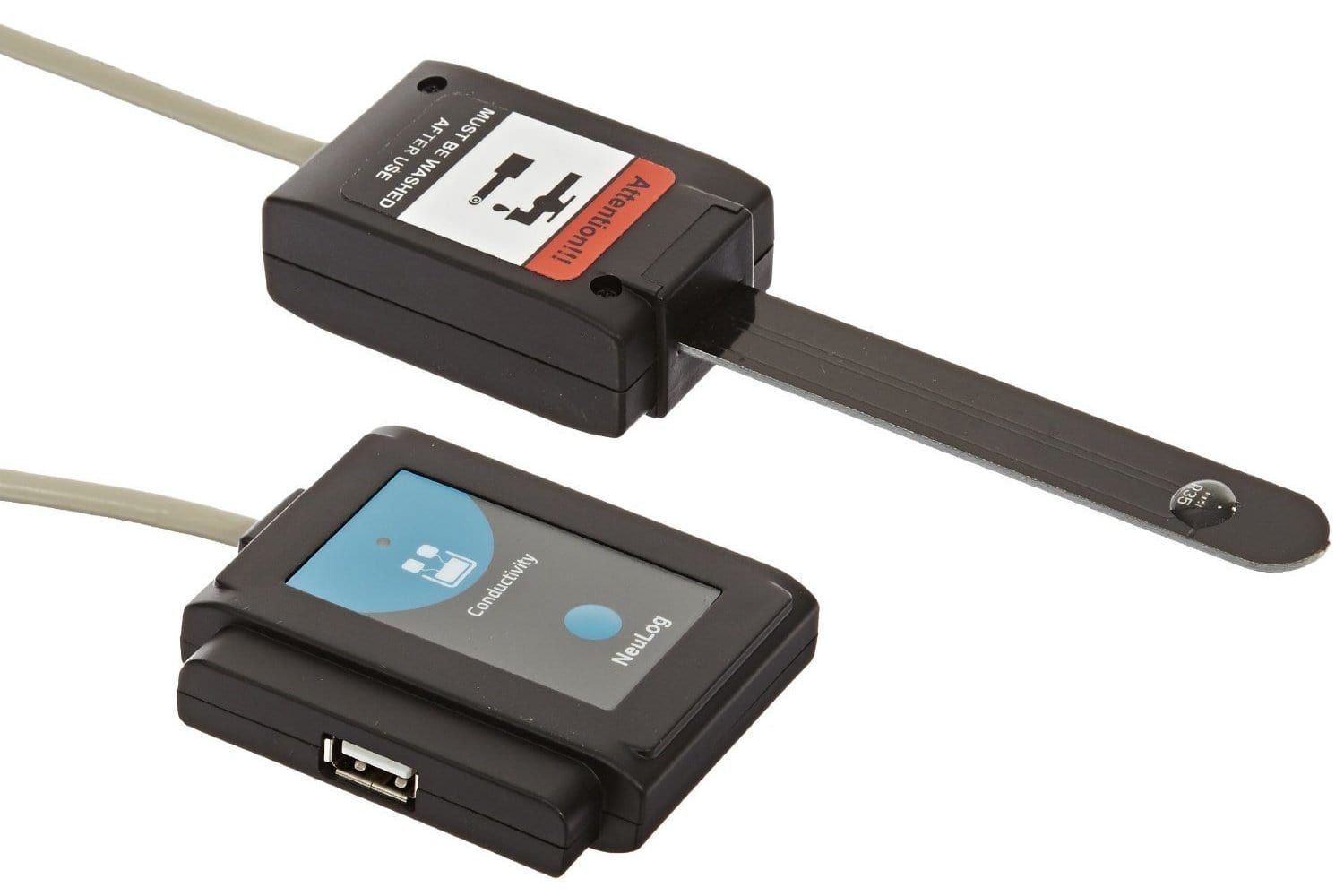

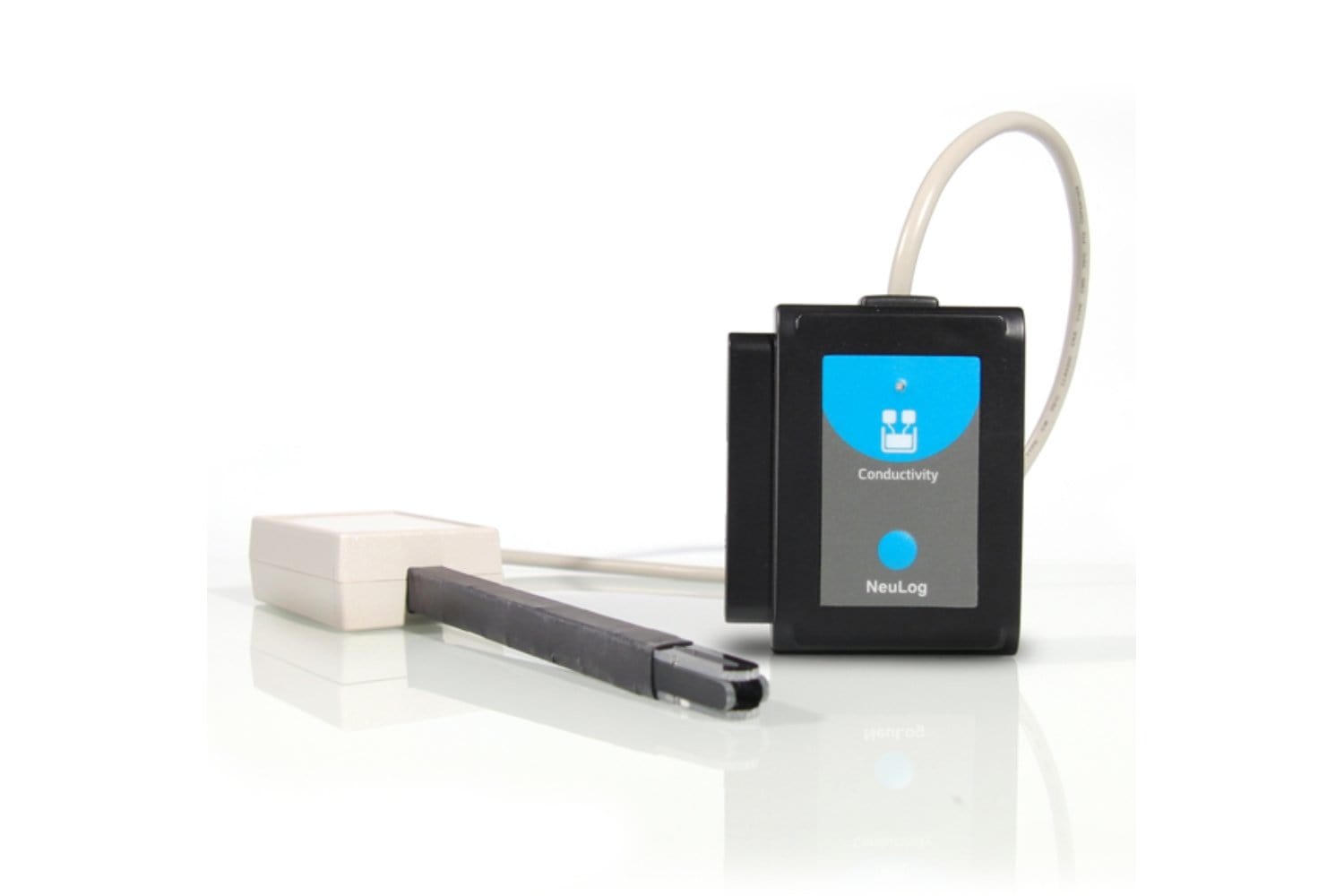

The Conductivity Sensor is based on a probe with two flat electrodes with known surface area and distance between them.
This logger sensor is based on a probe with two flat electrodes with known surface area and distance between them. A signal is supplied to the electrodes and by testing the signal behavior, the conductivity of the solution is calculated.
The logger sensor has three ranges for displaying the solution conductivity:
μs/cm – micro Siemens per centimeter
mg/L – milli gram per Liter
ppm – part per million
Specifications:
Experiment Duration: 1 second to 31 days.
Range and operation modes:
Resolution:
0-2000 μs/cm - 0.1 μs/cm Over 2000 - 1 μs/cm
0-1000 mg/L - 0.1 mg/L Over 1000 - 1 mg/L
0-1000 ppm - 0.1 ppm Over 1000 - 1 ppm
Max Sample Rate (S/sec): 100
ADC resolution: 17 bit
Please note: A connection between your sensors and hardware is required. You can choose from the USB Module, WiFi Module, RF Module, or Display Module. A Battery Module is also required for any connection other then USB Module, which is powered through the cable. View the Neulog Connection Interface Group for accessories.
Products being sold are not toys. They are for Educational / Labratory use only. They are not for use by children 12 and under.
