Neulog Light Sensor NUL-204
Item # NL-2040
This sensor is very versatile with applications in many areas of the natural sciences. It can be used to study photosynthesis in Biology, to study light-emitting chemical reactions in Chemistry, to study the effect of changing voltage on a light-bulb's output in Physics and more.
|Neulog Acceleration Sensor NUL-227 Item # NL-2270||
|Neulog Anemometer Sensor NUL-242 Item # NL-2420||
|Neulog Current Sensor NUL-202 Item # NL-2020||
|Neulog Force Plate Sensor NUL-225 Item # NL-2250||
|Neulog Force Sensor NUL-211 Item # NL-2110||
|Neulog Hand Dynamometer Sensor NUL-237 Item # NL-2370||
|Neulog Motion Sensor NUL-213 Item # NL-2130||
|Neulog Photogate Sensor NUL-209 Item # NL-2090||
|Neulog Pressure Sensor NUL-210 Item # NL-2100||
|Neulog Sound Sensor NUL-212 Item # NL-2120||
|Neulog Surface Temperature Sensor NUL-233 Item # NL-2330||
|Neulog Voltage Sensor NUL-201 Item # NL-2010||
|Neulog Wide-Range Temperature Sensor NUL-234 Item # NL-2340||

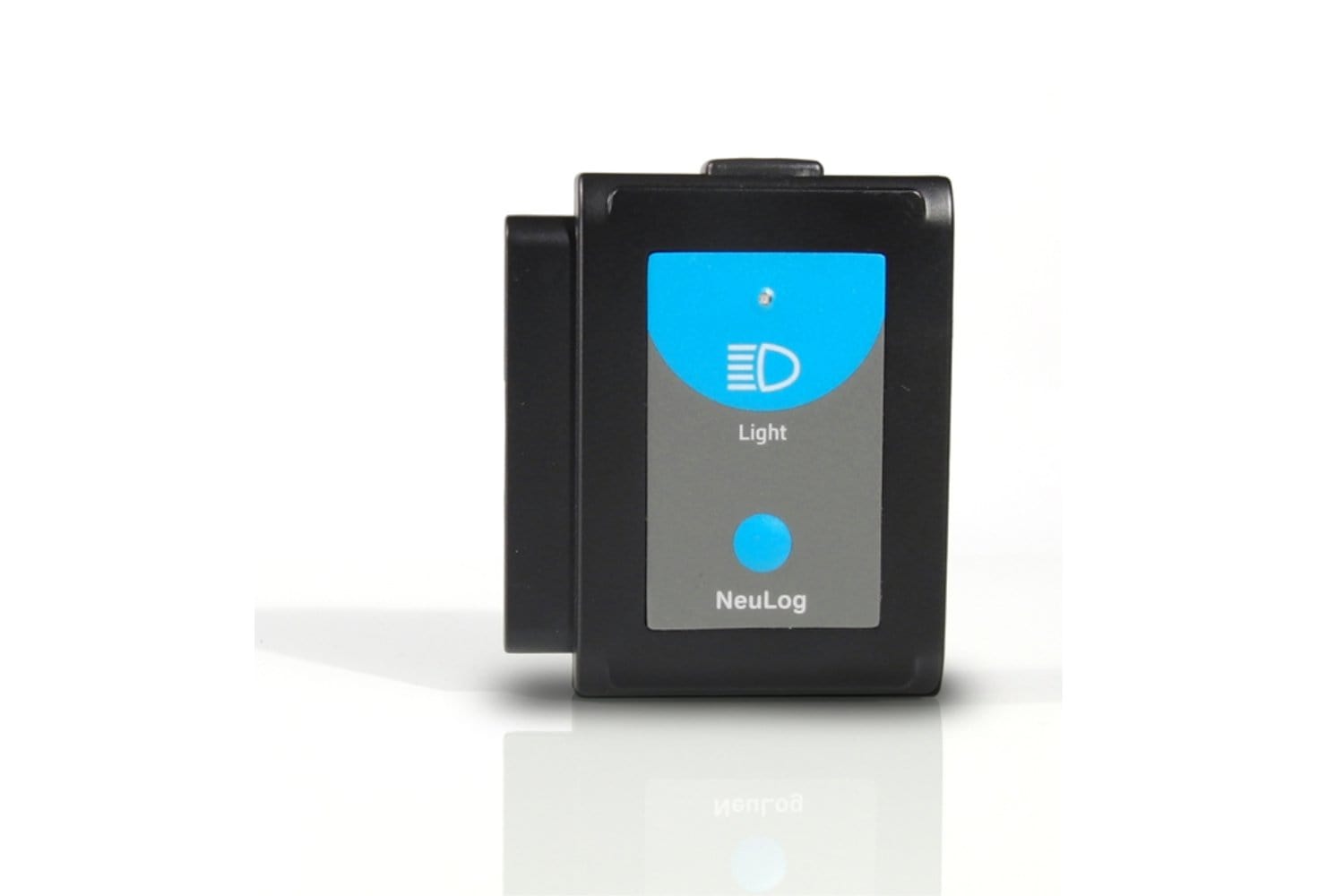

This sensor is very versatile with applications in many areas of the natural sciences. It can be used to study photosynthesis in Biology, to study light-emitting chemical reactions in Chemistry, to study the effect of changing voltage on a light-bulb's output in Physics and more. With three ranges, it can be used in low light environments such as in a classroom, or high light environments as in daylight outdoors. It measures Illumination. With both fast and slow modes, it can be used to measure fast light changes such as those produced by light bulbs connected to an AC supply, as well as the near steady levels outside on a sunny day. The light sensor in located in a plastic box just behind an access hole.
Experiment Duration: 50 milliseconds to 31 days.
Range and operation modes:
Illumination: 0 to 1,000 1lx Resolution
Illumination: 0 to 6,000 6lx Resolution
Illumination: 0 to 150,000 150lx Resolution
Signal: 0 to 1,000 1lx Resolution
Signal: 0 to 6,000 6lx Resolution
Signal: 0 to 150,000 150lx Resolution
ADC resolution: 12 bit
Max Sample Rate (S/sec): 100 for illumination 3000 for signal
Please note: A connection between your sensors and hardware is required. You can choose from the USB Module, WiFi Module, RF Module, or Display Module. A Battery Module is also required for any connection other then USB Module, which is powered through the cable. View the Neulog Connection Interface Group for accessories.
Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.
