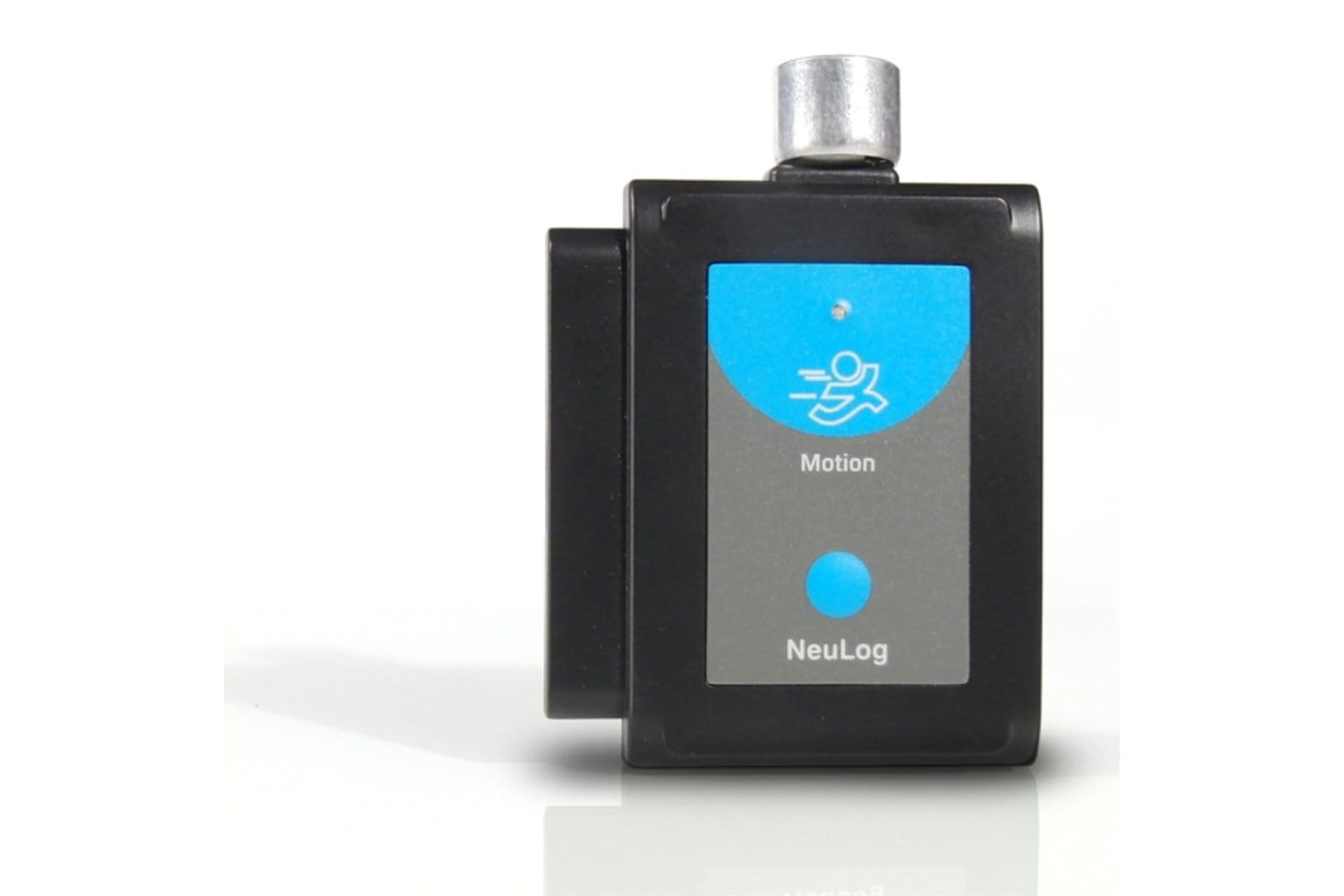

Neulog Motion Sensor NUL-213

Item # NL-2130

Neulog

NL-2130

18111764365385

$79.99
In Stock

This sensor uses an ultrasonic transducer to transmit an ultrasonic wave and measure the time of the echo return. In this way, the sensor measures the distance to an article located against it.

-
+

This sensor uses an ultrasonic transducer to transmit an ultrasonic wave and measure the time of the echo return. In this way, the sensor measures the distance to an article located against it.

Using the module software, it is able to calculate also the item velocity and acceleration.

The sensor has three modes of operations: Distance, Velocity and Acceleration.

Specifications:
Experiment Duration: 1 second to 31 days.
Range and operation modes:
- Distance: 0.2 to 10.0m (long) 0.15 to 2.0m (short)
- Velocity: ± 10 m/s
- Acceleration: ± 100 m/s²
ADC resolution: 13 bit
Resolution:
- 1 mm distance
- 0.14 m/s (long) 0.48 m/s (short) velocity
- 0.02 m/s² (long) 2.3 m/s² (short) acceleration
Max Sample Rate (S/sec): 100

Note:
A connection between your sensors and hardware is required. You can choose from the USB Module, Wifi Module, RF Module, or Display Module. A Battery Module is also required for any connection other then USB Module, which is powered through the cable.

Products being sold are not toys. They are for Educational / Labratory use only. They are not for use by children 12 and under.
