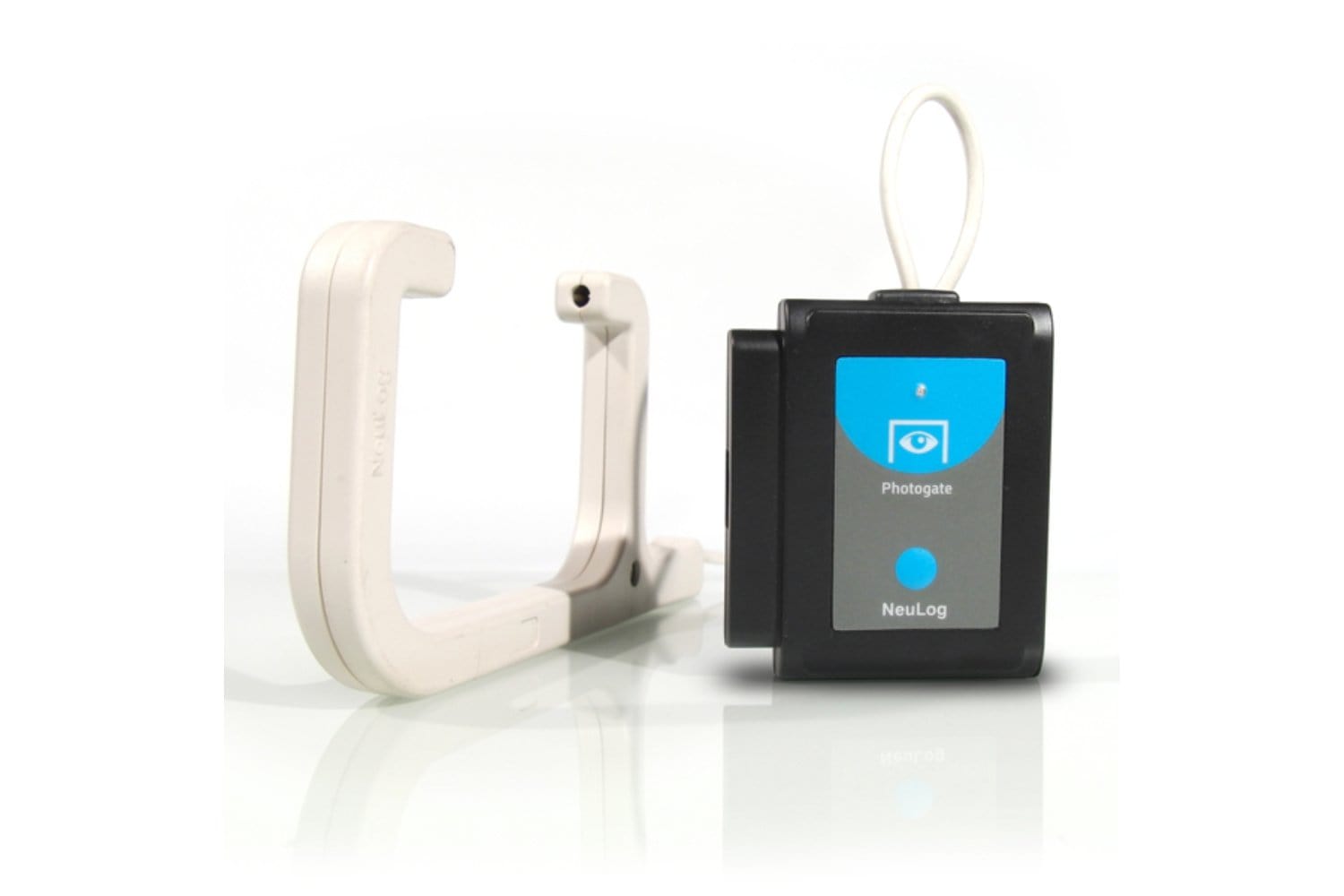

This sensor can be used to study various kinds of motion. With four modes of operation, time, velocity or acceleration can be measured with one or two photo gates and associated timing cards, as well as showing pictorially the status (digital 1 or 0) of the voltage output of the photo gate as timing cards pass through it.

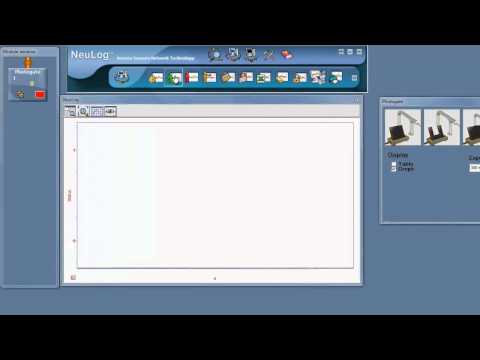

The modes of operation are selected by clicking on the relevant picture.

The measured values can be display digitally or graphically.

The sensor has five modes of operations:
1) Time and Velocity mode
2) Acceleration with single photo-gate
3) Acceleration with two photo-gates
4) Velocity and Momentum with two photo-gates
5) Status graph mode

Specifications:
Range and operation modes:
Single timing card with one photo gate
Double timing card with one photo gate
Single timing card with two photo gates
Digital status with one photo gate
ADC resolution: 16 bit digital
Accuracy: 100 μS
Resolution: 100 μS
Max Sample Rate (S/sec): 100,000

Please note: A connection between your sensors and hardware is required. You can choose from the USB Module, WiFi Module, RF Module, or Display Module. A Battery Module is also required for any connection other then USB Module, which is powered through the cable. View the  Neulog Connection Interface Group  for accessories.
