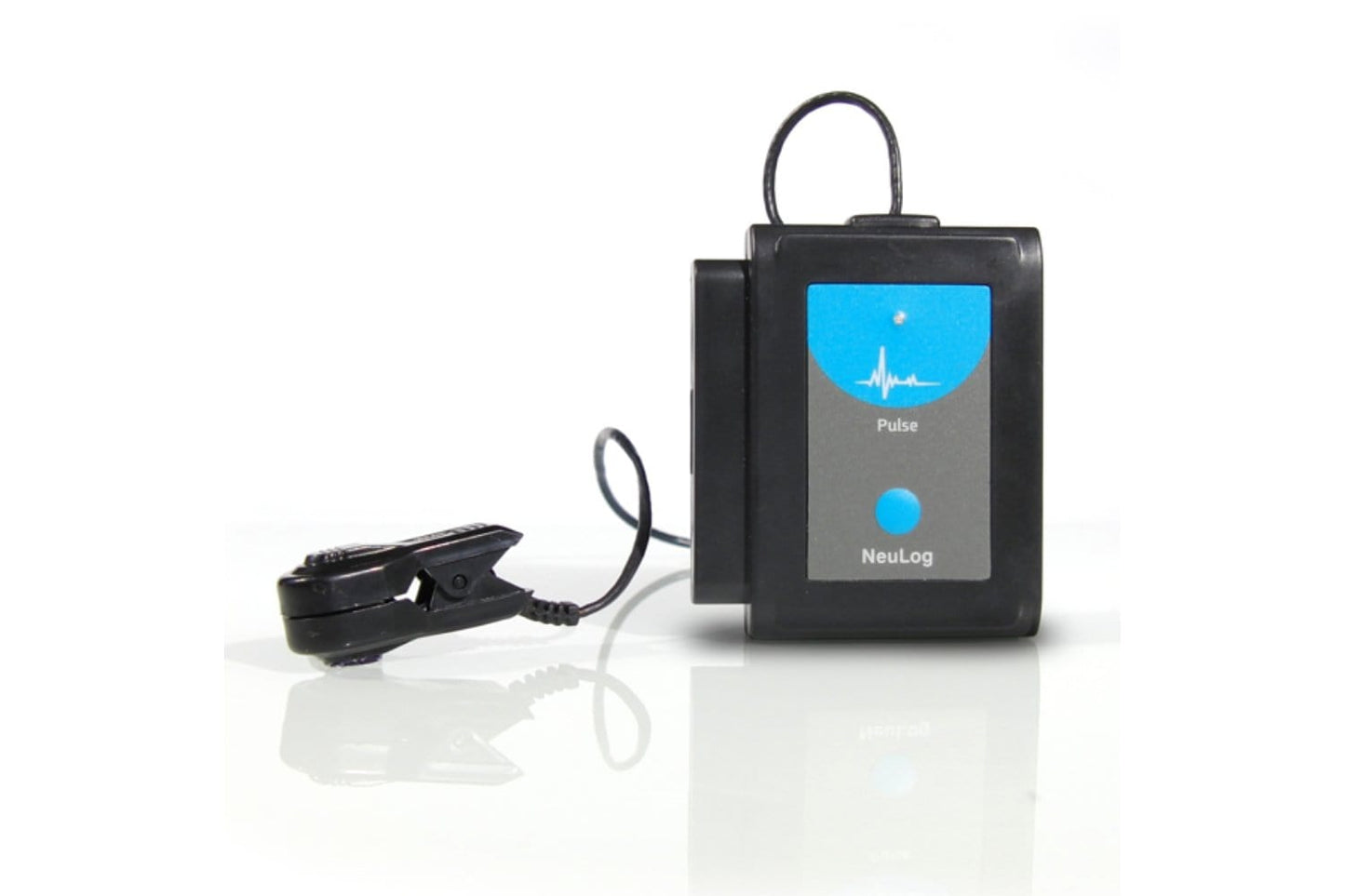

Neulog Pulse Sensor NUL-208
Item # NL-2080
This Heart rate & Pulse sensor can be used to monitor and compare pulse rates under various exercise and rest conditions and to compare the “normal' and "after exercise" pulse rates.
This sensor can be used to monitor and compare pulse rates under various exercise and rest conditions and to compare the “normal' and "after exercise" pulse rates. Additionally, it can show how blood volume/flow rates in the finger or ear lobe vary with time.
The sensor has two modes of operation: measuring the BPM (Bits Per Minute) of the heart rate or displaying the analog arbitrary value of the measured signal.
The electrodes are both plethysmograph-based and so record changes in blood volume/flow. The sensors consist of an infrared LED transmitter and a matched infrared phototransistor receiver.
For best results, the sensor should be kept away from direct sunlight and high intensity lights.
Experiment Duration:1 second to 31 days.
Range and operation modes:
0 to 240 BPM
0-1024 Analog Values
ADC resolution: 10 bit
Max Sample Rate (S/sec): 100 (bpm)
Please note: A connection between your sensors and hardware is required. You can choose from the USB Module, WiFi Module, RF Module, or Display Module. A Battery Module is also required for any connection other then USB Module, which is powered through the cable. View the Neulog Connection Interface Group for accessories.
Products being sold are not toys. They are for Educational / Labratory use only. They are not for use by children 12 and under.
