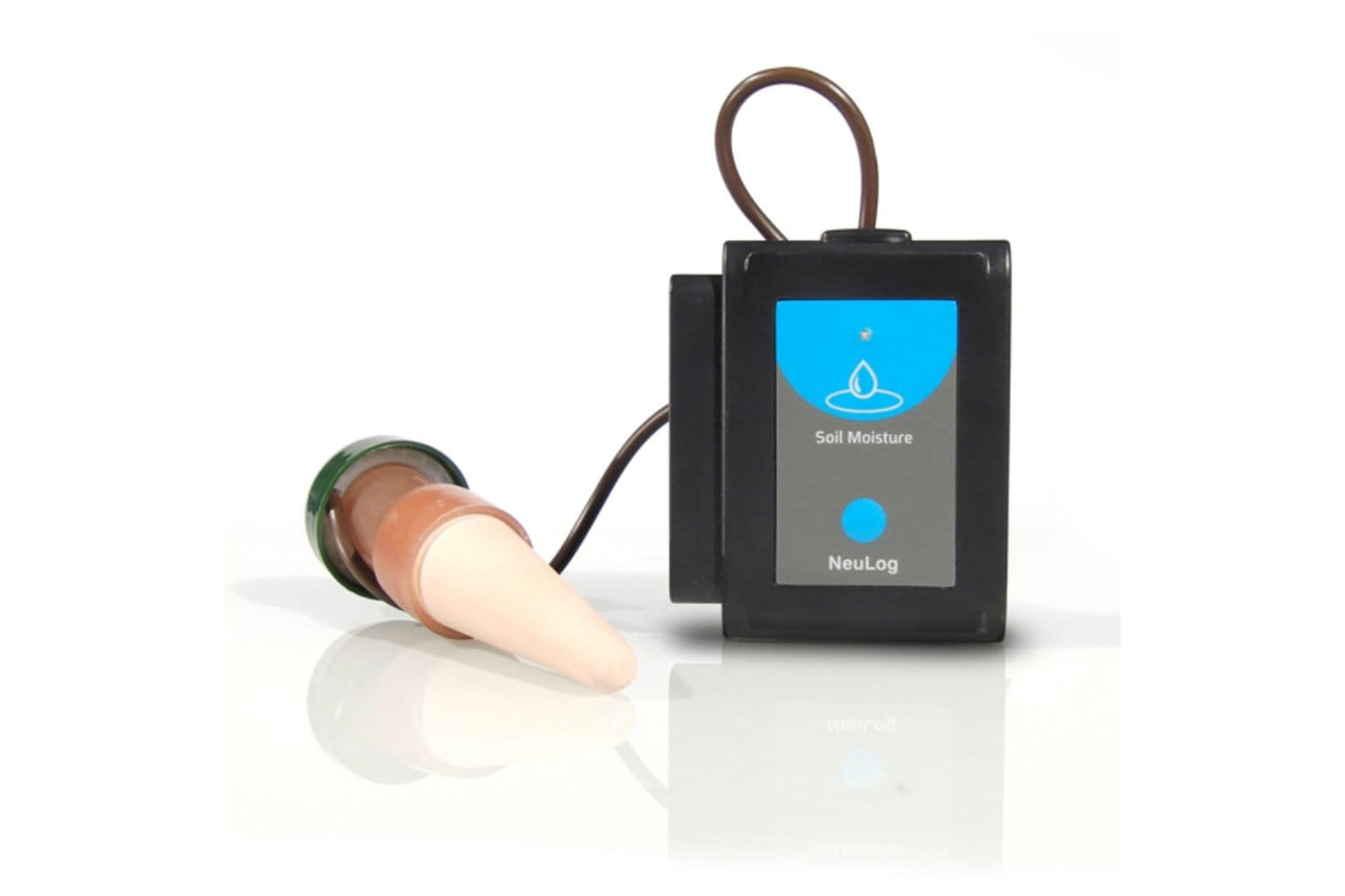

Neulog Soil Moisture Sensor NUL-229

Item # NL-2290

Regular price $124.95
Regular price Sale price On Sale $124.95
Sold out
Shipping calculated at checkout.

This logger sensor is based on measuring the vacuum pressure in a tensiometer.

Temporarily Out of Stock

Order now and we'll deliver when available.

Other Options

Order
Qty
Price Qty for
Discount
Discount
Price
Total
Savings
Neulog Barometer Sensor NUL-221 Neulog Barometer Sensor NUL-221 Item # NL-2210
$92.95
Neulog Drop Counter Sensor NUL-223 Neulog Drop Counter Sensor NUL-223 Item # NL-2230
$111.95
Neulog Flow Rate Sensor NUL-224 Neulog Flow Rate Sensor NUL-224 Item # NL-2240
$146.95
Neulog Galvanic Skin Response (GSR) Sensor NUL-217 Neulog Galvanic Skin Response (GSR) Sensor NUL-217 Item # NL-2170
$112.95
Neulog Hand Dynamometer Sensor NUL-237 Neulog Hand Dynamometer Sensor NUL-237 Item # NL-2370
$159.95
Neulog Humidity Sensor NUL-207 Neulog Humidity Sensor NUL-207 Item # NL-2070
$84.95
Neulog Infrared Thermometer Sensor NUL-235 Neulog Infrared Thermometer Sensor NUL-235 Item # NL-2350
$211.95
Neulog Light Sensor NUL-204 Neulog Light Sensor NUL-204 Item # NL-2040
$69.95
Neulog Oxygen Sensor NUL-205 Neulog Oxygen Sensor NUL-205 Item # NL-2050
$249.95
Neulog Pressure Sensor NUL-210 Neulog Pressure Sensor NUL-210 Item # NL-2100
$94.95
Neulog Pulse Sensor NUL-208 Neulog Pulse Sensor NUL-208 Item # NL-2080
$79.95
Neulog Salinity Sensor NUL-228 Neulog Salinity Sensor NUL-228 Item # NL-2280
$99.95
Neulog Spirometer Sensor NUL-216 Neulog Spirometer Sensor NUL-216 Item # NL-2160
$175.95
Neulog Surface Temperature Sensor NUL-233 Neulog Surface Temperature Sensor NUL-233 Item # NL-2330
$39.95
Neulog Temperature Sensor NUL-203 Neulog Temperature Sensor NUL-203 Item # NL-2030
$49.95
Neulog Turbidity Sensor NUL-231 Neulog Turbidity Sensor NUL-231 Item # NL-2310
$129.95
Neulog UVA Sensor NUL-232 Neulog UVA Sensor NUL-232 Item # NL-2320
$119.95
Neulog UVB Sensor NUL-230 Neulog UVB Sensor NUL-230 Item # NL-2300
$112.95

Additional Details

This logger sensor is based on measuring the vacuum pressure in a tensiometer. A tensiometer is a closed tube with a special ceramic part in its end. The tensiometer is filled with water and put in the soil. If the soil is dry, water goes out by diffusion through the ceramic holes and vacuum pressure is created in the tensiometer. When we wet the soil, the vacuum in the tensiometer pulls water into the tensiometer and the vacuum decreases. This is why soil moisture is measured in pressure level.

Specifications:
Experiment Duration: 1 second to 31 days.
Range and operation modes:
-20-50 cBar
-20-50 kPa
ADC resolution: 15 bit
Resolution:
0.01 cBar
0.01 kPa
Max Sample Rate (S/sec): 100

Please note: A connection between your sensors and hardware is required. You can choose from the USB Module, WiFi Module, RF Module, or Display Module. A Battery Module is also required for any connection other then USB Module, which is powered through the cable. View the  Neulog Connection Interface Group  for accessories.

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.
