Additional Details
The PocketLab Voyager is packed with 10 sensors to meet all your lab needs and is perfect for both in and out-of-classroom experiments!

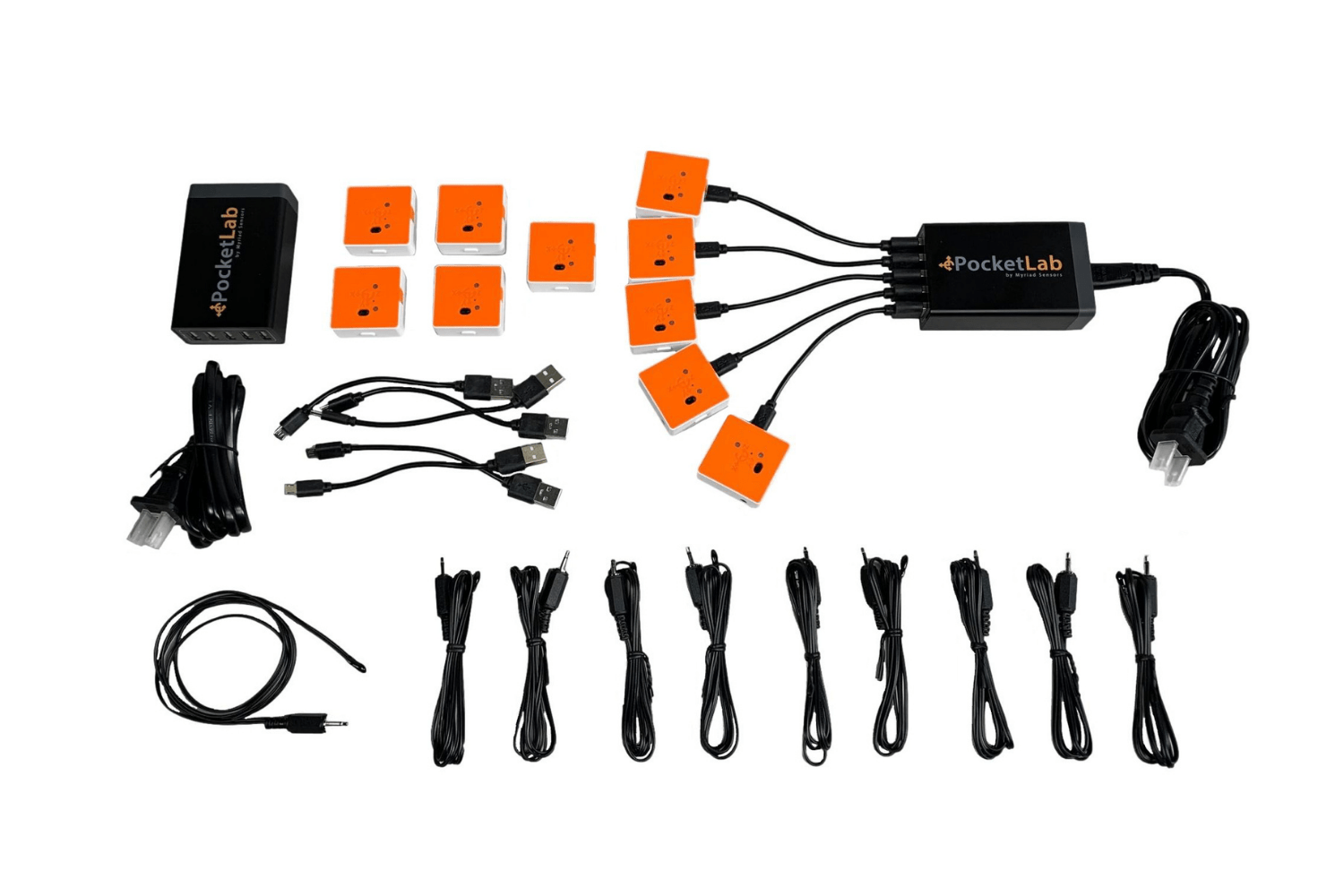

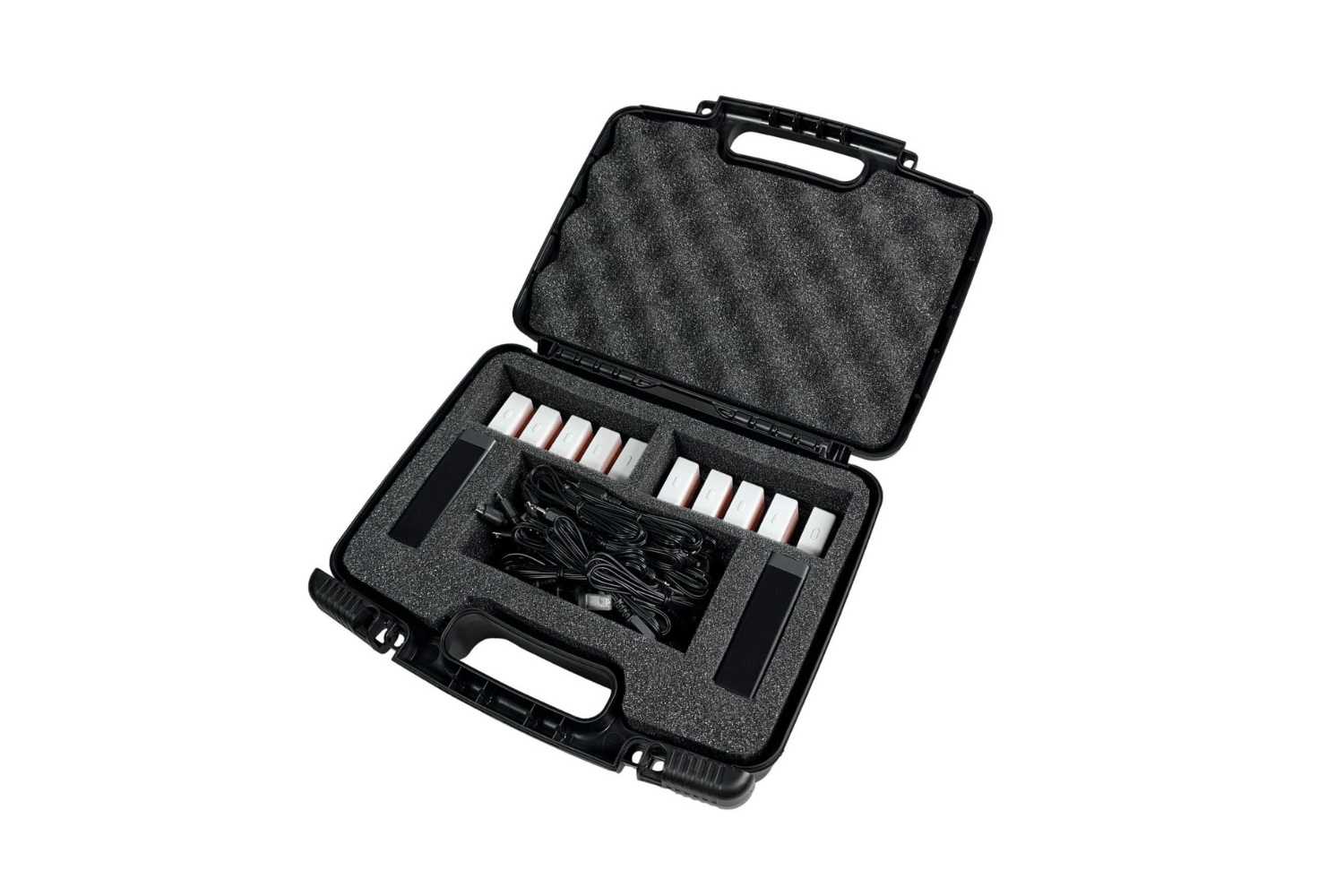

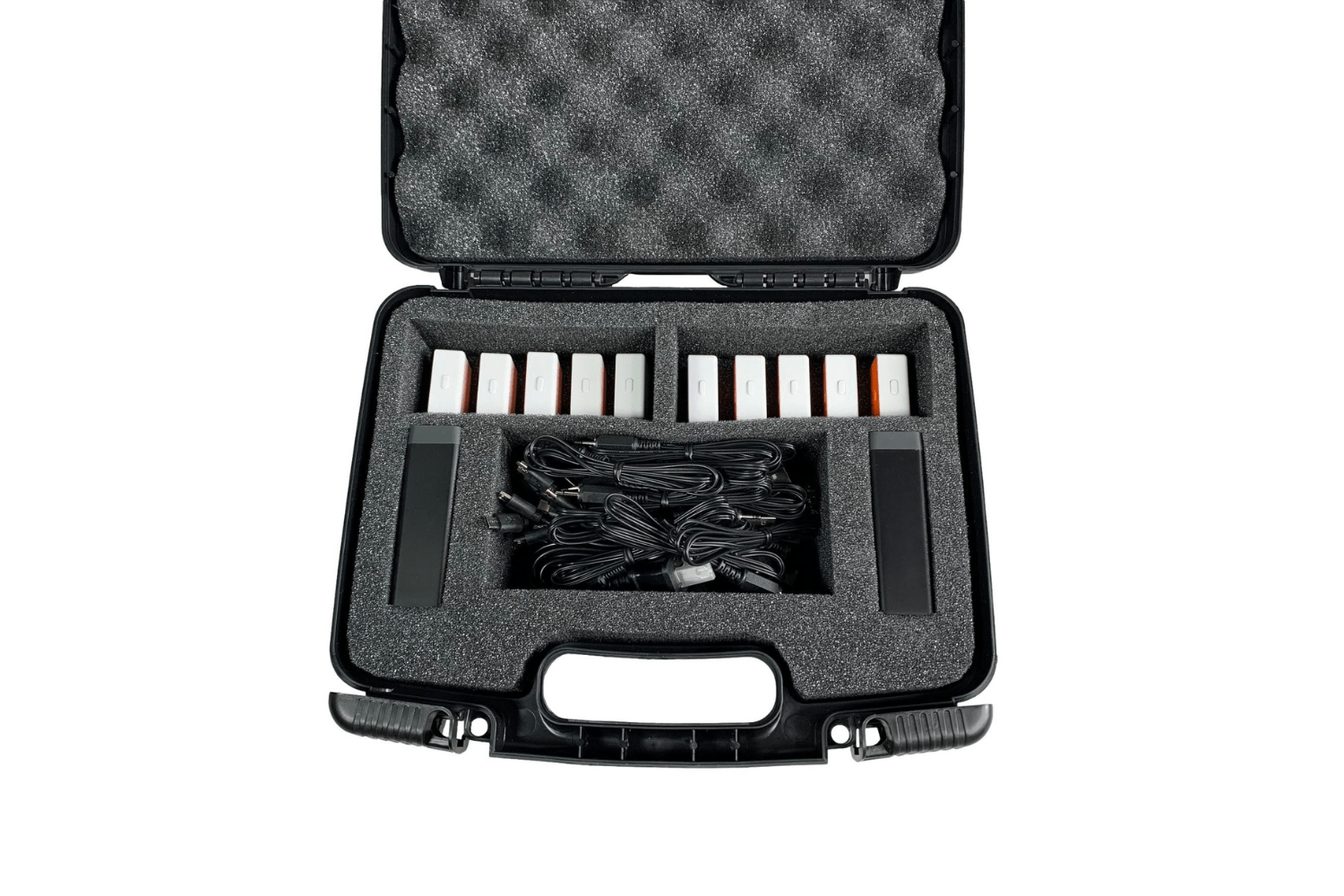

Pocketlab classroom set comes with 10 PocketLab Voyagers, 2 charging stations with 5 ports each, 10 micro-USB cables, 10 Voyager Temperature Probes, and a durable carrying case.
PocketLab Voyager is an all-in-one wireless sensor that connects with a single button to an iOS or Android, smartphone or tablet. You can even connect it to a Google Chromebook or Windows 10 device using Bluetooth 4.0.
These are all the sensors found inside a PocketLab Voyager:
- IR Rangefinder
- Motion
- Acceleration
- Angular Velocity
- Magnetic Field
- Altitude
- Temperature
- Humidity
- Barometric Pressure
- Light Intensity
Attach the Voyager to a Constant Velocity Car or an Air Powered Projectile and watch data display and record in real-time on your device. You can analyze your data online through the PocketLab cloud and export your data in CSV format to integrate into programs like Excel or Google Docs.
These external sensors can be connected to the PocketLab Voyager (Sold Separately):
- Pocketlab Voyager Tactile Pressure Sensor (P4-1025)
PocketLab Warranty:
PocketLab Sensors carry a three-year limited warranty. During the warranty period, Myriad Sensors will replace the item if there is a defect in materials or workmanship. The warranty does not cover abuse, neglect, accident, or products altered outside of the manufacturing factory. Rechargeable batteries are covered for one year. Contact mail@arborsci.com for any warranty questions.
Observe the differences between the voyager and voyager 2 HERE
Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.
What’s Included
- 10 PocketLab Voyagers
- 2 Charging stations with 5 ports each
- 10 Micro-USB cables
- 10 Voyager Temperature Probes
- 1 Durable carrying case
Features & Specs
Features
- Stream data in real-time then analyze the recorded data in PocketLab Notebook
- Compatible with iOS, Android, Chrome OS, Windows 10, Linux, and Mac OS
- Bluetooth 4.0 wireless connection
- Record thousands of measurements to the onboard memory
- Rechargeable battery
POCKETLAB VOYAGER SPECIFICATIONS
- Battery Life: 8 hrs (wireless, full data rate), 12 hrs (low power, logging mode)
- Wireless Range: 250 ft Line-of-Sight
- Memory: 30,000 Data Readings
- Durability: 2 m (6 ft) drop protection
- Dimensions: 3.8 x 3.8 x 1.5 cm (1.5 x 1.5 x .06 in)
SENSOR SPECIFICATIONS
Accelerometer
- Range: ± 16g
- Resolution: 0.008 g @ 94 Hz
- Data Rate:- 50 samples/sec (real-time)- 200 samples/sec (coming soon in burst mode)
Gyroscope
- Range: ± 2000 deg/sec
- Resolution: 0.1 deg/sec @ 92 Hz
- Data Rate:- 50 samples/sec (real-time)- 200 samples/sec (coming soon in burst mode)
Magnetometer
- Range: ± 4800 uT
- Resolution: 0.15 uT
- Data Rate: 50 samples/sec
Altitude
- Range: -5,300 - 9,500 m (-17,400 - 31,000 ft)
- Resolution: 11 cm (4 in)
- Absolute Accuracy: 10 m (33 ft)
- Data Rate: 50 samples/sec
IR Range
- Range: 2m typical, 1.5m minimum (indoors)
- Resolution: 1 cm (0.4 in)
- Absolute Accuracy: 5% of reading
- Data Rate: 33 samples/sec
- Field of View: 25 degrees
Barometric Pressure
- Range: 30 - 180 kPa
- Pressure Resolution: 1.3 Pa
- Absolute Accuracy: 0.1 kPa
Humidity
- Range: 0-100 %RH
- Resolution: 0.02 %RH
- Absolute Accuracy: 3 %RH
Light
- Range: 0.01 - 64,000 Lux
- Spectrum: 400 - 1000 nm (Visible light)
- Data Rate: 30 samples/sec
Ambient Temperature
- Range: -40 - 85 C (-40 - 185 F)
- Resolution: 0.01 C (0.02 F)
- Absolute Accuracy: 0.5 C (0.9 F)
Temperature Probe
- Range -40 - 105 C (-40 - 221 F)
- Resolution 0.2 C (0.4 F)
- Absolute Accuracy 0.5 C (0.9 F)
Accessories
Order Qty | Price | Qty for Discount | Discount Price | Total Savings | ||||
---|---|---|---|---|---|---|---|---|
![]() |
Silicone Case for PocketLab Voyager Item # P4-1030 |
|
|
$10.00 | ||||
![]() |
Pocketlab Voyager Tactile Pressure Sensor Item # P4-1025 |
|
|
$34.00 |
Replacements
Order Qty | Price | Qty for Discount | Discount Price | Total Savings | ||||
---|---|---|---|---|---|---|---|---|
![]() |
PocketLab Voyager Temperature Probe Item # P4-1020 |
|
|
$14.00 |
