Projectile Motion for Everyone

Posted on October 11, 2008 by Arbor Scientific There have been 0 comments

Everybody loves the unforgettable, visceral thrill of a rocket launch. Whether it’s the Saturn V with 7.6 million pounds of thrust or a tiny model launched from your backyard, projectile motion can be studied and understood by students of all ages. In fact, many teachers conduct projectile motion demonstrations with water-powered or solid-fuel model rockets.These demos are exciting, but they are not examples of true projectiles! Instead of one initial launch force, they have a timed “burn” while the fuel is spent. With a true projectile, after the initial force, the only thing affecting the flight is gravity. For a pure study of projectile motion, the variables we’re interested in are:

 Launch Force - Gravity - Launch Angle

Air resistance does play a role, but we tend to ignore it for the sake of understanding at the elementary and middle school levels. At the high school level, it may be taken into consideration.

This month, we’ve got some fun activities that help explain the forces involved in rocket flight.

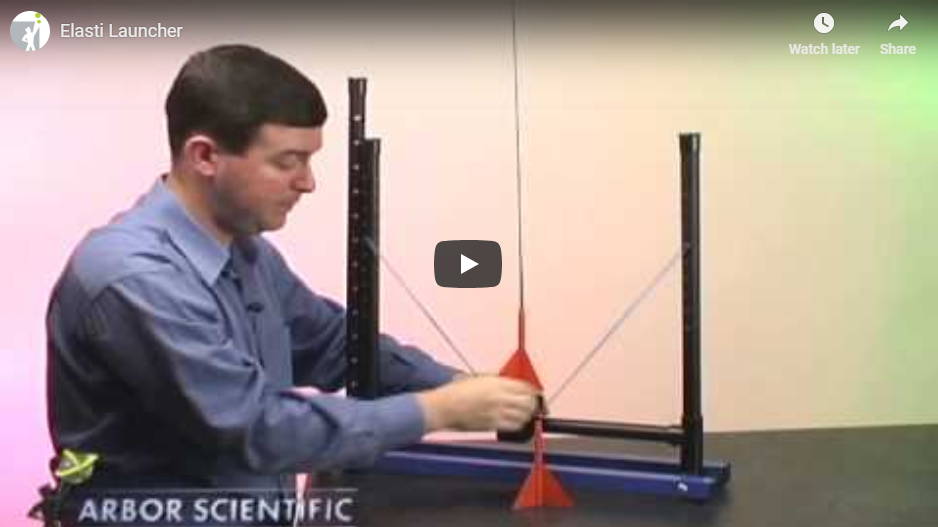

For these exercises, the Elasti-Launcher, is a safe, chemical-free projectile that’s ideally suited for exploring projectile motion. Click the link below to learn more. See the video.

Use the Elasti-Launcher for students to experiment with projectile motion indoors!

Elasti-Launcher

Determining initial velocity

Students launch the projectile vertically and time how long it takes for the projectile to complete the trip up and down. This time is then divided in half to get a good time of the upward portion of the projectile flight. You can then calculate the initial velocity of the projectile by multiplying the time by the rate at which gravity affects a falling object (rounded to 10 m/s for quick calculation).

If our round trip flight, up and down was 6.5 seconds our calculation for initial velocity would be (6.5 ÷ 2) x 10 m/s = 32.5 m/s

See more on projectile motion calculations




Elementary student rocket activity worksheet download.
Middle school student projectile motion activity worksheet download.High school student projectile motion activity worksheet download.

Since 1981, NASA has been using the Space Shuttle for manned spaceflight.That’s about to change. NASA is developing the next generation of manned space vehicle, and for a variety of reasons: safety, reliability, and cost-effectiveness, they’re going back to a single rocket design.The first Ares test launch is scheduled for July 2009, with a manned mission scheduled to launch in Spring 2015. Learn more...

This post was posted in CoolStuff Newsletters, Force & Motion and was tagged with gravity, projectile motion, rocket launch, elasti-launcher
