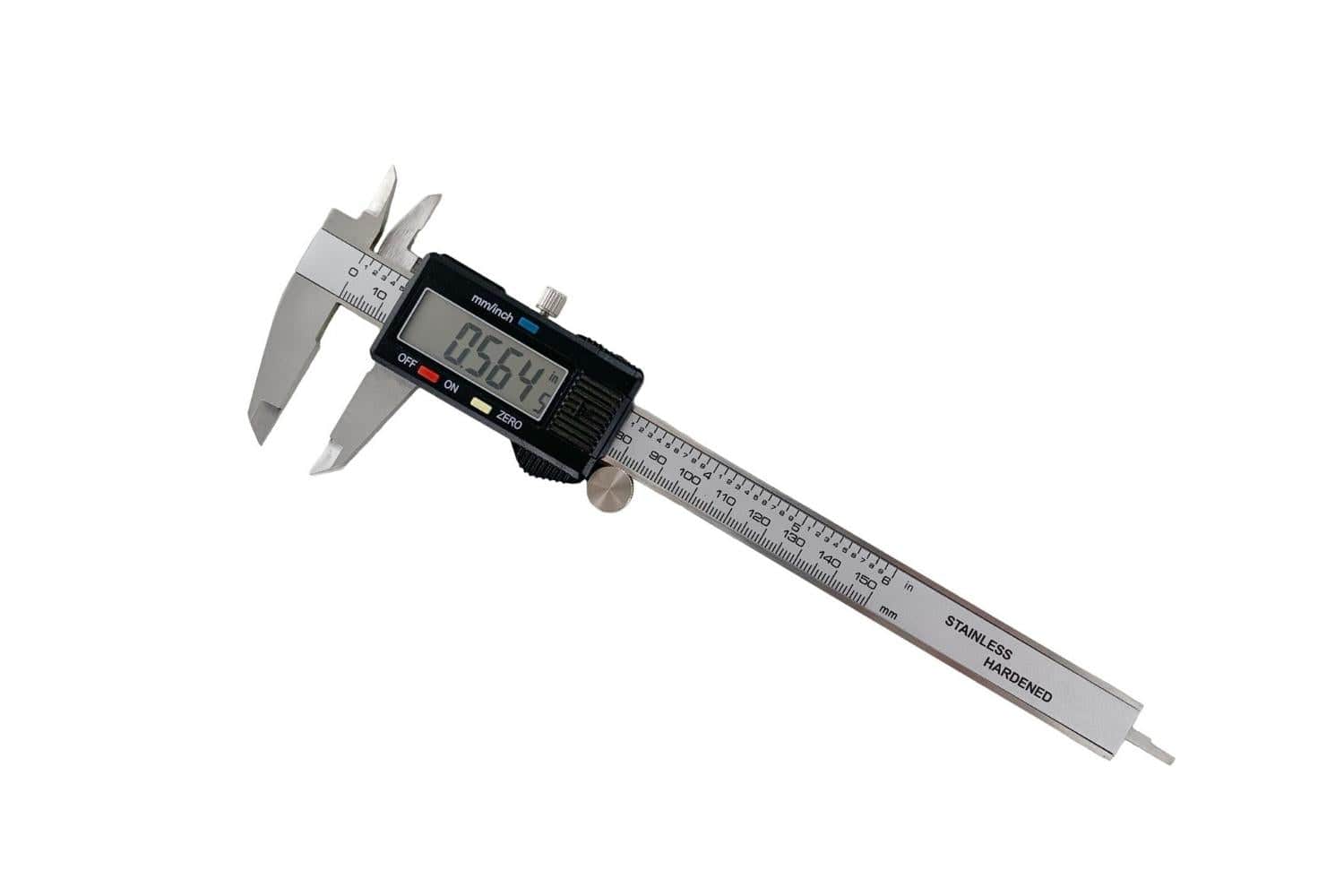

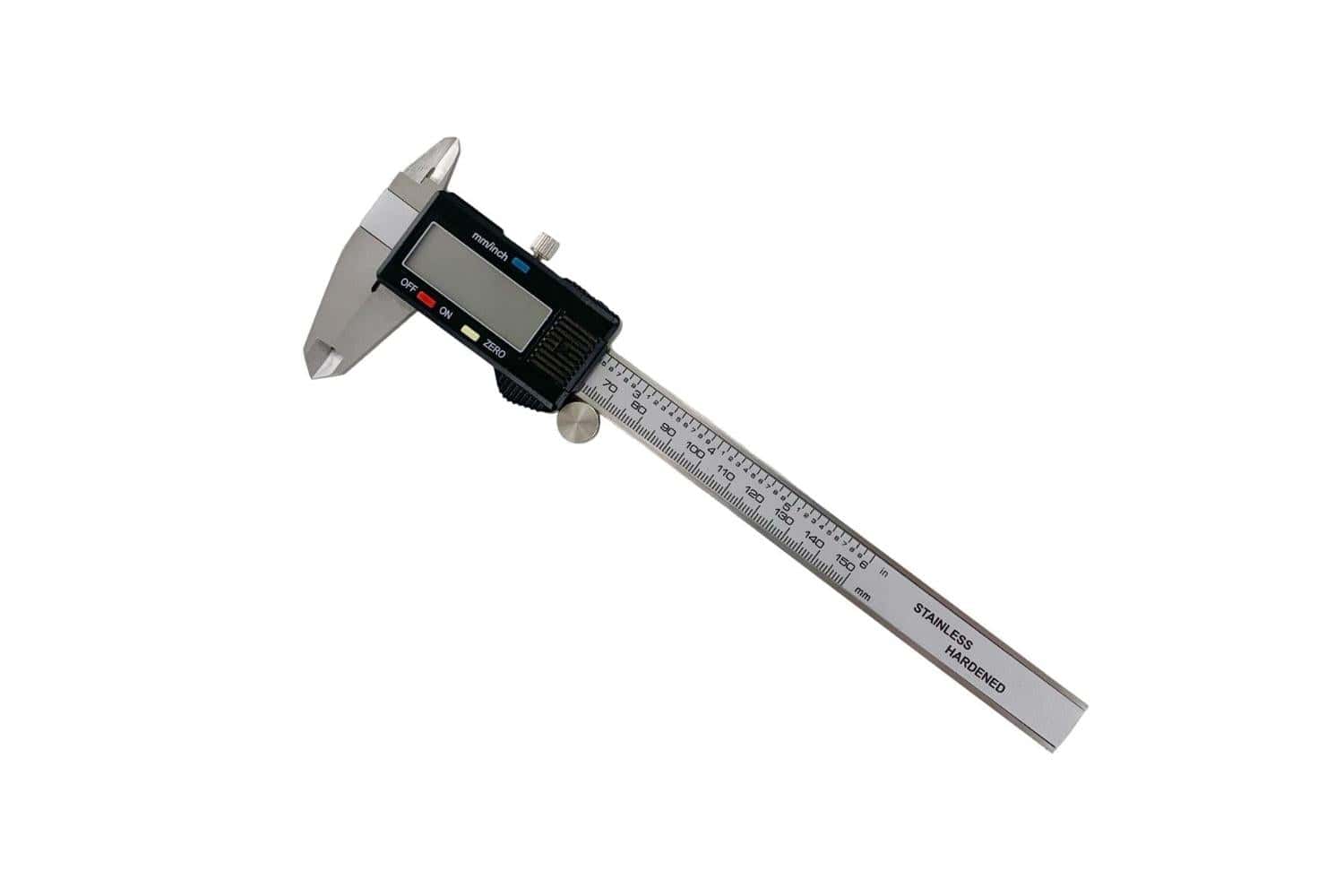

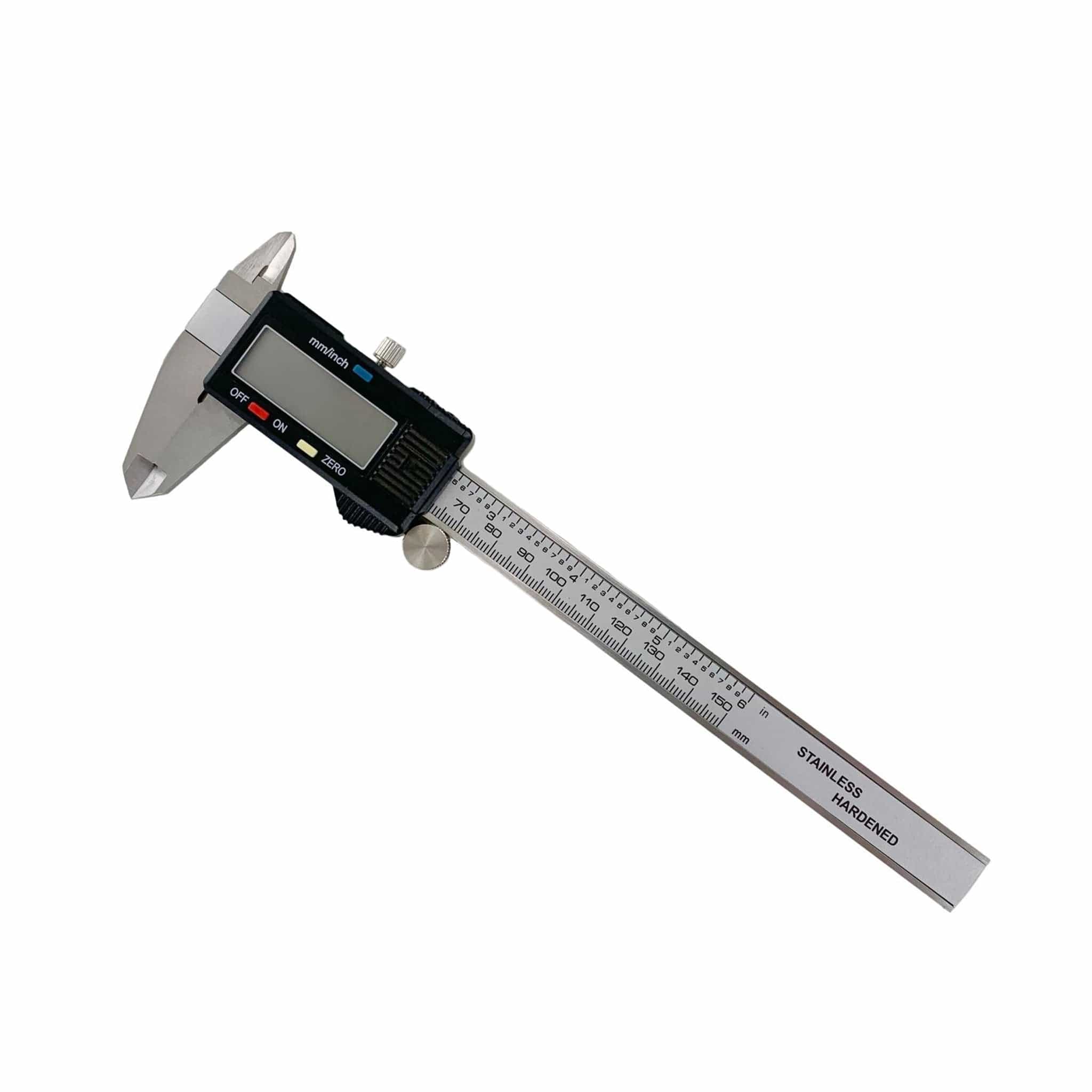

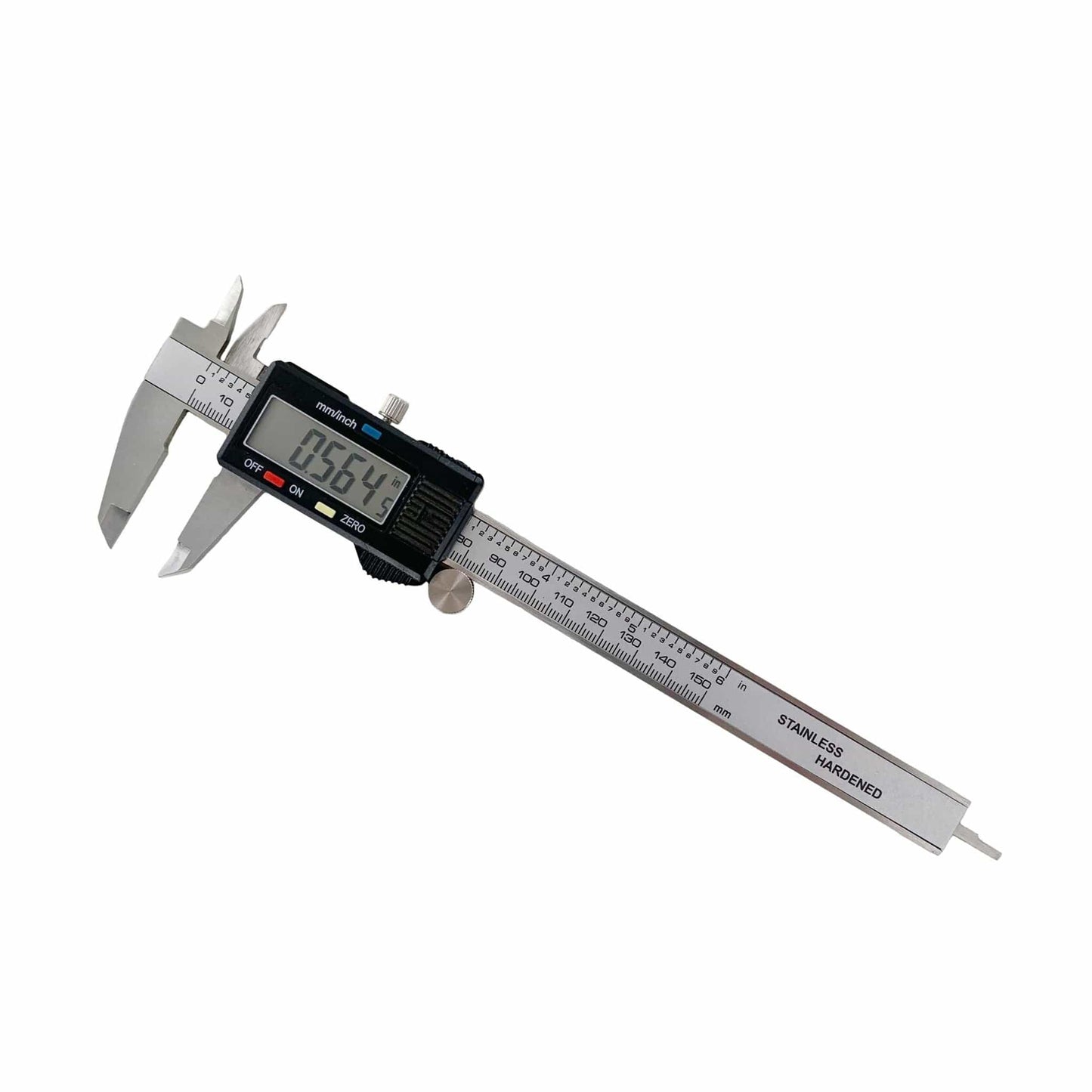

6" Digital Caliper With LCD Display
Item #01-1030
$33.50
Bundle Discount
Reliable digital caliper for detailed lab and project work
The Digital Caliper is a precise, easy-to-use measuring tool designed for accurate, high-resolution measurements in the classroom or lab. Made from hardened stainless steel, this caliper resists scratching and warping while delivering dependable results. With dual metric and imperial scales and the ability to zero the measurement at any point, it supports both absolute and differential measurements with confidence.
Powered by an included LR-44 battery, the Digital Caliper is ideal for projects such as checking manufacturing tolerances of nuts and bolts, measuring 3D-printed models, and collecting high-precision lab data. (Tip: Tighten the lock screw during storage to reduce battery drain.)
Why Teachers Love the Digital Caliper
- High precision: Measures up to 150 mm (6"), calibrated to 0.01 mm / 0.0005 in.
- Versatile measuring jaws: Handles external, internal, step, and depth measurements.
- User-friendly design: Smooth thumb roller, locking screw, and large, easy-to-read LCD screen.
- Flexible measurement modes: Instantly switch between millimeters and inches; zero at any position.
Resources
Resources
Product Details
This digital caliper is made from hardened stainless steel and features external, internal, steps and depth measuring jaws. Smoothly slide along the device with the thumb roller and use the locking screw for accurate positioning. Effortlessly capture precise measurements on the large LCD screen, easily switch between millimeters and inches with the push of a button, and set the digital caliper to zero at any position for differential measurement.
The digital caliper comes in a durable plastic storage case and requires an LR-44 battery (included).
Possible projects include checking hardware manufacturing tolerances for nuts and bolts, determining dimensions of 3D printed models, and taking high-precision measurements of laboratory distance data.
Note: During storage, tighten the lock screw to prevent excessive battery drainage.
Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.
Product Specifications
Specs:
Measuring Range: 0-150 mm/0-6 in, 0-200 mm/0-8 in, 0-300 mm/0-12 in
Resolution: 0.01 mm/ 0.0005 in
Accuracy:
±0.02 mm/0.001 in (<=100 mm)
±0.03 mm/0.001 in (>100 mm-200 mm)
±0.04 mm/0.0015 in (>200 mm-300 mm)
Repeatability: 0.01 mm/0.0005 in
Max Measuring Speed: 1.5 m/sec, 60 in/sec
Measuring System: Linear capacitive measuring system
Display: LCD display
Power: One silver oxide battery 1.55 V, type LR-44, capacity: 180 mAh
Working Temperature: 5 °C-40 °C/41 to 104 degrees F
Influence of Humidity: Not important under 80% of relative humidity
What's Included:
Digital Caliper
LR-44 Battery
