HeNe Modulated Laser

Item # P2-7256

Regular price $830.00
Sold out
Shipping calculated at checkout.

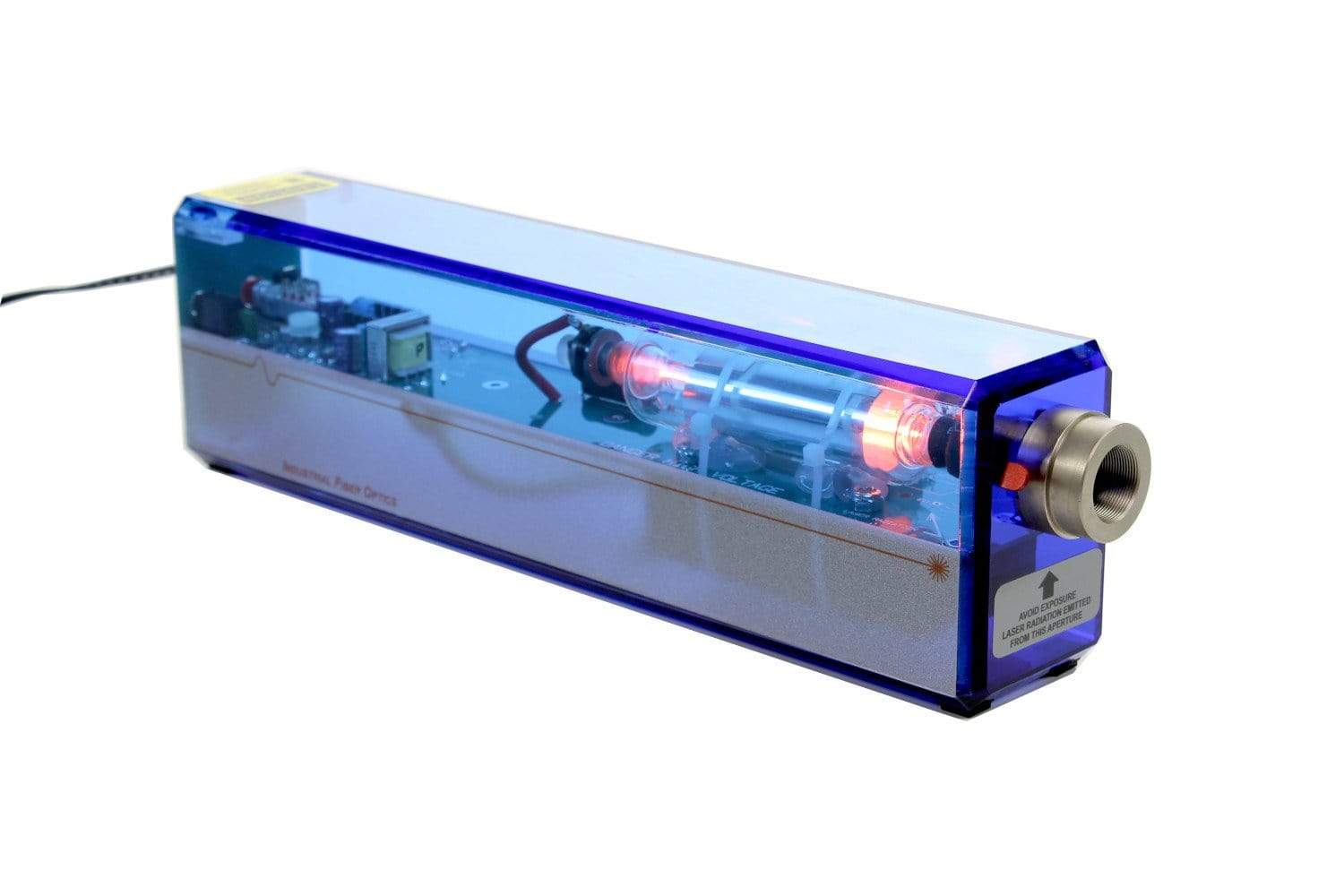

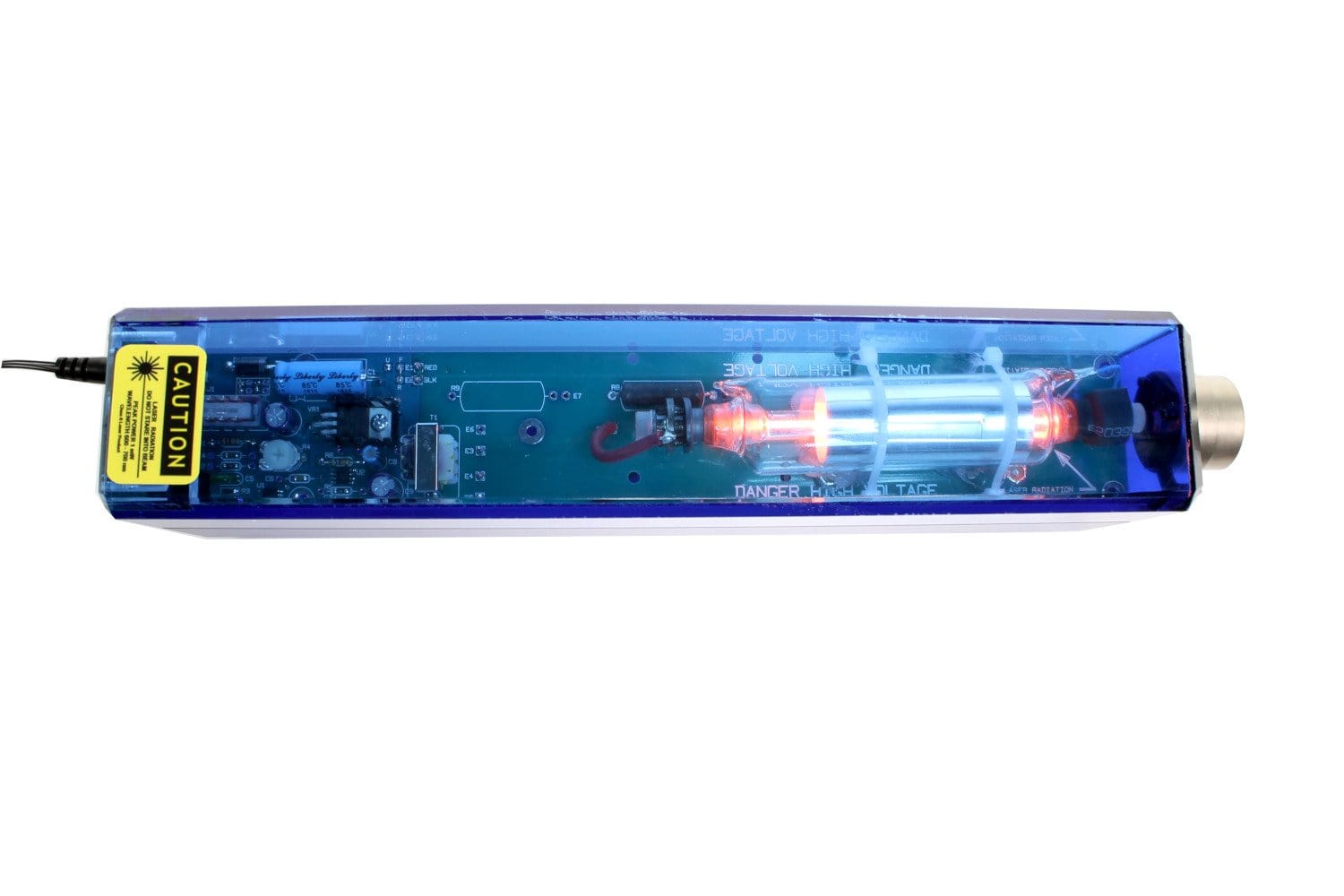

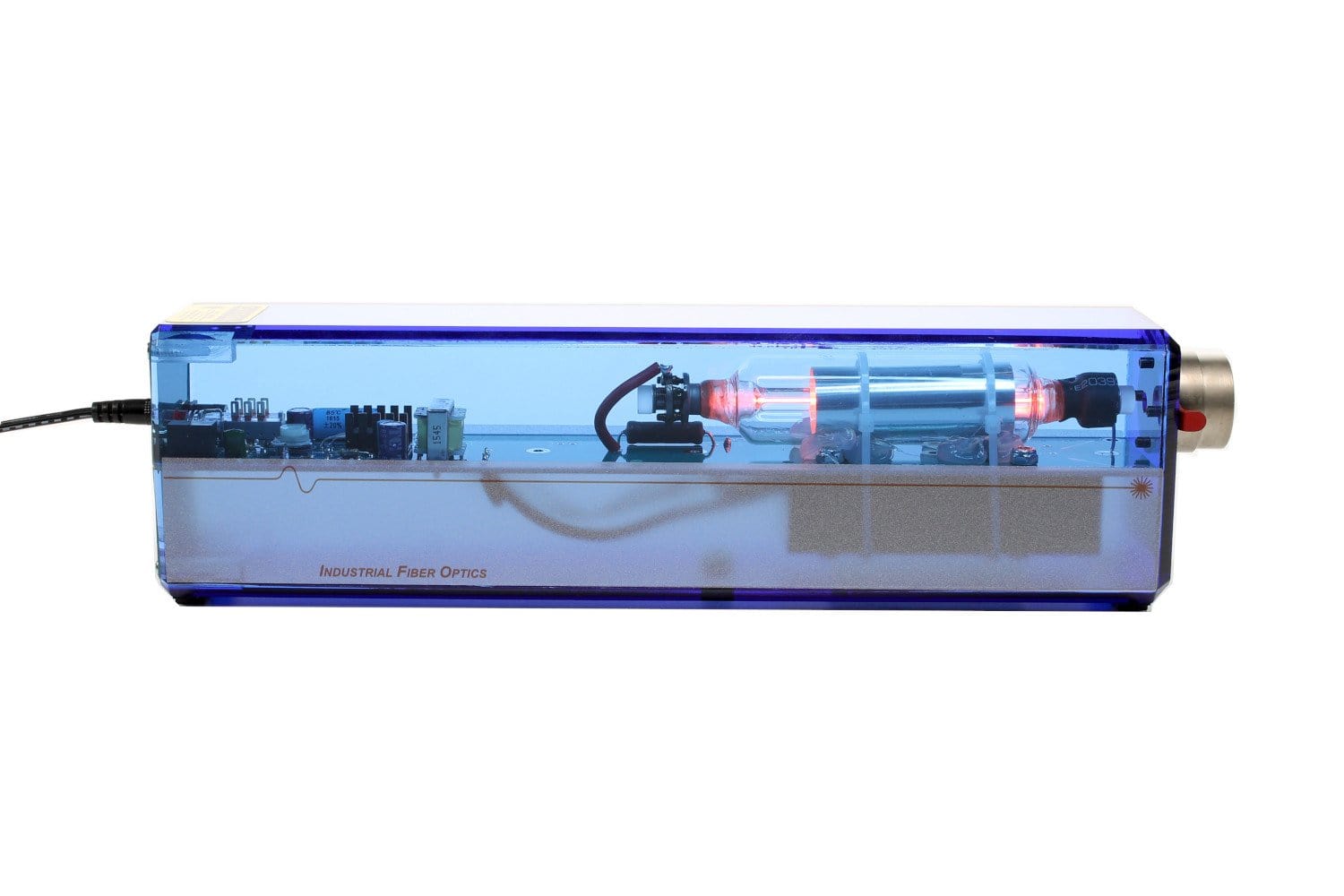

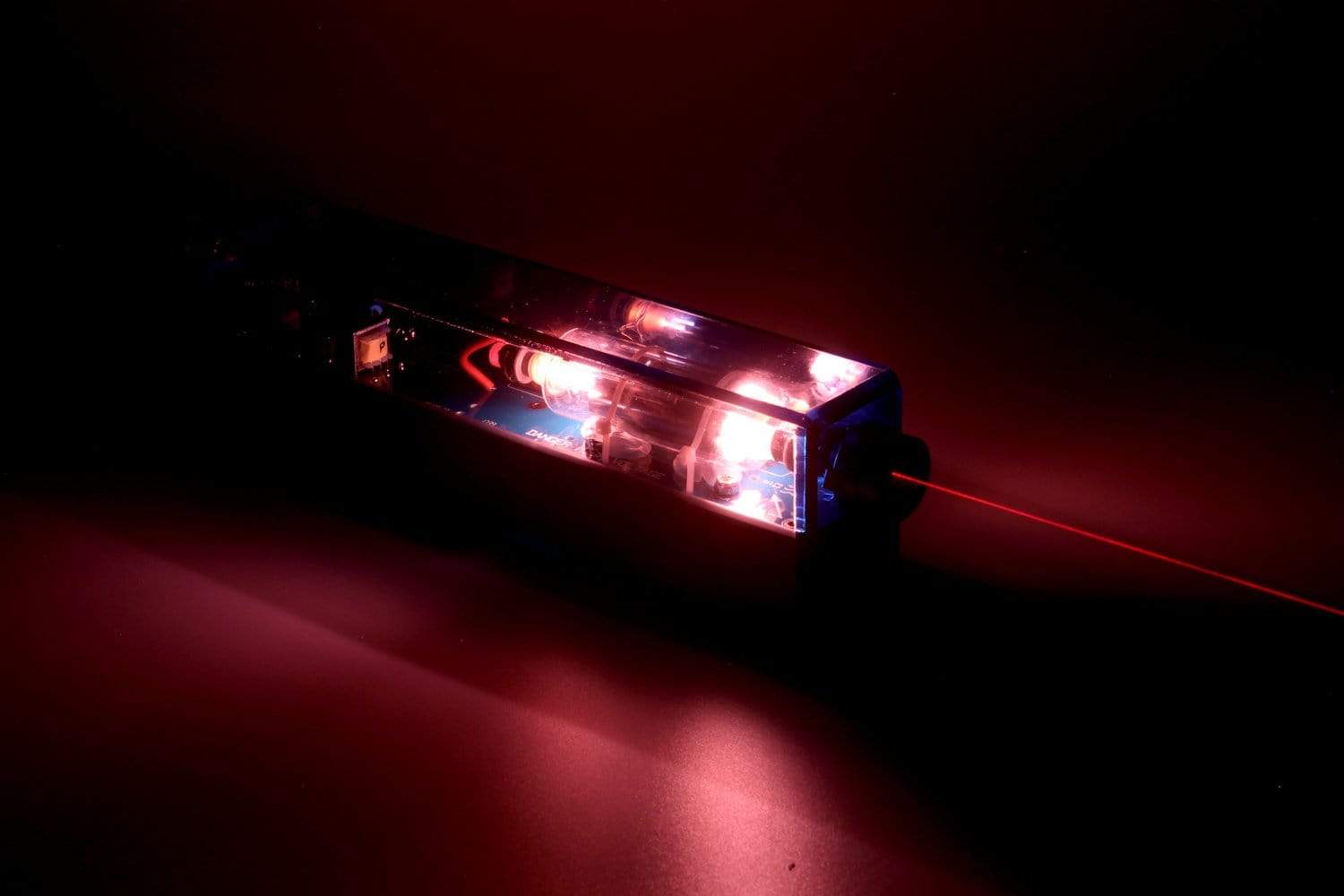

Our unique 0.8mW HeNe red laser is encased in a transparent blue acrylic enclosure so your students can explore optical and laser technology while seeing the laser's hard-sealed plasma tube, power supply, and voice transmission circuitry in action.

WARNING: Cancer & Reproductive Harm -- www.P65Warnings.ca.gov

In Stock

Additional Details

A multi-function laser for basic laser, optical, and data transmission demonstrations!

Our unique 0.8mW HeNe red laser is encased in a transparent blue acrylic enclosure so your students can see the laser's hard-sealed plasma tube, power supply, and internal working components in action. It also features electronic circuits for demonstrating voice/audio (data) transmission over the laser! Simply connect it to our voice transmission package (P2-7025) to send audio signals across the room.

    Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.

    Features & Specs

    Features

    • 0.8mW HeNe red laser
    • Hard-seal laser tube for long dependable life
    • All solid-state electronic design
    • Fool-proof mechanical beam stop
    • Bright laser pilot light
    • Impact-resistant, transparent, two-tone blue acrylic case
    • Threaded mounts for holding lenses, filters, and diffraction gratings
    • Tripod mount - 1/4-20 thread
    • Tamper-resistant screws for safety
    • Rubber feet on chassis bottom for adhesion on slick lab surfaces
    • Full-color operator's manual with safety information and common experiments
    • 120V
    • 60Hz

    Specifications

    CDRH ClassificationClass II
    PolarizationRandom
    Laser Emission ColorRed
    Laser ModeTEM00



    OperatingUnitValue
    Input VoltageV12 to 18
    Input CurrentmA650
    Wavelengthnm632.8
    Optical Output Power, NominalmW0.8 mW /
    Power, (min/max)mW.6 / 1.0
    Beam Diametermm0.47
    Beam DivergencemRad1.00
    Digital ModulationMHzn/a
    Analog ModulationkHz0.6 - 20



    MechanicalUnitValue
    Operating Temperature° C0 - 40
    Housingcm5.8 x 8.7 x 36.2

    Accessories

    Order Qty Price Qty for Discount Discount Price Total Savings
    Laser Voice Transmission Package Laser Voice Transmission Package Item # P2-7025
    $173.25
