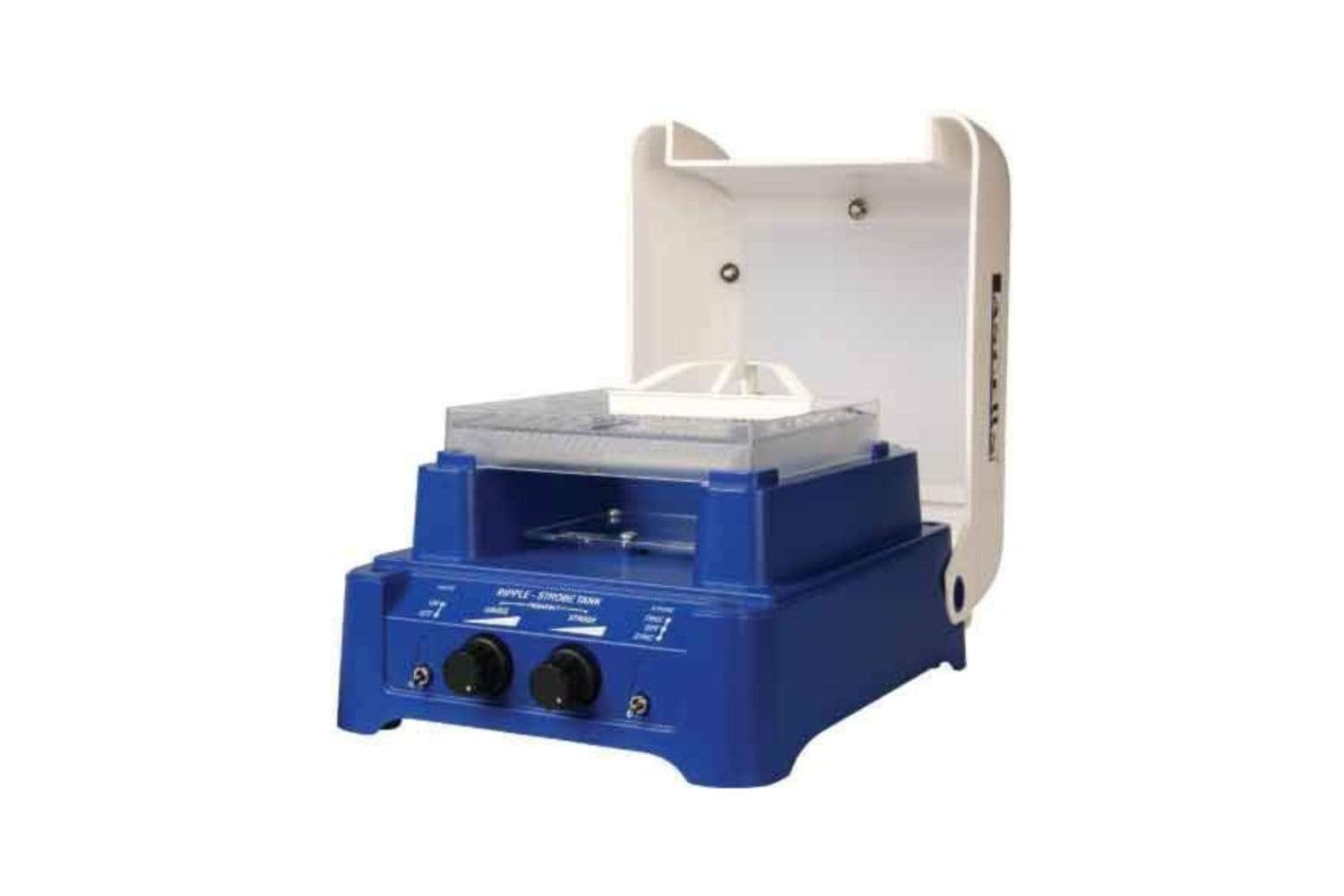

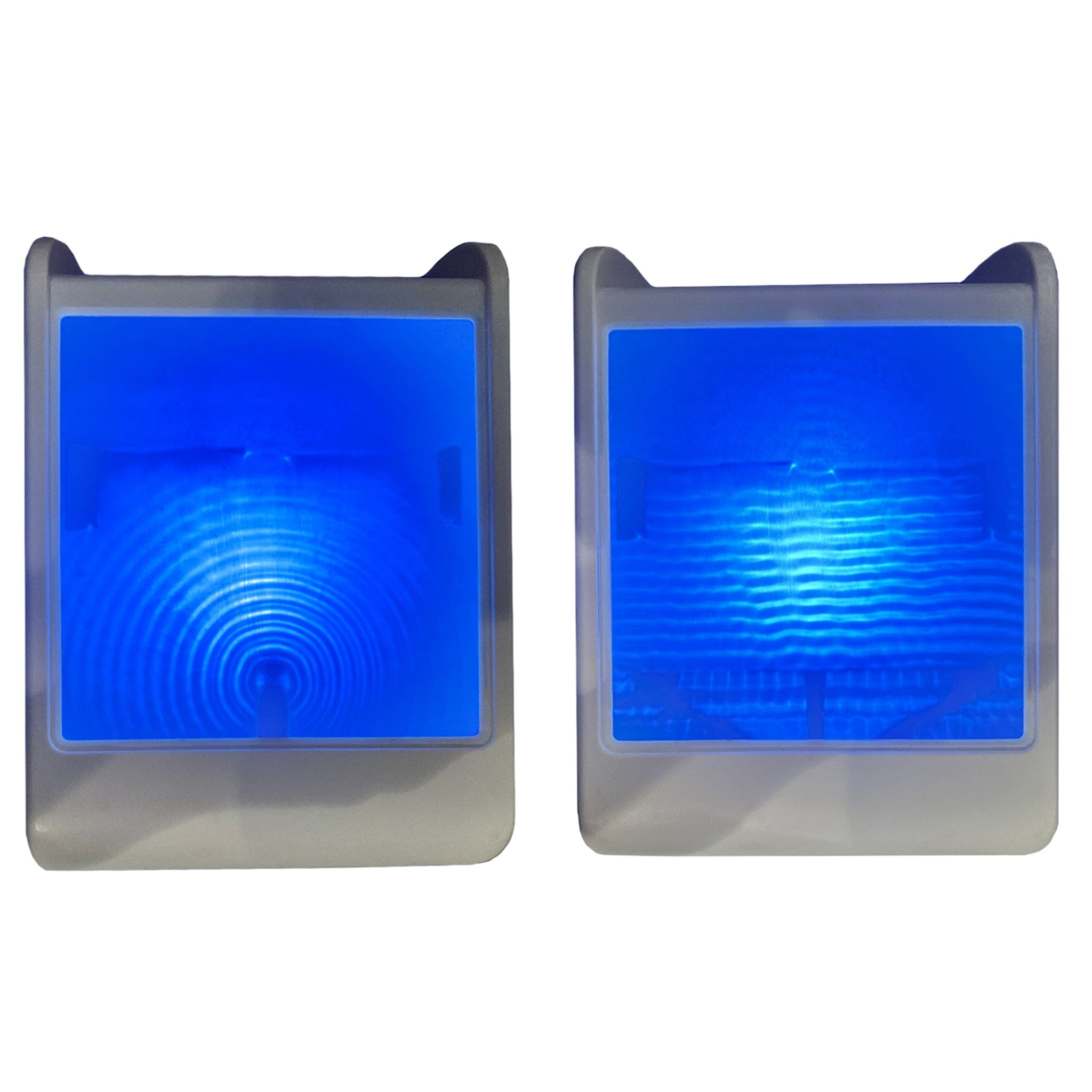

Mini Ripple Tank

Item # PA-8638

Regular price $249.00
Regular price Sale price On Sale $249.00
Sold out
Shipping calculated at checkout.
Buy 6 and pay $229.00 each!

The Mini Ripple Tank provides a simple and effective method to investigate the properties of waves. The tank has settings that allow you to adjust the wave frequency and the frequency of the strobe light showing a broad range of wave patterns.

In Stock

Additional Details

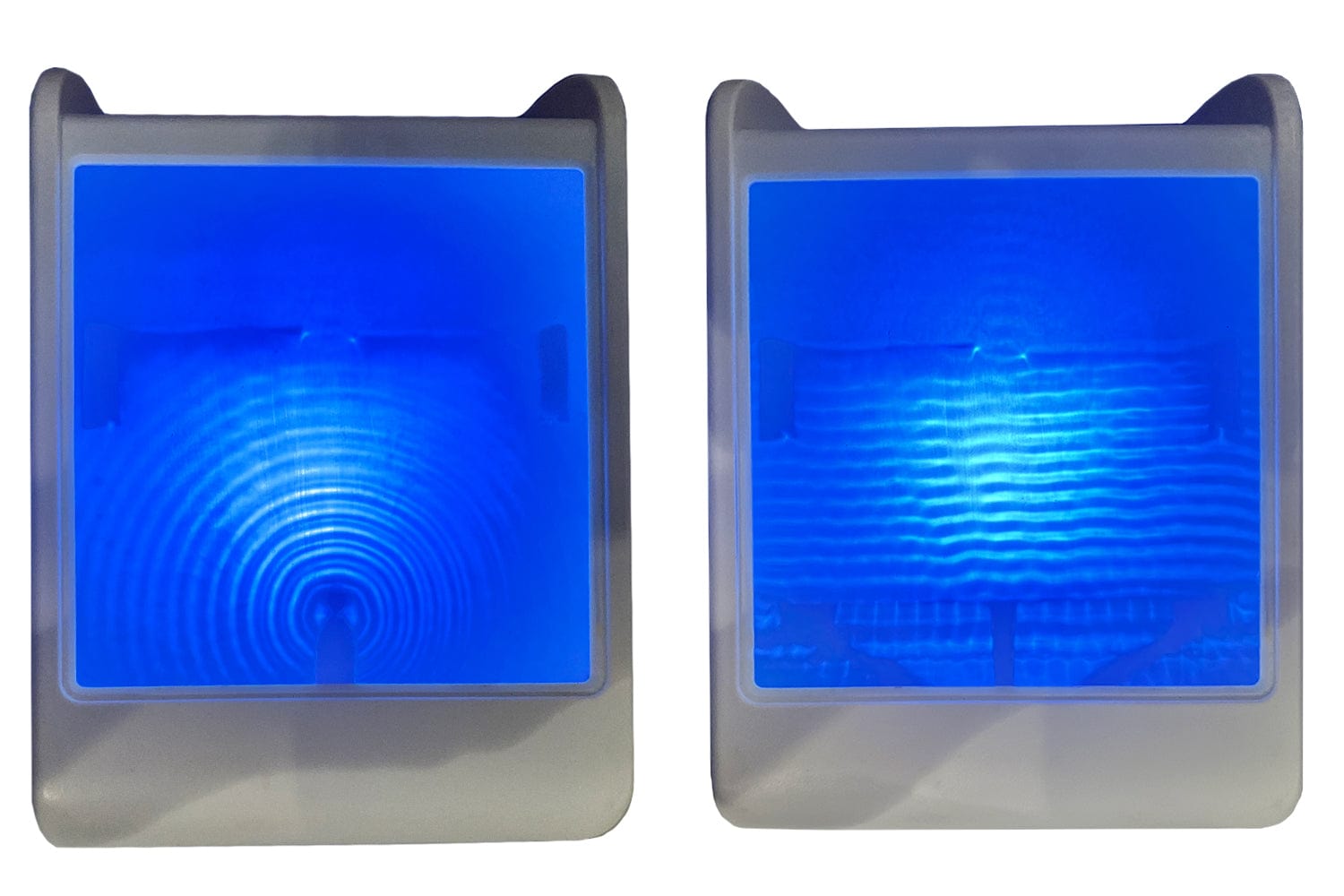

Mini Ripple Tank allows for detailed observation of all aspects of actual moving waves

Ripple tank wave generators are such a wonderful way to demonstrate the wave phenomena of reflection, refraction, diffraction and interference, but they can be time consuming to set up and take down. This Mini Ripple Tank addresses these issues by providing a completely self-contained device, requiring no set-up apart from the addition of water. Illumination is from a high intensity built-in LED which can automatically set the strobe frequency to be in sync with the waves to give perfectly stationary images, or switched to allow the user independent control of the wave and strobe frequencies giving the impression of wave motion across the viewing screen.

    Great for small groups! It is small and portable, making it great for small group demonstrations or stations.

    Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.

    Blog Posts

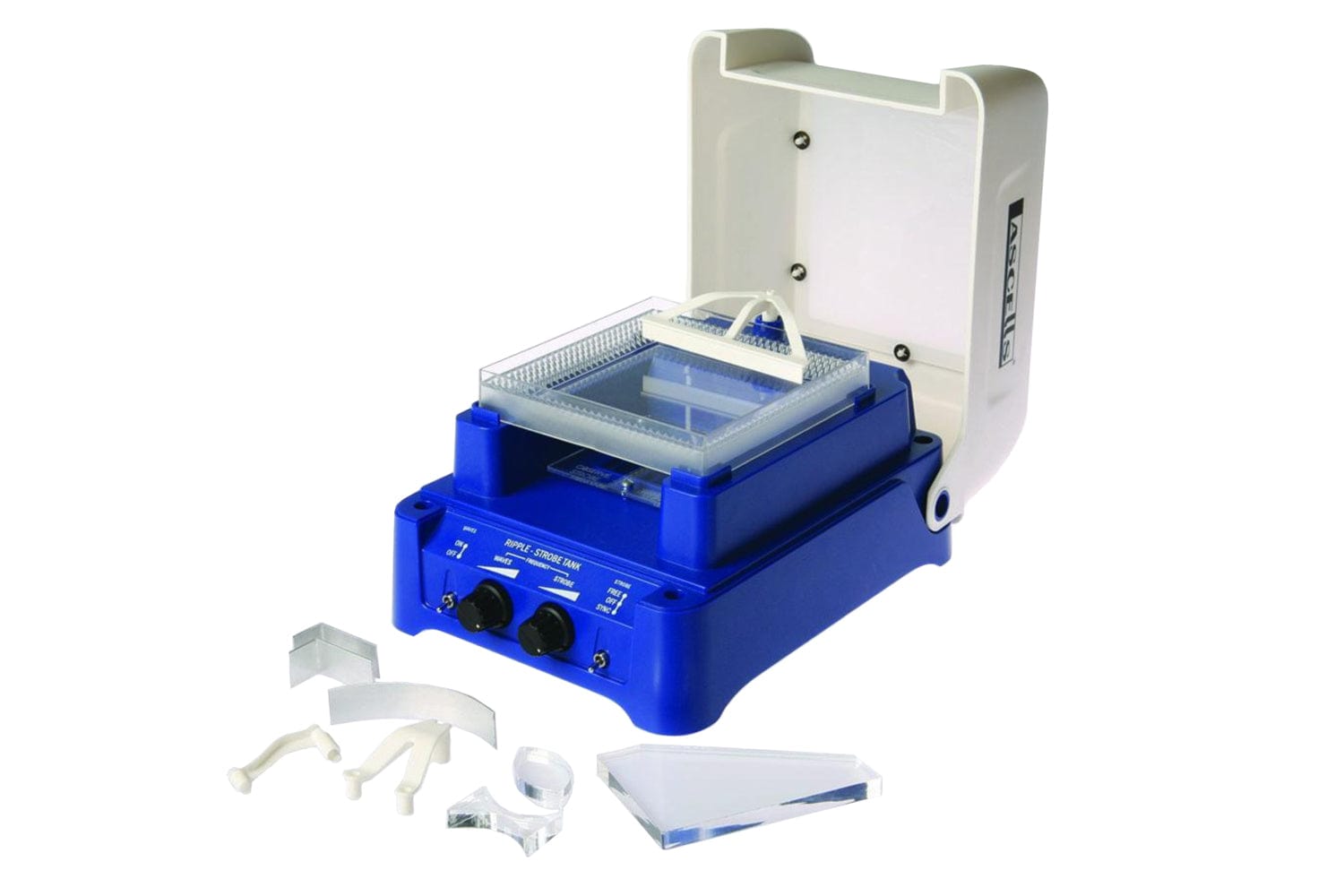

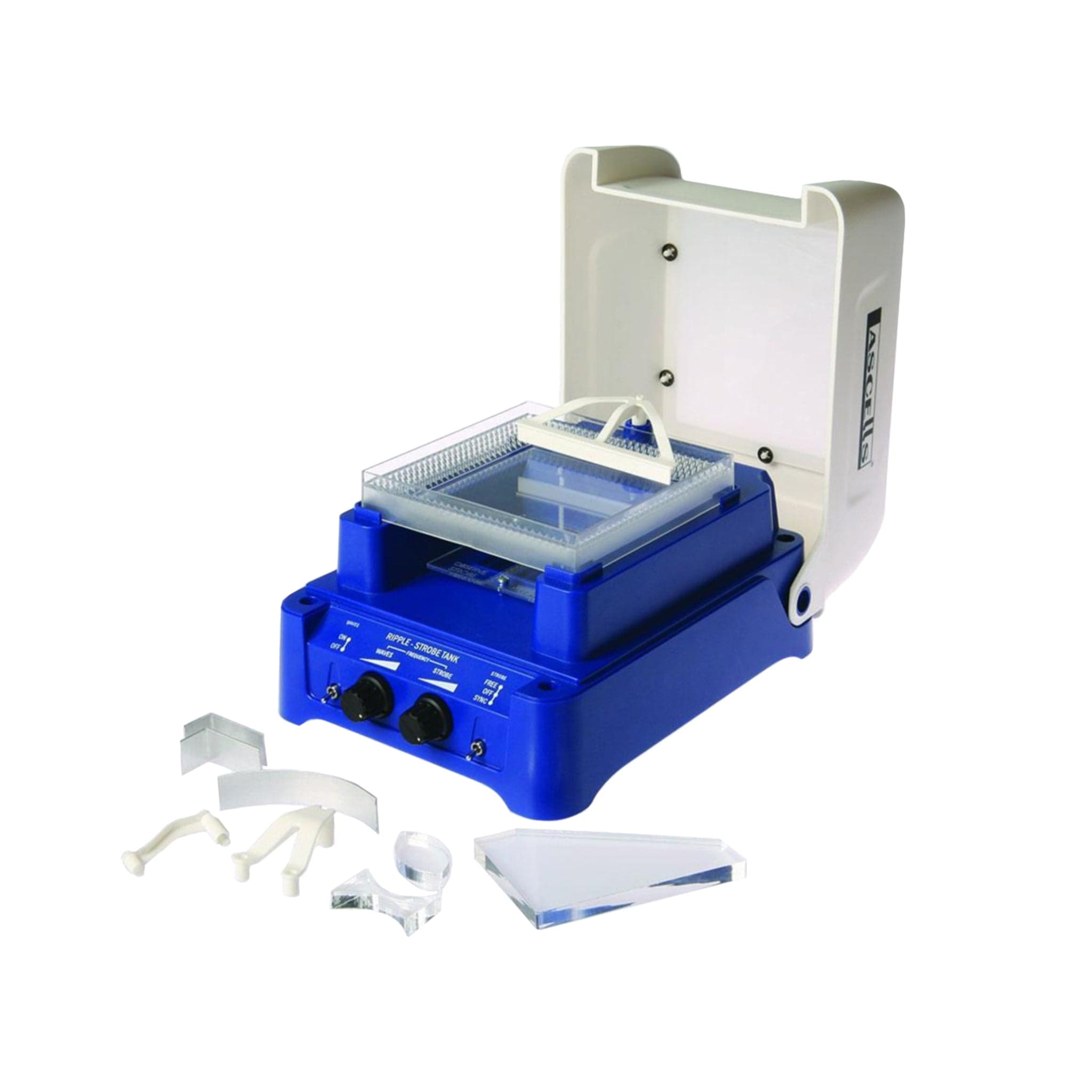

    What’s Included

    • 3 Dippers: Single point, double point, and plane wave
    • 3 Barriers: Two L-shaped and one curved
    • 3 Varied Lenses
    • AC Adapter
    • Instructions

    Features & Specs

    Dimensions: L x W x H: 9 × 7 × 5.5
    Weight: 1.07kg
    Input Voltage: Regulated 12V DC +pin
    Current Requirement: 400mA
    Strobe Frequency Range 30 – 500Hz nominal


    Order Qty Price Qty for Discount Discount Price Total Savings

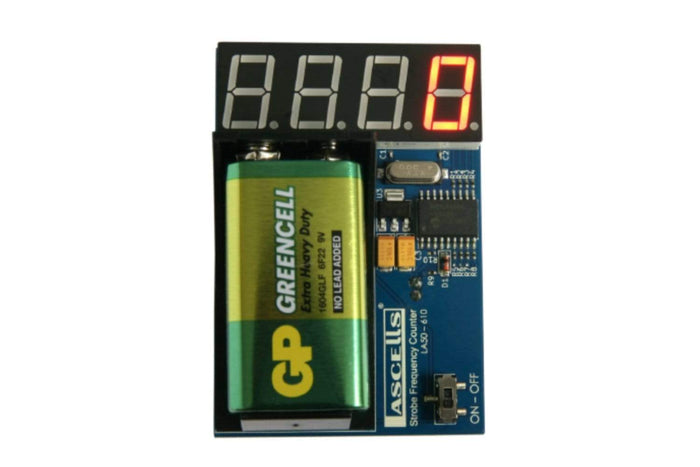

    Strobe Frequency Counter Strobe Frequency Counter Item # P2-9020
    $35.00 6 $32.90
