Polaroid Analyzer

Item # 92-9420

Regular price $52.00
Sold out
Shipping calculated at checkout.
Buy 6 and pay $49.00 each!

Easily hold two 90-degree crossed polarizing filters in one hand without the need for clips or ring stands. Useful for understanding that some materials polarize light that passes through them and opens questions that lead to discussion of material density, internal reflection, and anywhere directional light is useful, like in fiber optics.

In Stock

Additional Details

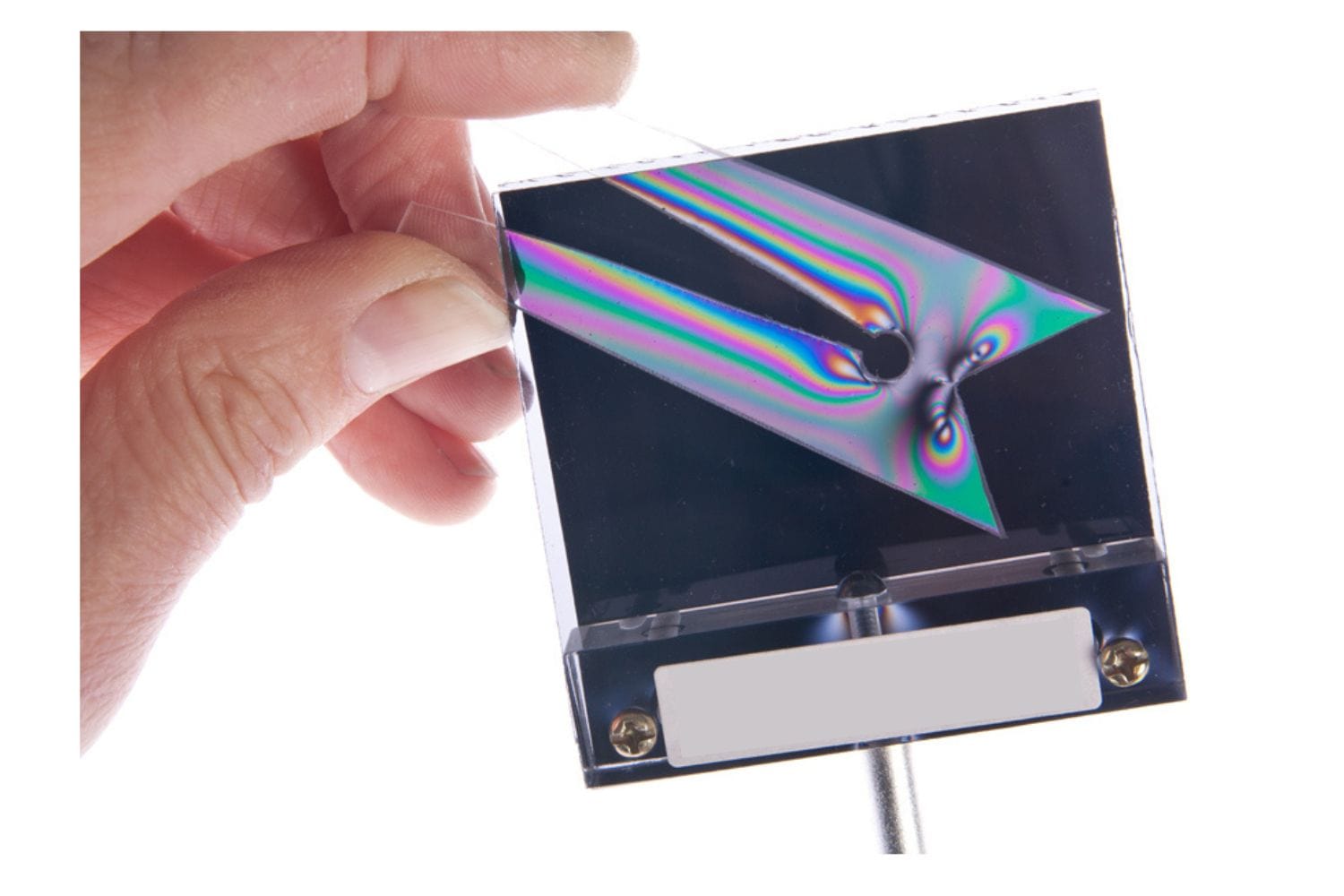

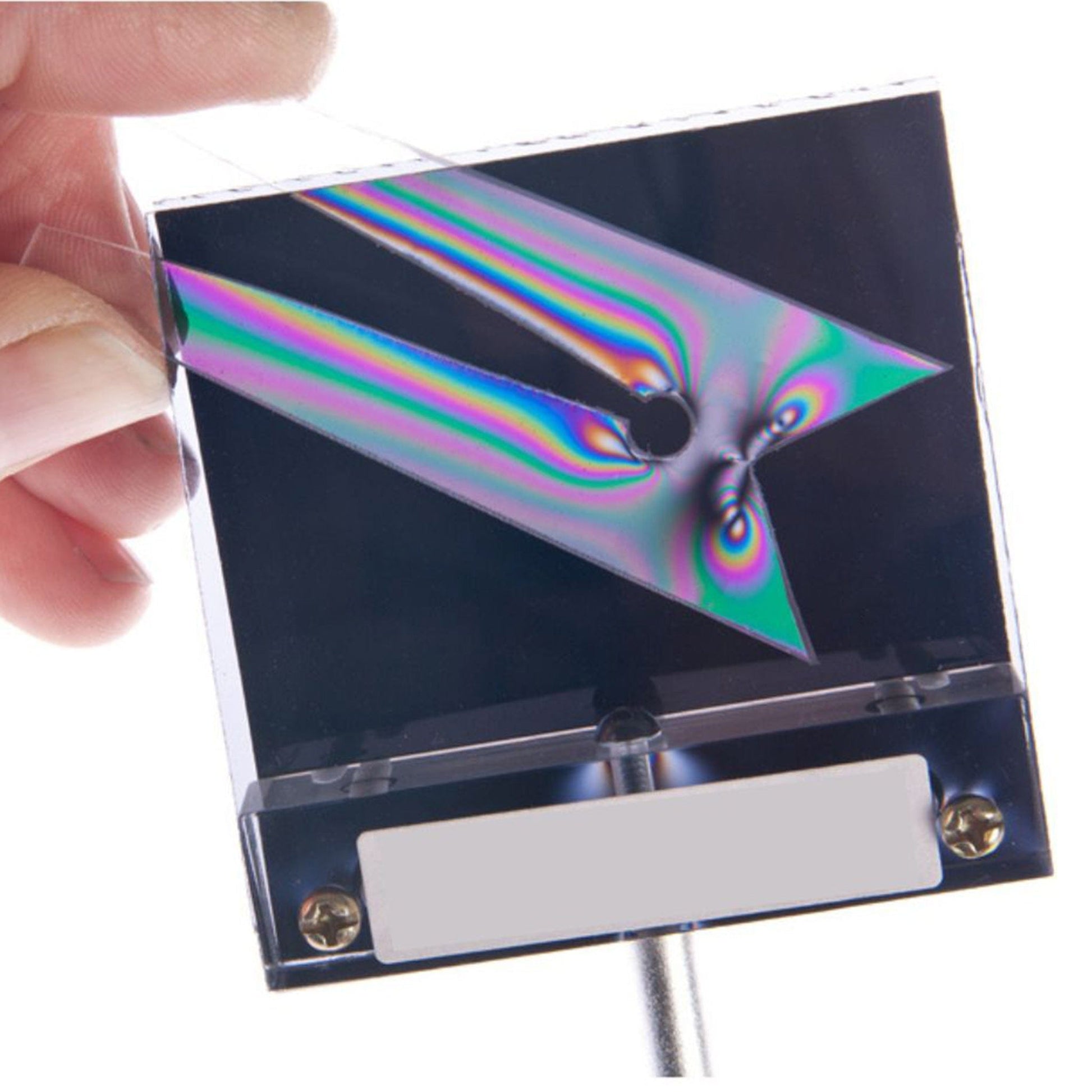

The Polaroid analyzer gives a convenient method for analyzing the polarization of light and stress in suitable materials. The handle holds two sheets of polarizing filter at 90 degrees enabling stress in sample materials (provided) to be viewed. A polaroid sheet acts like a “grid” and allows only light waves oscillating in one plane to pass through. If another polaroid sheet is placed in front of the first, and aligned in the same direction, the polarized light from the first will pass through the second since the waves are in the correct plane. If the second polaroid is rotated through 90 degrees, none of the waves will be able to pass and little light is transmitted. This system is known as “crossed polarizers” and is used in this apparatus. Some materials have the property of rotating the plane of polarization of light and when placed between the crossed polarizers, some of the light is allowed to pass. Furthermore, stresses in the material change the amount of rotation and this change is also dependent upon the wavelength of the light. Colored patterns are therefore produced which give information about the stresses in the material.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.

What’s Included

  • 1 x Polaroid Analyzer

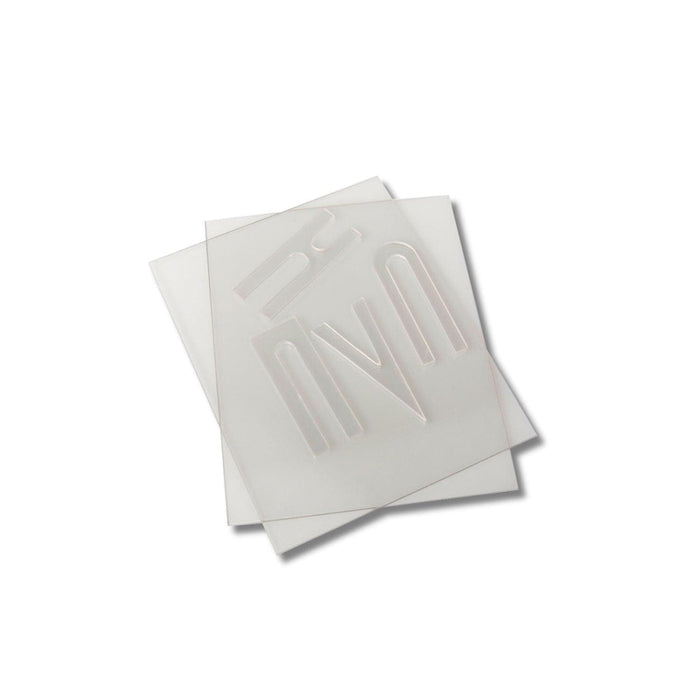

  • 2 x Stress samples

Features & Specs


  • Crossed polars mounted together that can be held in one hand for easy demos


  • Dimensions 150 x 70 x 10 mm Mass 0.032 kg


Order Qty Price Qty for Discount Discount Price Total Savings

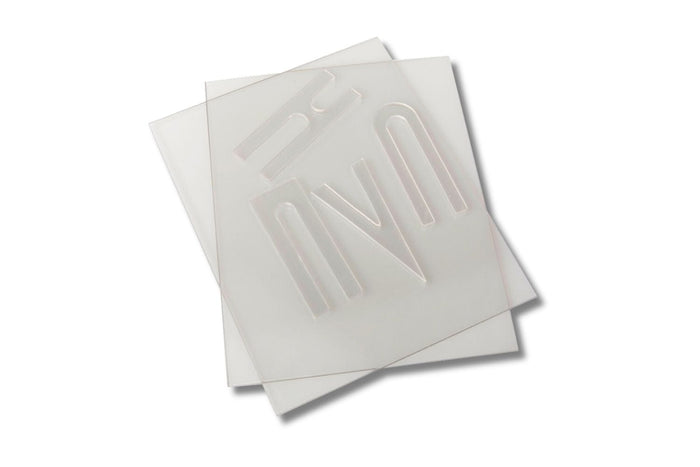

Stress Structure Set Stress Structure Set Item # 92-9421
$25.00 6 $22.50
