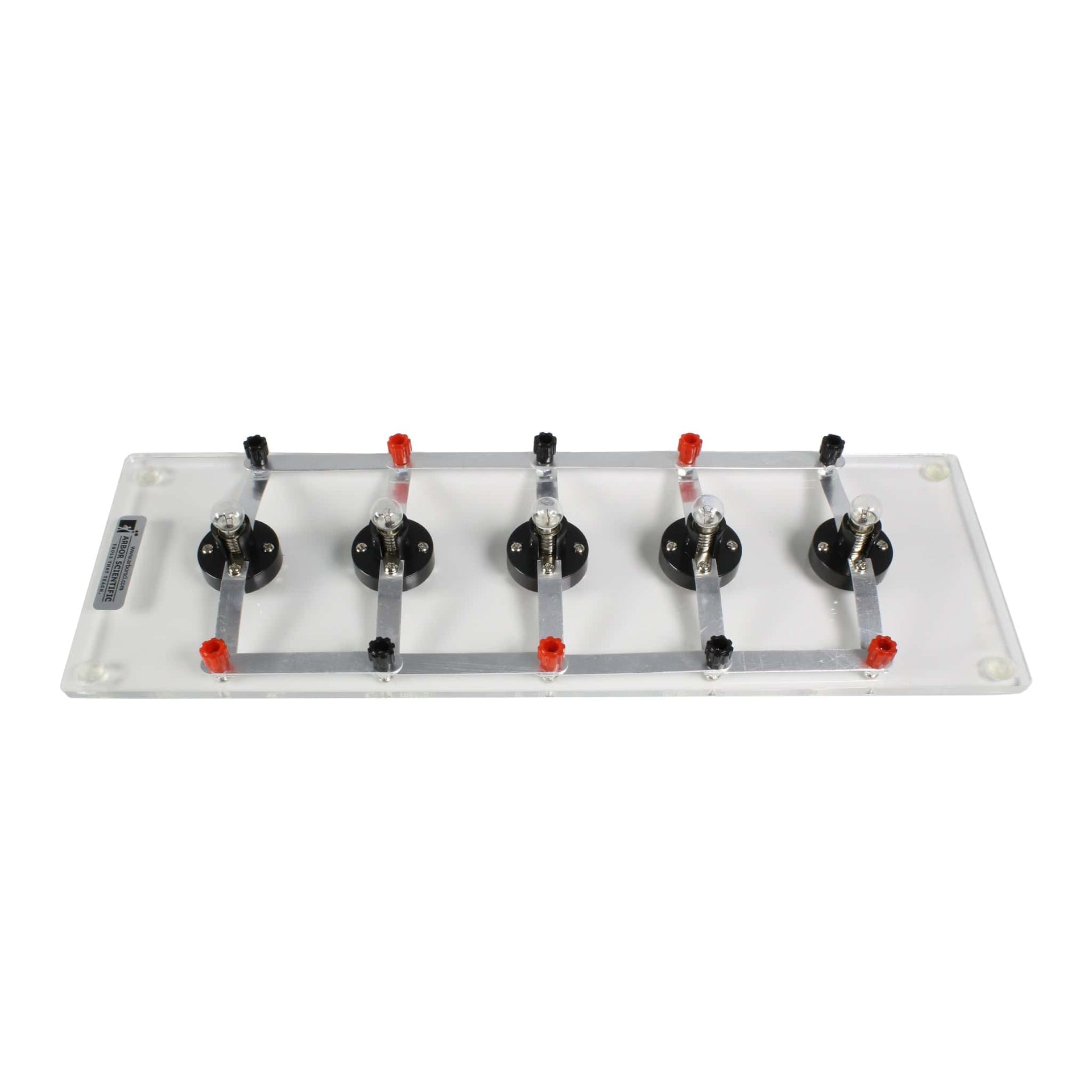

Series / Parallel Bulb Board

Item # P6-1120

Regular price $19.00
Regular price Sale price On Sale $19.00
Sold out
Shipping calculated at checkout.
Buy 6 and pay $17.50 each!

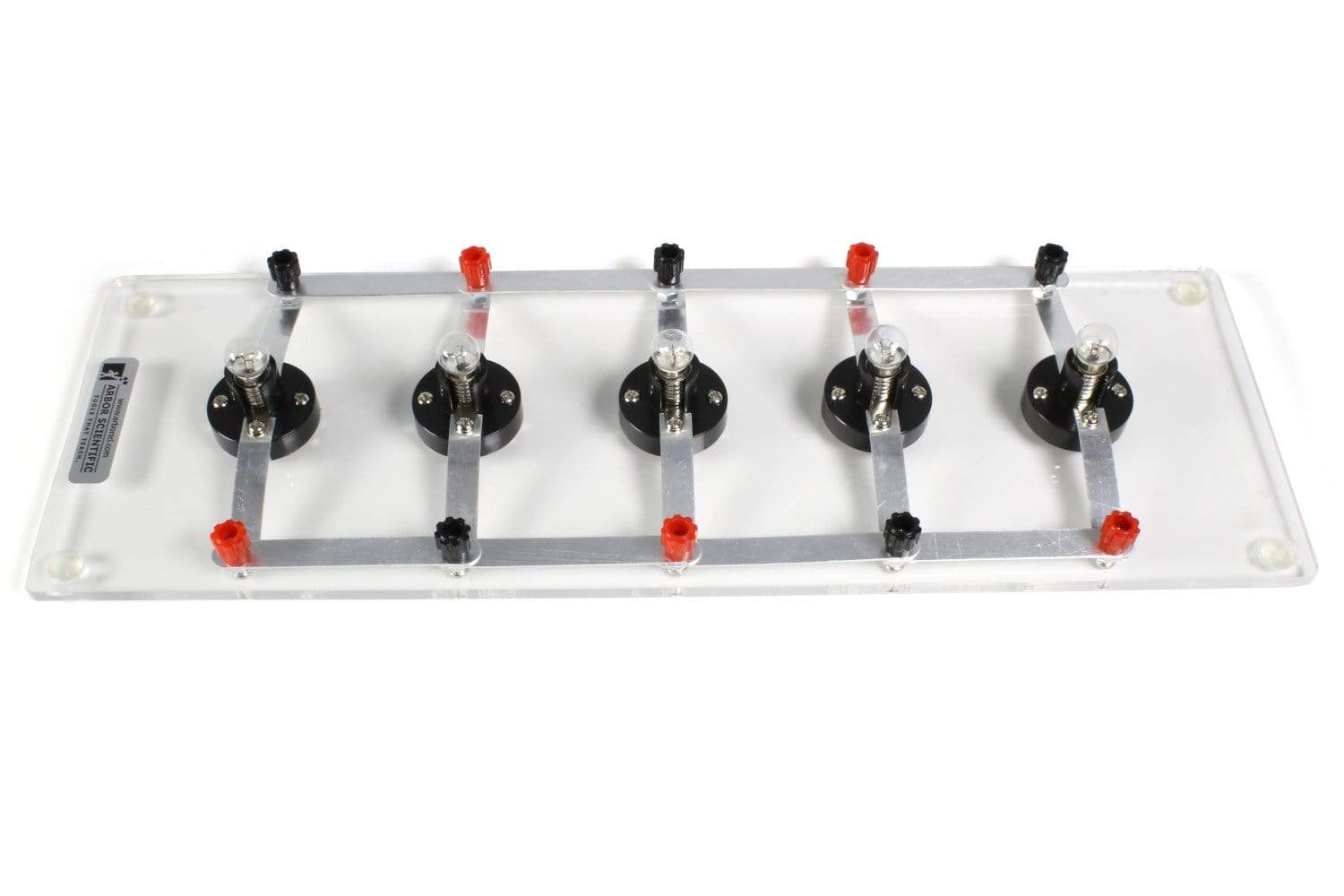

No more wire nests! The five mini bulbs can be quickly arranged in series, parallel, or complex circuits, simply by adjusting the busbars.

In Stock

Additional Details

Students can explore series and parallel circuits with one simple tool!

The Series / Parallel Bulb Board visually demonstrates the effect of different kinds of series, parallel, and series-parallel circuit hook-ups via the brightness of light bulbs acting as resistances.

The board’s convenient strap-connectors allow a combination of two to five lights in series-parallel mixes. Visually experience how electrical energy is being distributed due to a particular hookup. Using an electrical meter, it's possible to make quantitative measurements of the distribution of energy.

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.


What’s Included

  • Series / Parallel Bulb Board
  • 5 mini bulbs included
  • Instructional Guide
  • Features & Specs


    • No more wire nests!
    • Demonstrates the principles of series and parallel circuits that are used in electricity
    • Lamp board with five E10 light bulb holders and many different circuit possibilities
    • Great for experiments, classrooms, teachers, and students
