Stirling Engine

Item # P6-7100

Regular price $82.95
Regular price Sale price On Sale $82.95
Sold out
Shipping calculated at checkout.
Buy 6 and pay $79.00 each!

Visually demonstrate the conversion of thermal energy into mechanical work to create electrical energy!

In Stock

Additional Details

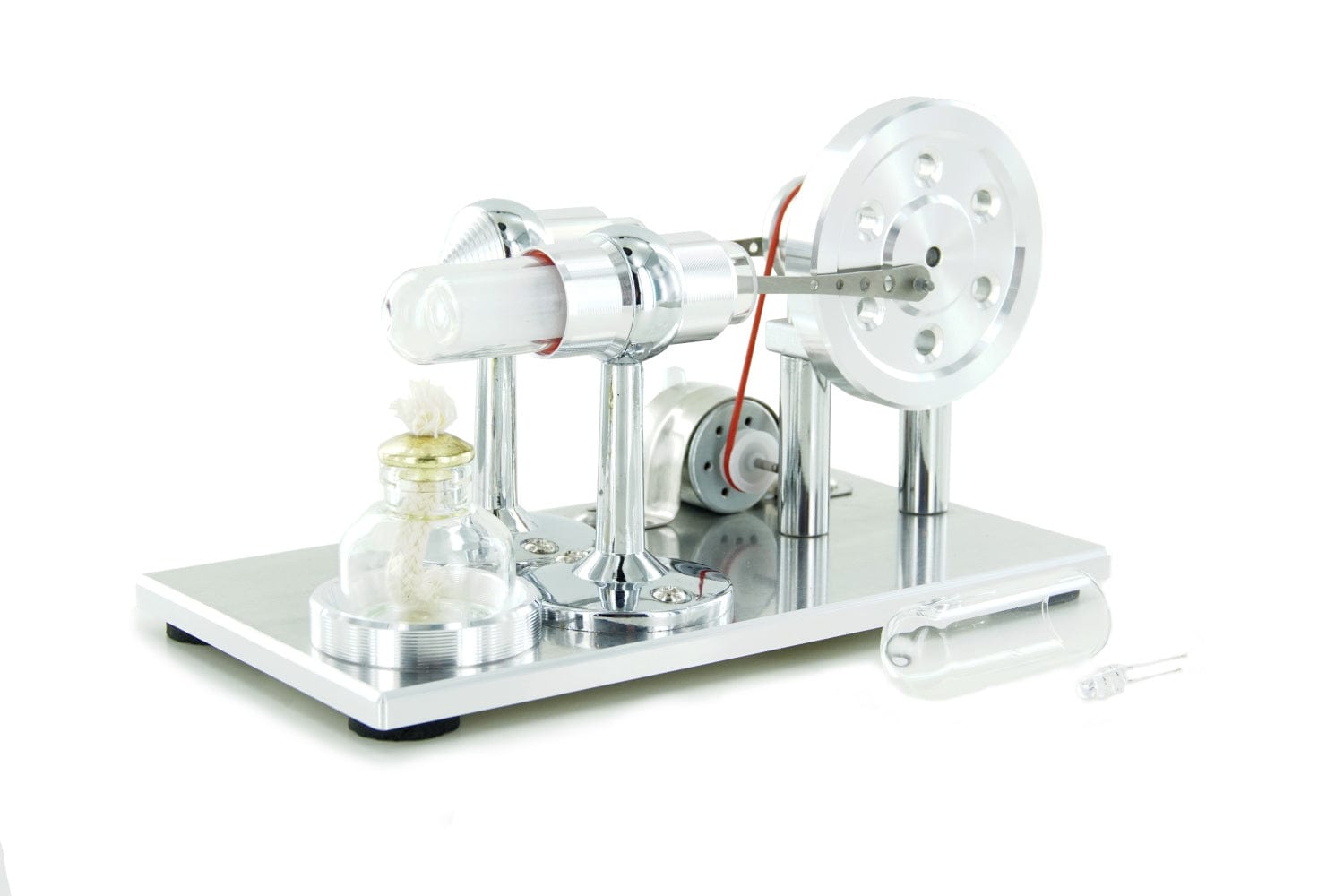

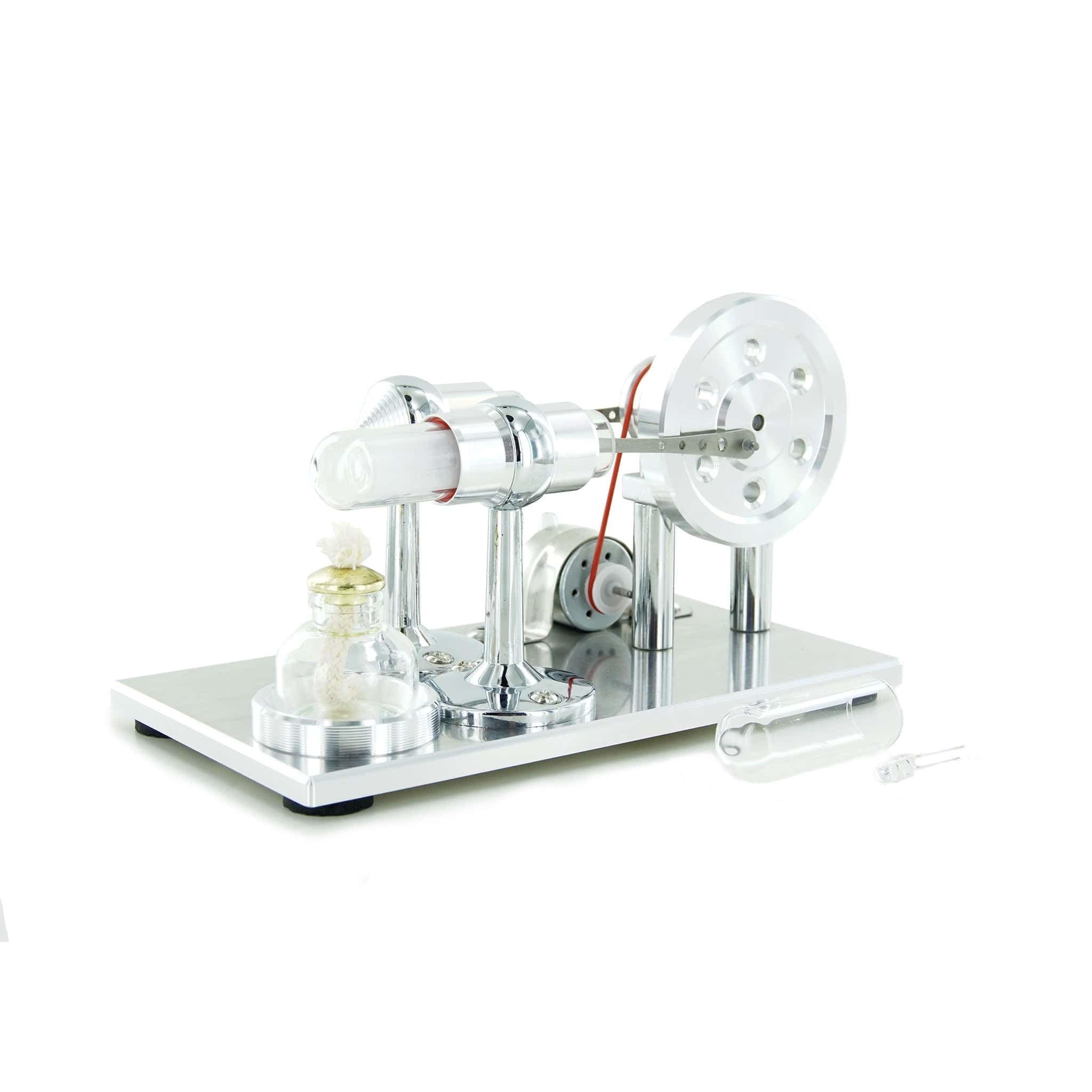

This Stirling Engine is a hot air engine that uses the expansion and contraction of air under the influence of a temperature change to convert thermal energy into mechanical work and electrical energy. The electrical energy is then used to power an LED bulb. The principle of the engine is simple. A denatured alcohol burner creates a temperature difference in the permanently sealed cylinder. The air inside expands and contracts, moving a piston and a crank shaft in a rotary motion. The rotary motion drives a second piston, which creates pressure in a second air-tight cylinder. The pressure forces the second piston to "push back" on the crank shaft and turn the wheel. This process continues as long as the alcohol is burning, powering the mini-dynamo and thus, lighting the LED! Alcohol not included. 70% Isopropyl alcohol works well and is readily available. Other alcohols should work as well. Fully-assembled. ISO9001 Certified. Dimensions: 7"L x 3.5"W x 3.5"H. Includes spare cylinder and LED.

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.


What’s Included

  • Stirling Engine Model
  • Alcohol Lamp
  • 2 Glass Hot Gas Containers
  • 2 LED Lights
