A stream table can be a great way to explore land formation processes in an interactive and exciting way. Students often want to get involved and experiment hands-on. In this blog we are going to explore the purpose of a stream table, how to set one up, and what you can demonstrate with this cool geomorphology tool.
What is a stream table?
A stream table is typically a table-top demonstration tool featuring a tray or box filled with sand, used to show how erosion happens, and the resulting land formations.
Setting up a stream table

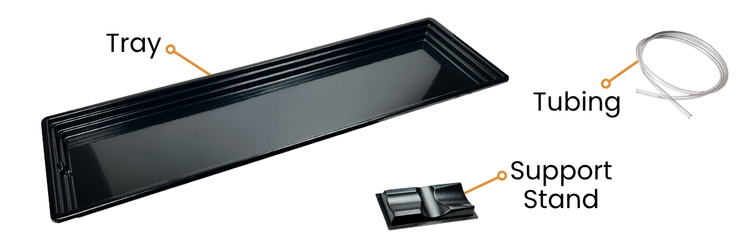

Whether you are using our Stream Table Kit, or going DIY, a stream table is quite simple to set up. The following instructions are for our stream table kit and recirculating pump.
-
Cut the tubing to an appropriate length for the inlet (if connecting to a faucet) and the drain. Feed the inlet tube through the hose clamp, this will allow you to stop the water flow easily.
2. Attach the drain hardware, adding the tubing to the outside.
3. Place catch basin at the drain end. If using a Recirculating Pump, add to the catch basin and bring the inlet end of the tube to the top of the stream table.
4. Fill the stream table with pool sand (or clean play sand) to the desired level.
5. If using the recirculating pump, fill the catch basin with water so the intake is covered. Once you plug the pump in, and water is pulled through the system, you may need to add more water so the intake remains covered.
6. Saturate the sand either with the pump or using a pitcher of water, and you are ready to demo!
Demos with the stream table
Before starting, it can be helpful to have a mental list of local landforms that correspond with the following demonstrations. This helps students make real-world connections and increases understanding by relating these concepts to places that are familiar.
1. Valley/Canyon Formation
Start with a smooth surface on the sand. Place the support stand under the top part of the stream table to create a gentle slope. Turn on the water (or begin slowly pouring with a pitcher). A channel will begin to form, note how it doesn't form a straight channel like one might expect, but a more organic path is formed.
Now is also a good time to identify the Headwater - where the river begins, and the river Mouth - where it empties into the ocean, as well as reviewing Erosion and Sediment.
Keep the water flowing to show how the channel gets deeper over time through erosion. You can also adjust the slope of the stream table to show how the velocity of the water changes, and how it effects erosion.
2. Meandering River & Oxbow Lake Formation
Smooth out the sand, and using a trowel (or your hand) carve a meandering river into the surface as shown. Make sure the river shape has deep curves for an effective demonstration.
Identify the Cut Bank - the outer part of the bend, and the Point Bar - the inner part of the bend.
Start the water flowing slowly, ask students what they notice about the different parts of the river, which part of the bend is eroding faster? They should be able to identify that the cut bank erodes faster, as the water moves faster on the outside of the river. You can use food coloring to further show this by placing a drop at the inlet, you will be able to see the coloring move faster through the outer part of the river.
Identify the river Delta - the triangular formation at the mouth of a river caused by the deposition of sediment.
Increase the water flow to accelerate erosion. An Oxbow lake should begin to form as the bank of the river erodes, and the water creates a shorter course. Note the Meander Scars left behind as erosion takes place.
3. Variations & Extras
Rocks or props can be added for more in-depth discussion.
-
Use a small toy house (small plastic cups work well for this) to show how where you build a river front house matters - cut bank vs point bar.
-
Use Legos or rocks to make retaining walls or dams.
-
Bury rocks in the sand to show how fossils are unearthed by erosion.
-
Place an obstruction in the rivers path to show how a meander forms.
4. Free-form experimentation
Stream tables are quite versatile and can be used for free-form experiments. Take student suggestions (or let them get hands-on!) and allow them to see cause and effect from their own curiosity.
Resetting the stream table
To reset the stream table for your next class, let the water drain fully into your catch basin, and replace with fresh water if desired. Smooth out the sand and you're ready to go!
Why teachers love it
Our stream table kit is popular with teachers for a reason!
-
Simple set up: The kit comes with nearly everything you need (just add sand!) to run investigations on land formation.
-
Highly visual and interactive: Students see landscapes change as processes occur—not just after the fact.
-
Supports inquiry-based learning: Easily vary flow rate, slope, and sediment to test predictions and compare outcomes.
-
Classroom-ready durability: Sturdy, user-friendly design stands up to repeated use in busy labs.
Ready to streamline your erosion and geomorphology demos with a stream table & recirculating pump?
