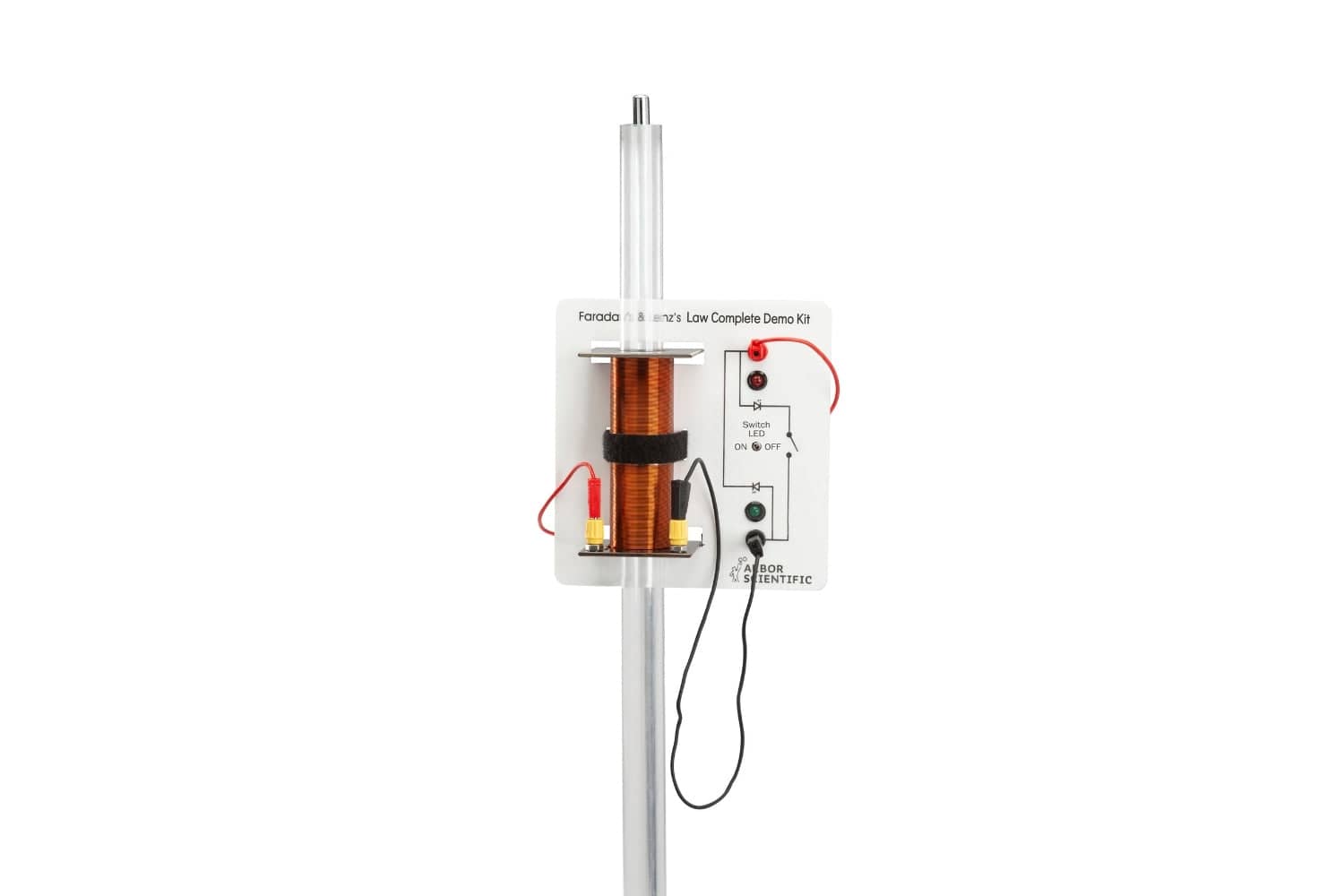

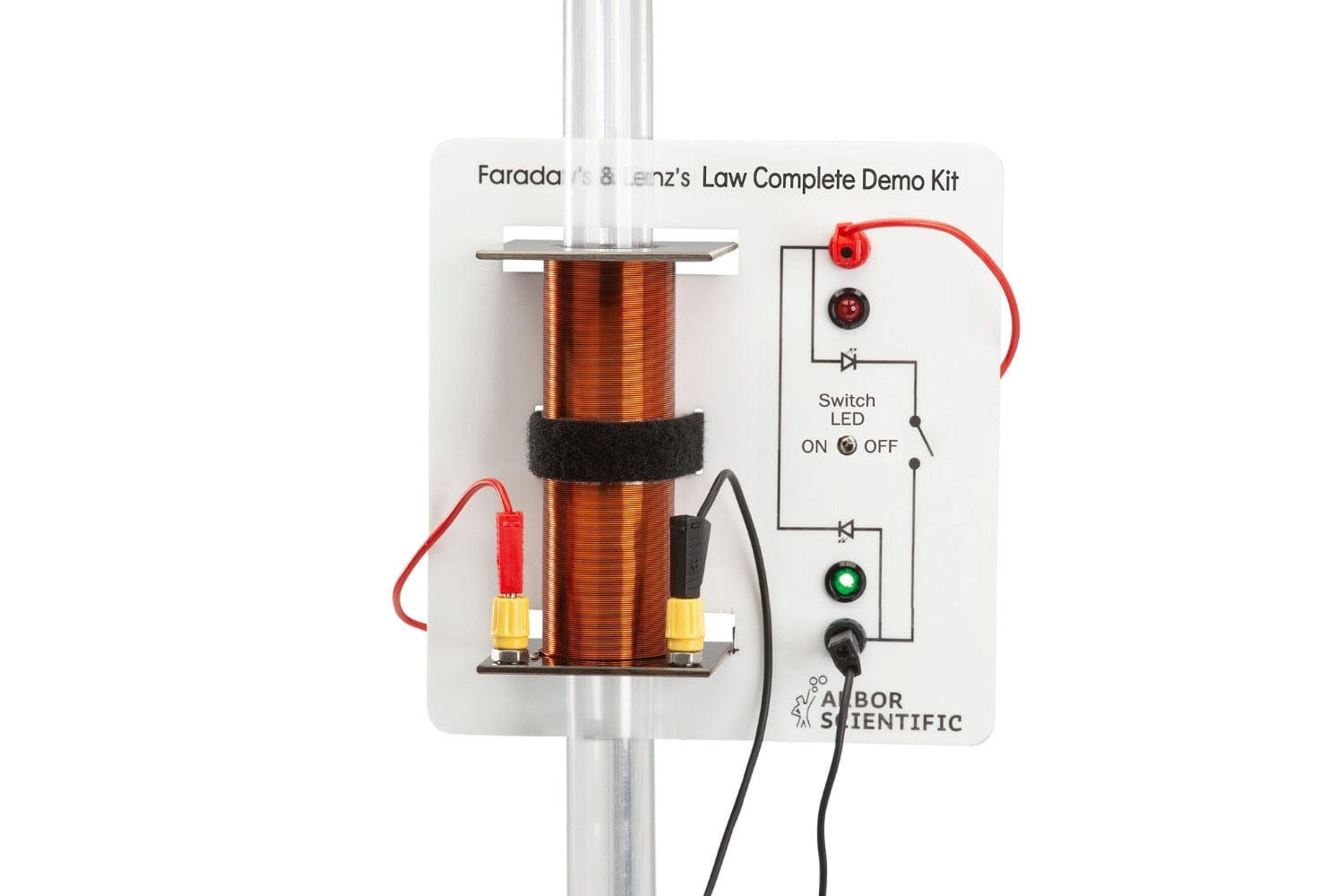

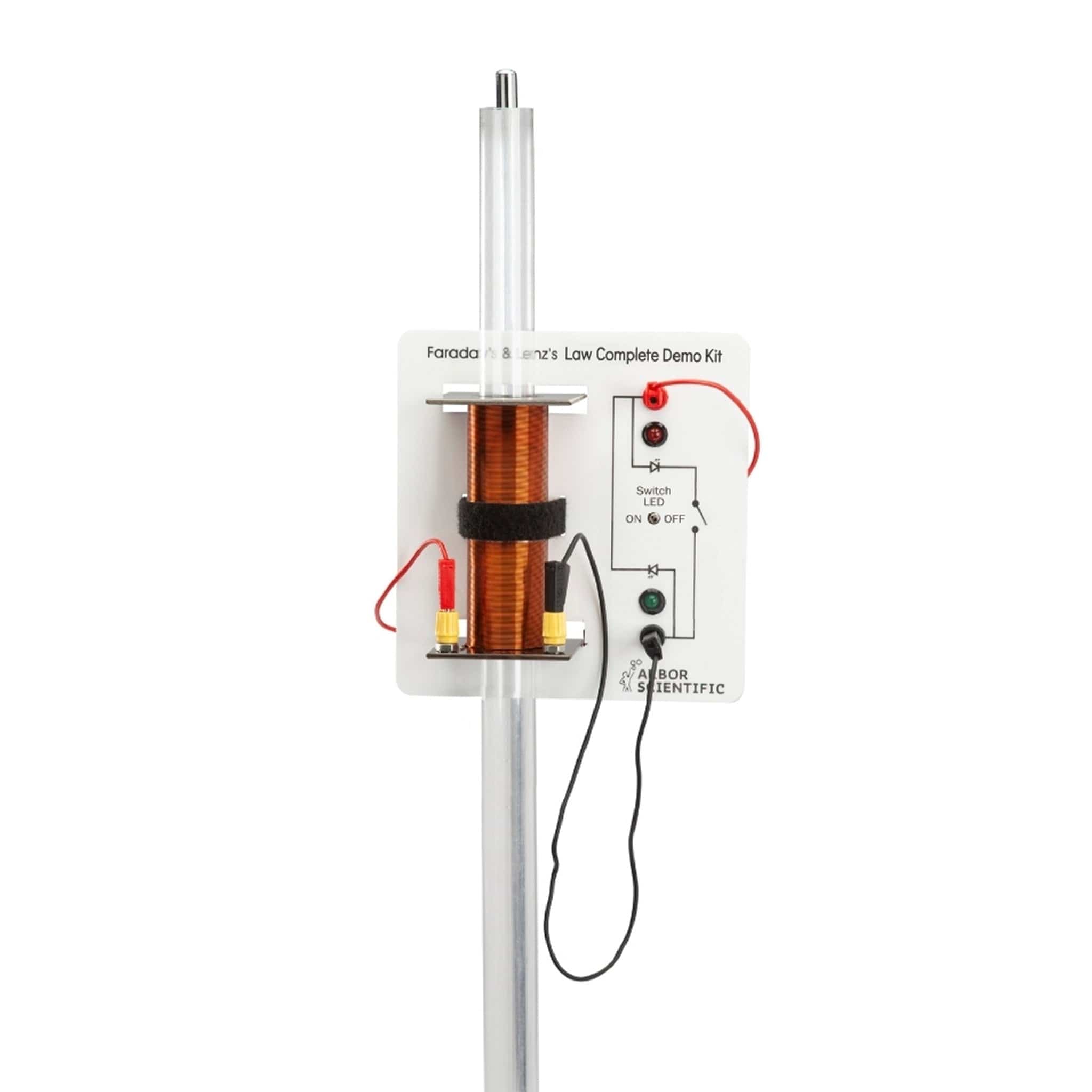

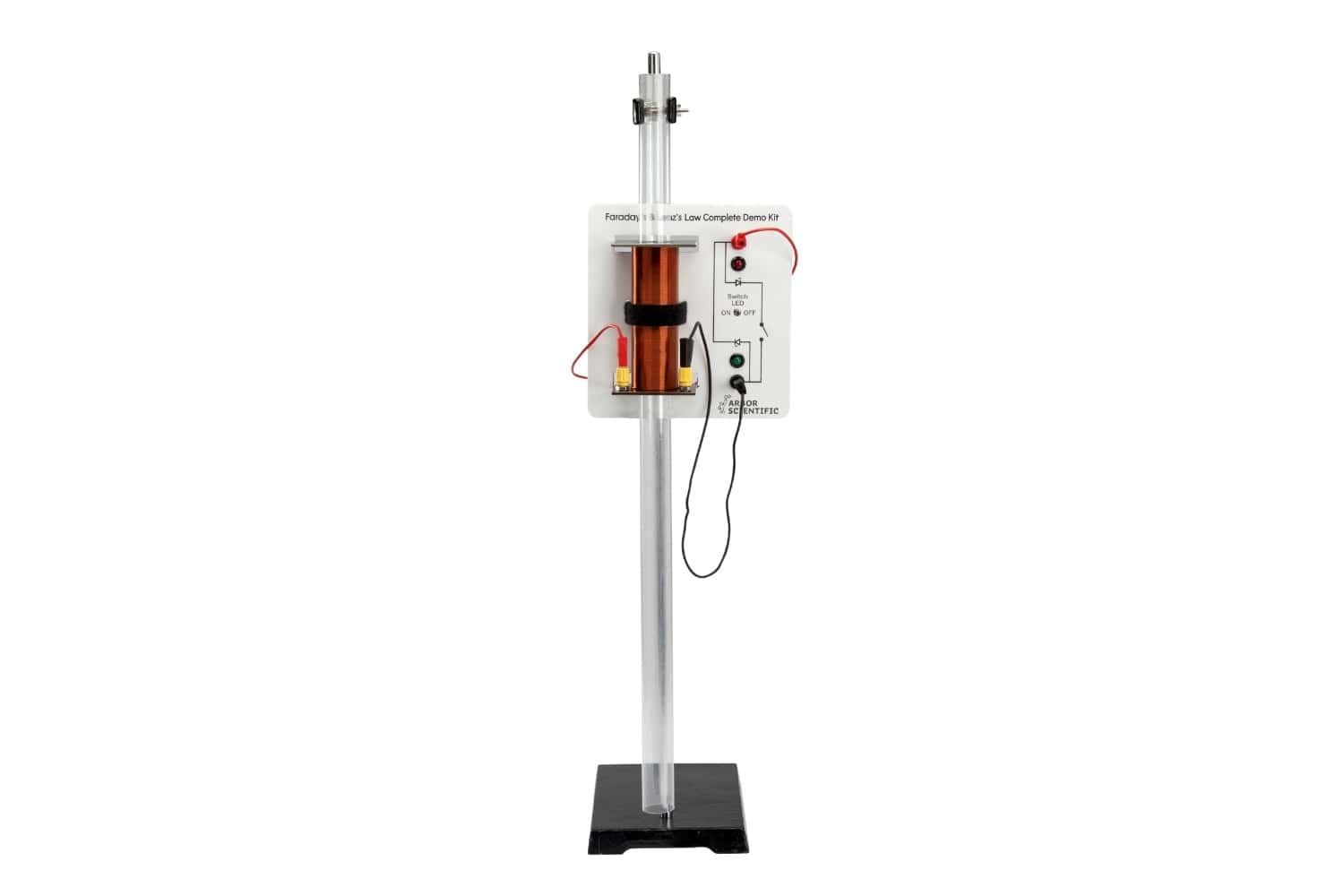

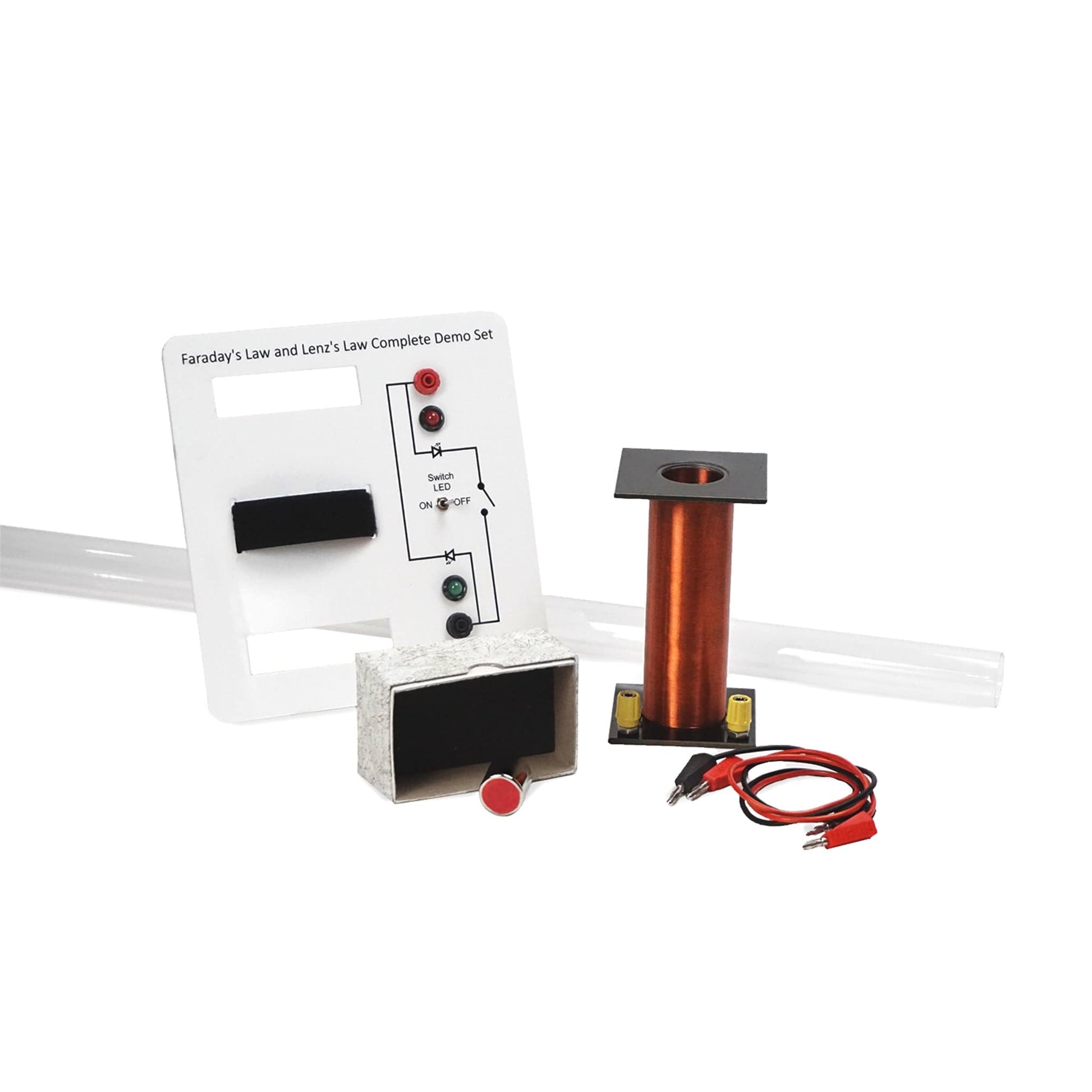

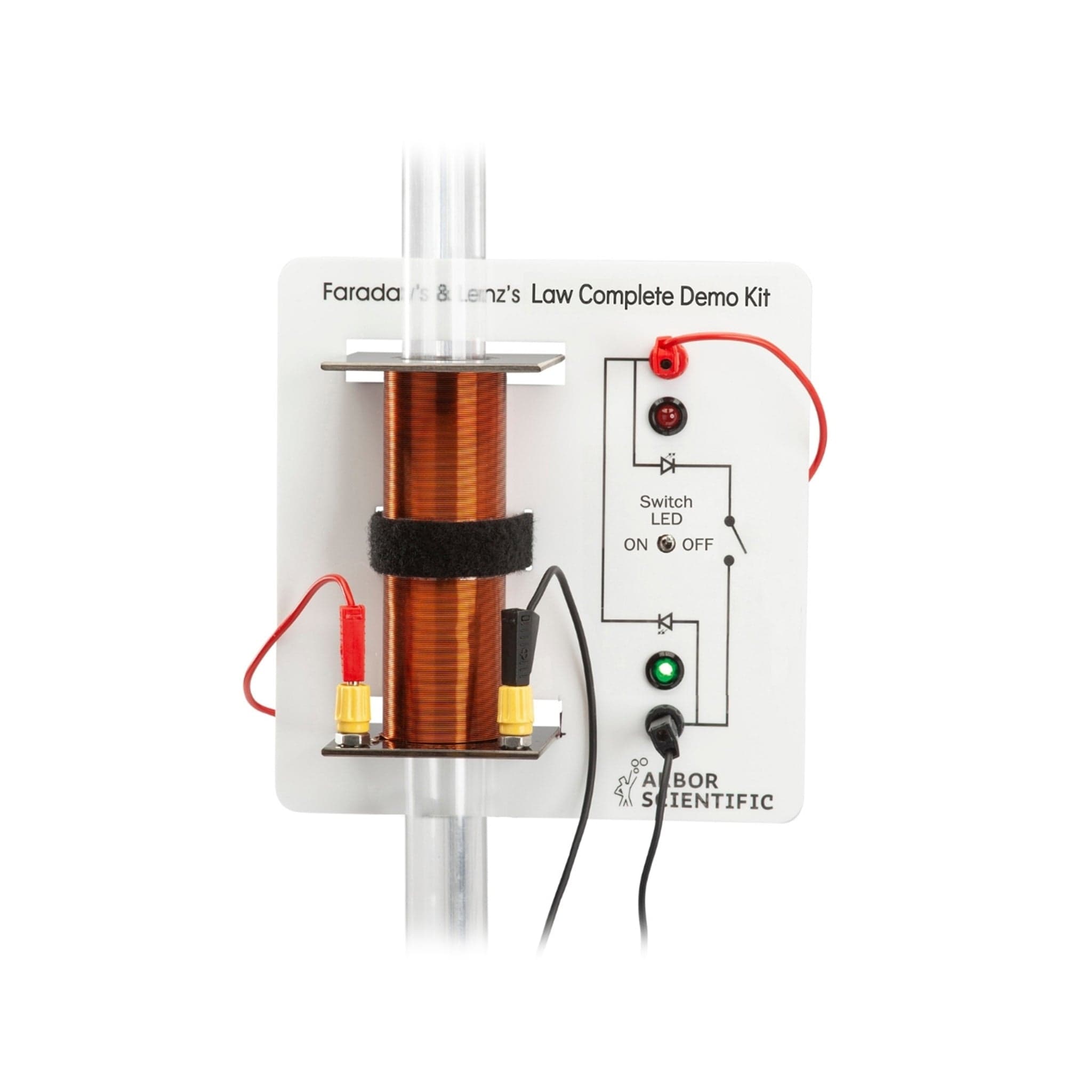

Faraday's Law and Lenz's Law Complete Demo Set

Item # 98-8600

Regular price $140.00
Sold out
Shipping calculated at checkout.

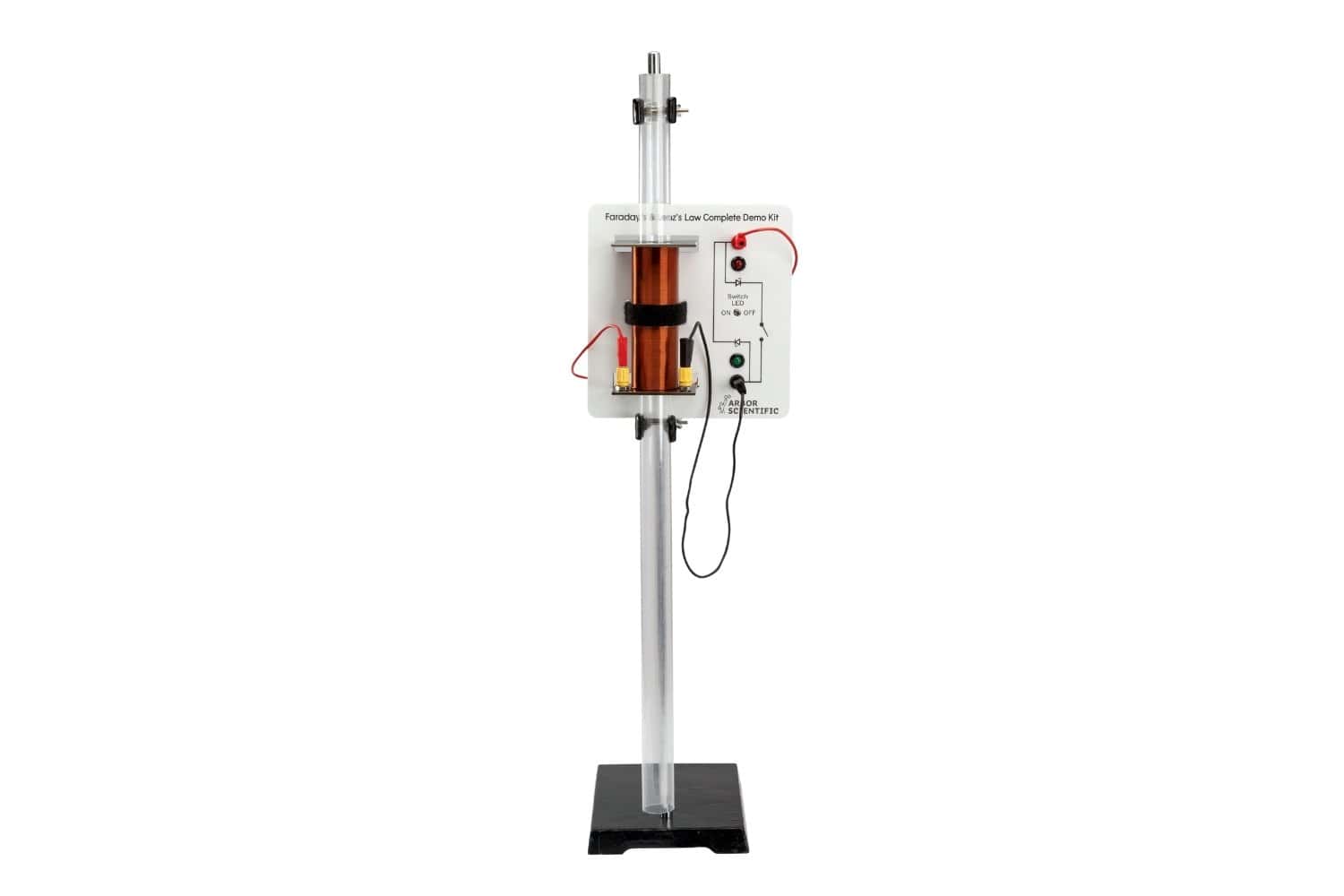

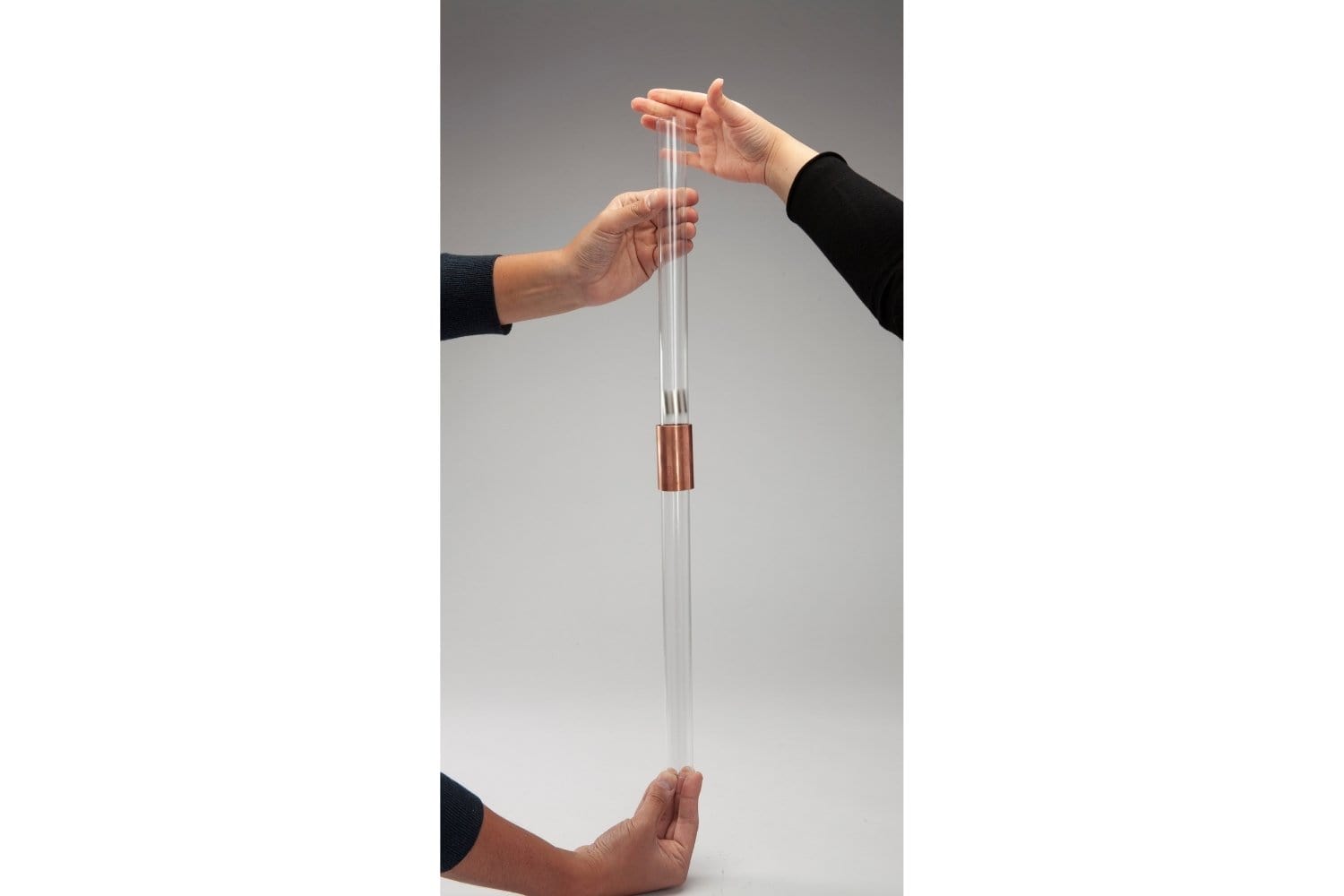

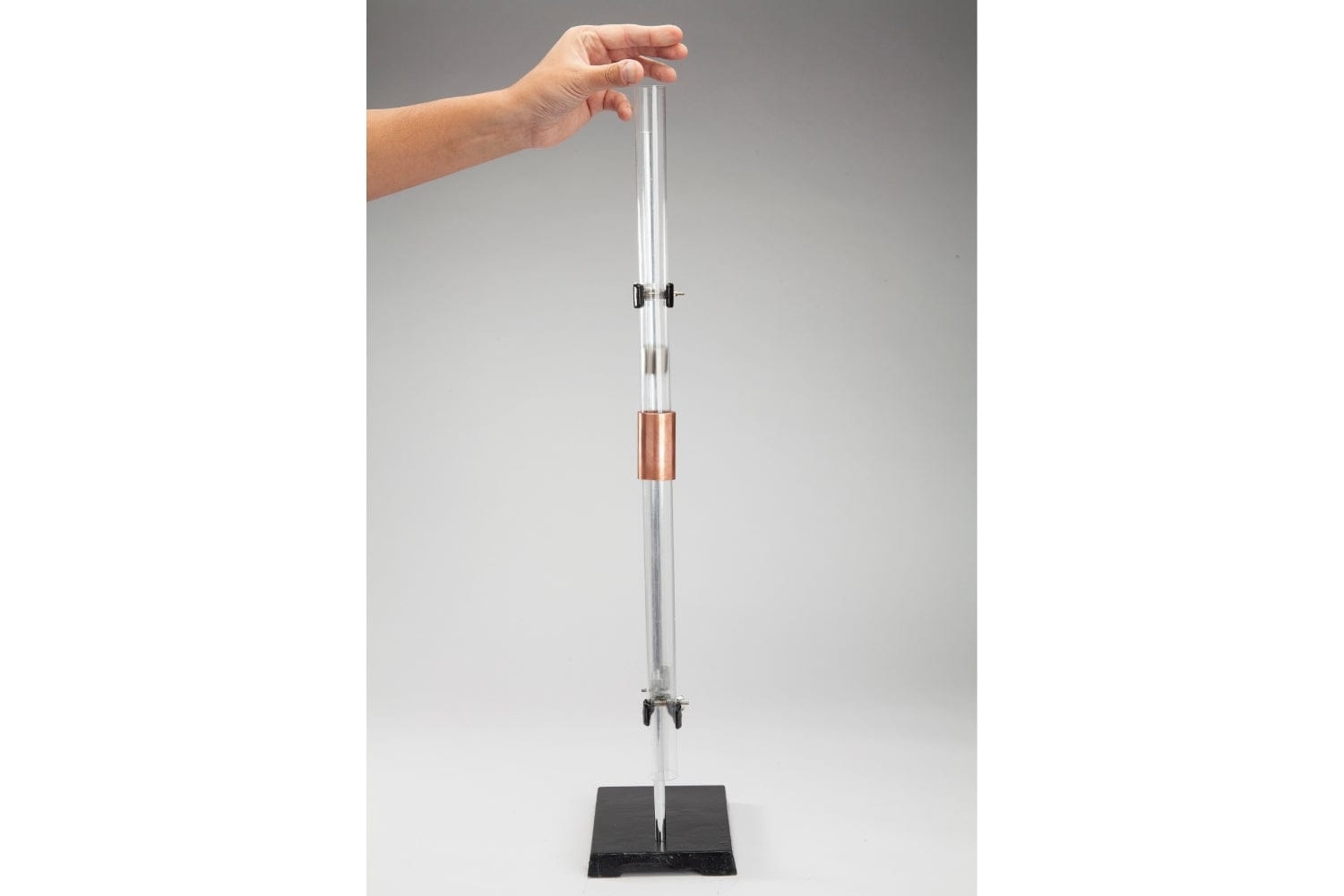

The Faraday's Law and Lenz's Law Complete Demo Set contains everything needed for a show-stopping electromagnetism demonstration. Use this demo set to explain what happens when the falling magnet disappears into the copper collar. It is not magic—it is physics!

In Stock

Additional Details

Electromagnetism doesn't have to be abstract! Students latch on to tangible results, making the Faraday's  Law and Lenz's Law Complete Demo Set a great tool for open-ended discussion and guided inquiry. Contorting hands into odd shapes is a tried and true method for predicting induced current, but it often isn't enough to convey the deeper relationship between electricity and magnetism. With this demo set, students can ask questions and draw inferences based on what they can see in front of them.

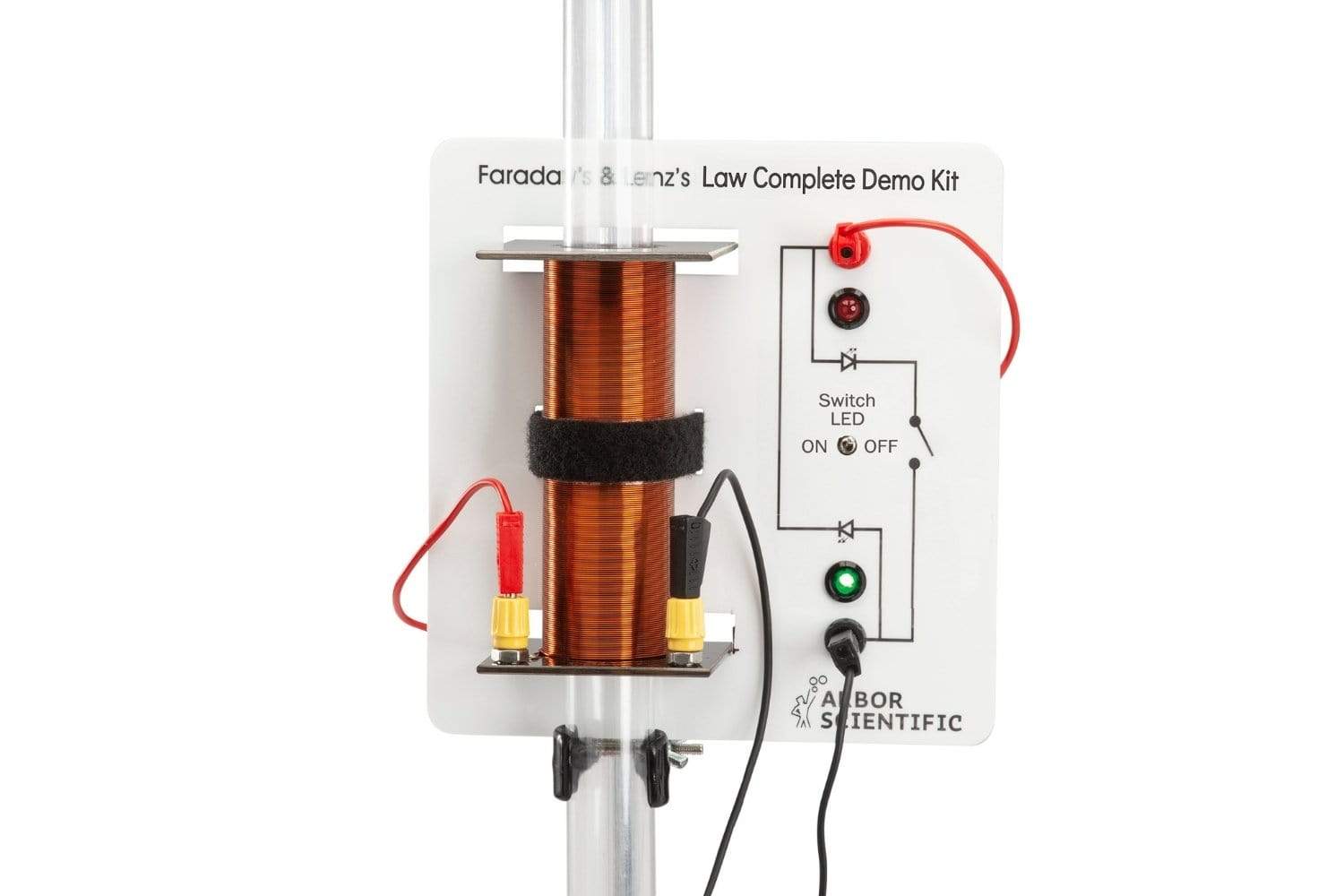

Take your demos a step further by plugging in a voltage probe to quantify the induced current in the solenoid. Any voltage probe with 4 mm banana plug connectors can be looped into the circuit to measure the potential difference across the solenoid. The included stackable banana plugs allow for easy hook-up and measurement. With the data in front of them, students have all the tools necessary to fit Faraday's Law and Lenz's Law into the bigger picture of energy conservation. As the distance the magnet falls changes, the graph will change too! But it is up to the students to interpret the results.

If you already have a large neodymium magnet and an air-core solenoid, the Faraday's Law and Lenz's Law Base Demo Set (98-8500) might be what you are looking for. Take a look at the "What's Included" tab for detailed dimensions.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Resources

Videos

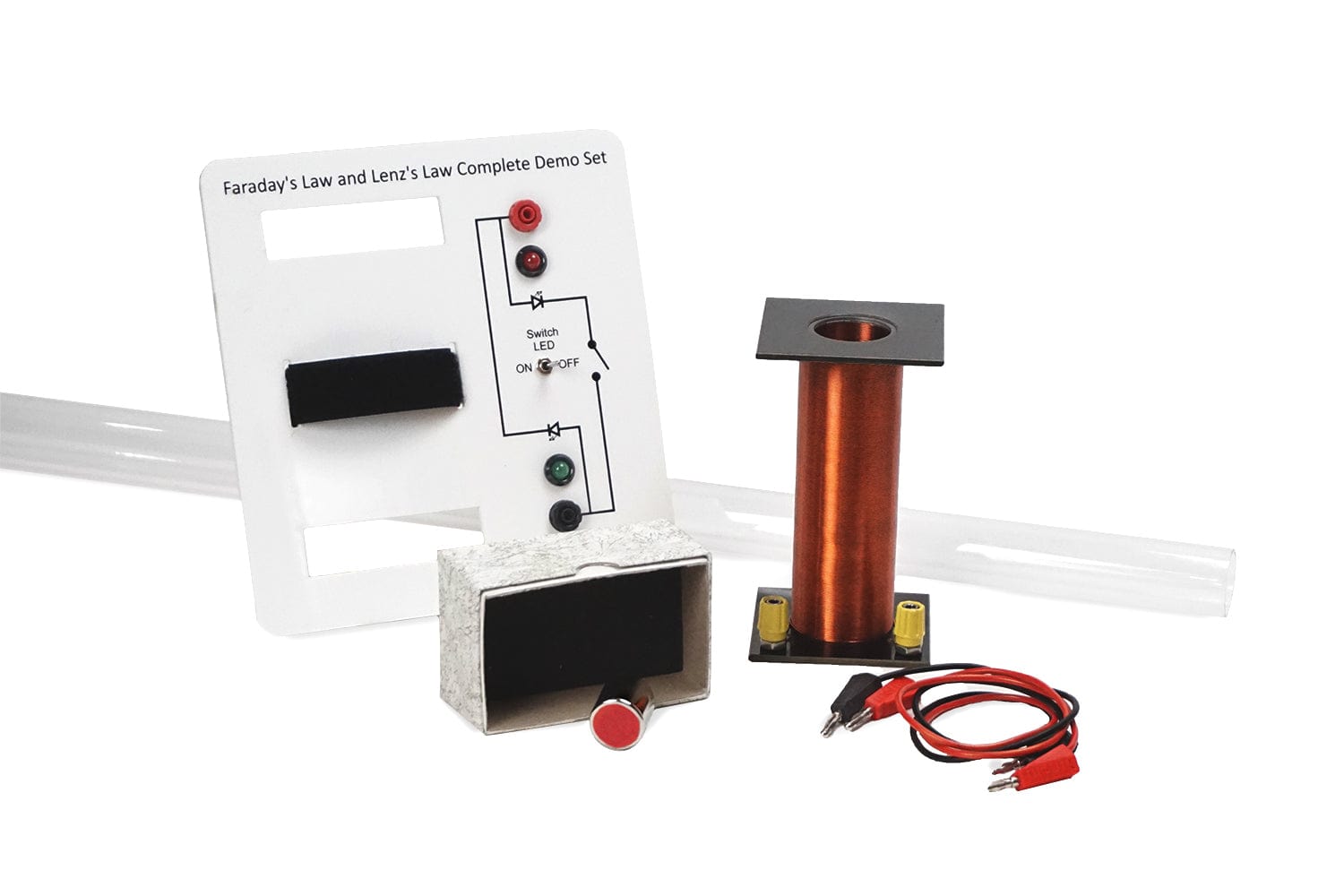

What’s Included

  • Base Plate

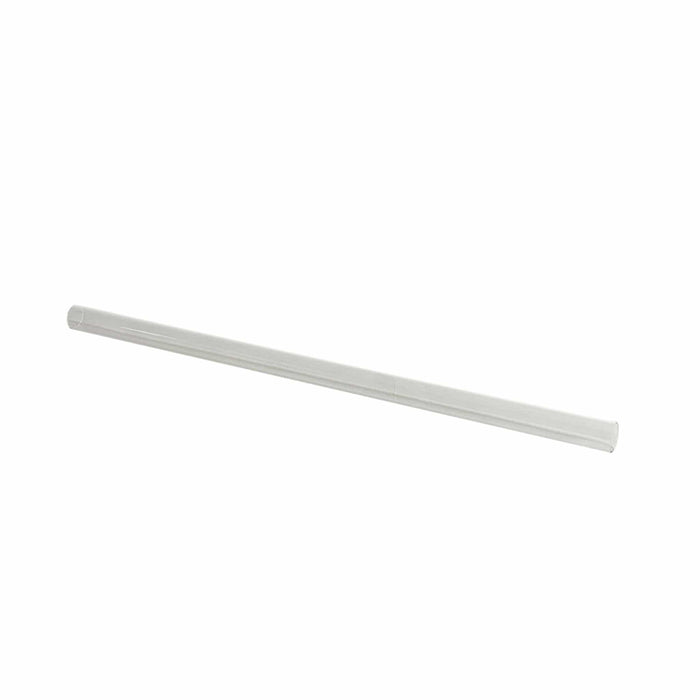

  • Guide Tube: length 28" (77 cm), I.D. 1.125" (2.86 cm) O.D. 1.186" (3.01 cm)
  • Copper Collar: length 2" (5 cm) I.D. 1.25" (3.18 cm)
  • 2 Banana Plugs: length 12" (30 cm) with 4 mm plugs, one red, one black
  • Impact Pillow

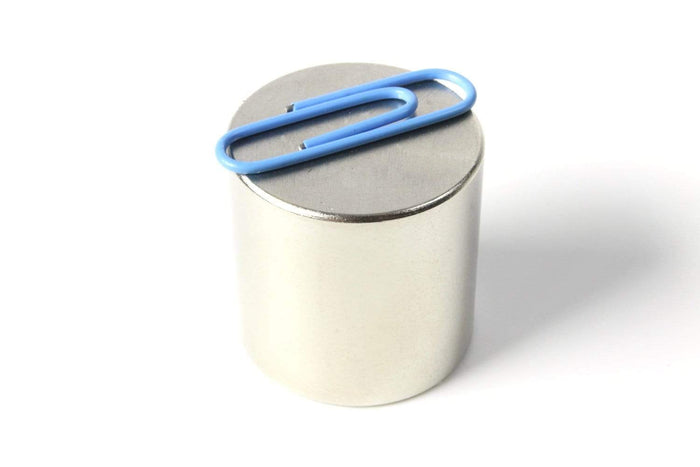

  • Giant Neodymium Magnet: 1" diameter, 1" height, grade N35, red sticker indicating north pole
  • Air-Core Solenoid: 5A max current, approx. 710 turns of 23 AWG wire, 4 mm banana plug connections

Please note: The Ring Stand Base with Rod is not included.

Accessories

Order Qty Price Qty for Discount Discount Price Total Savings

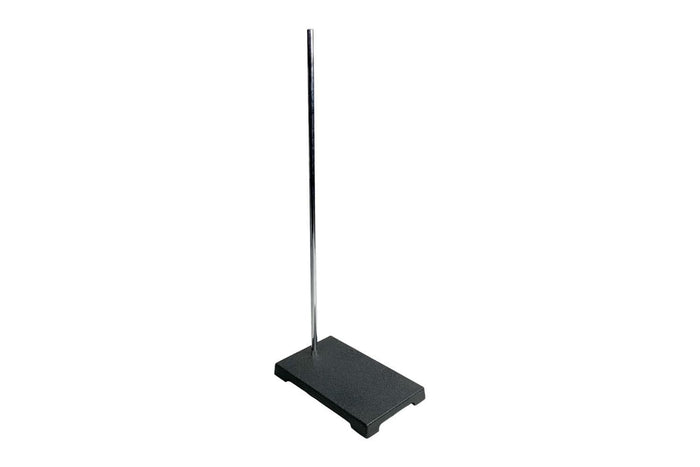

Ring Stand, 5 Ring Stand, 5" x 8" Base, 20" Rod Item # 66-4220
$14.00 12 $13.20

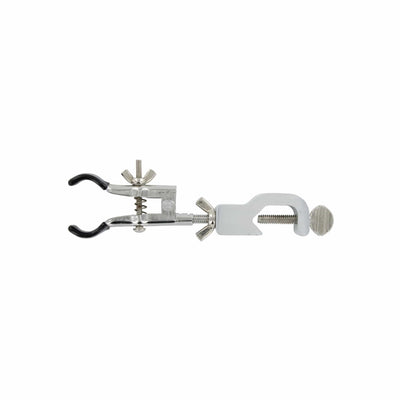

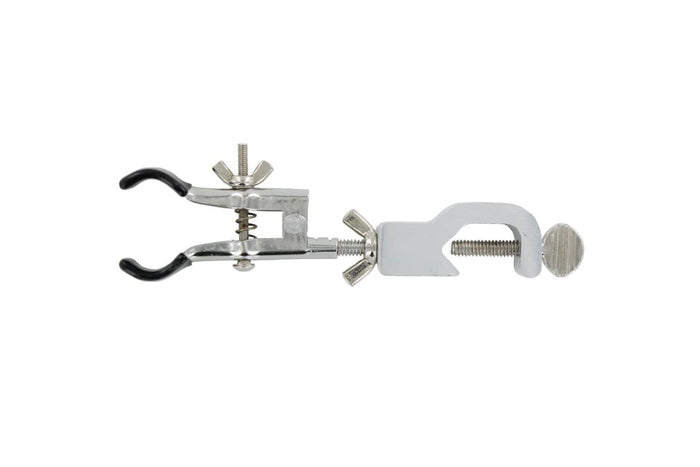

Burette Clamp Burette Clamp Item # 66-8002
$9.50 12 $8.90

Replacements

Order Qty Price Qty for Discount Discount Price Total Savings

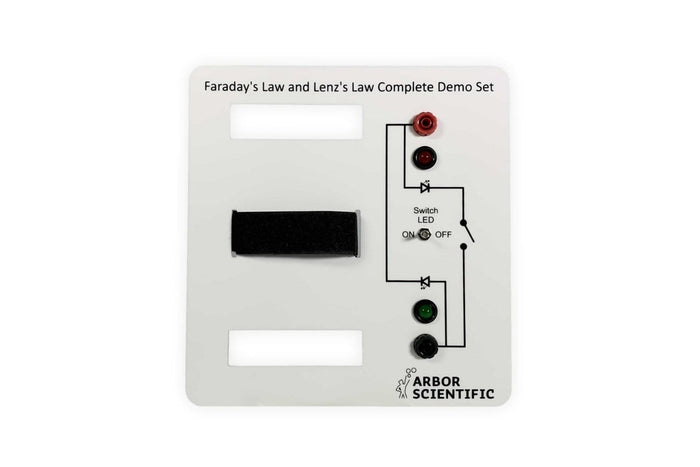

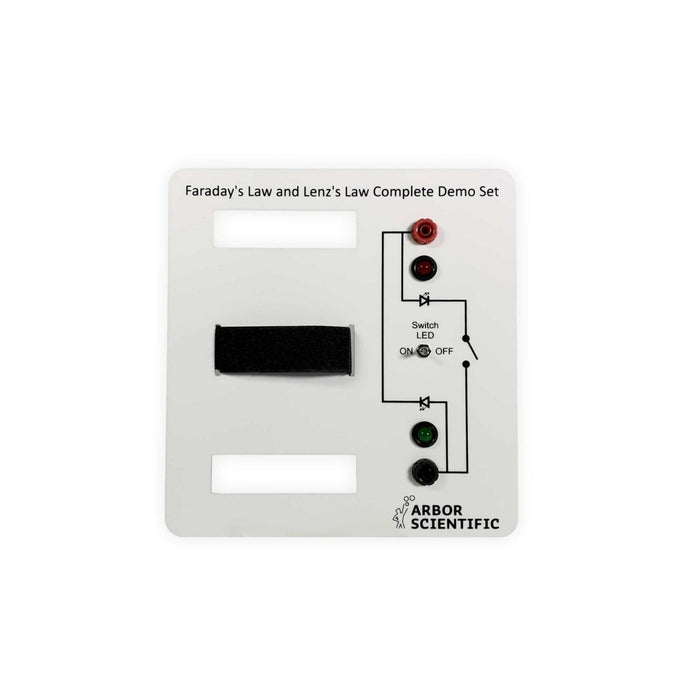

Faraday's Law and Lenz's Law Base Plate Faraday's Law and Lenz's Law Base Plate Item # 98-8500-01
$52.00

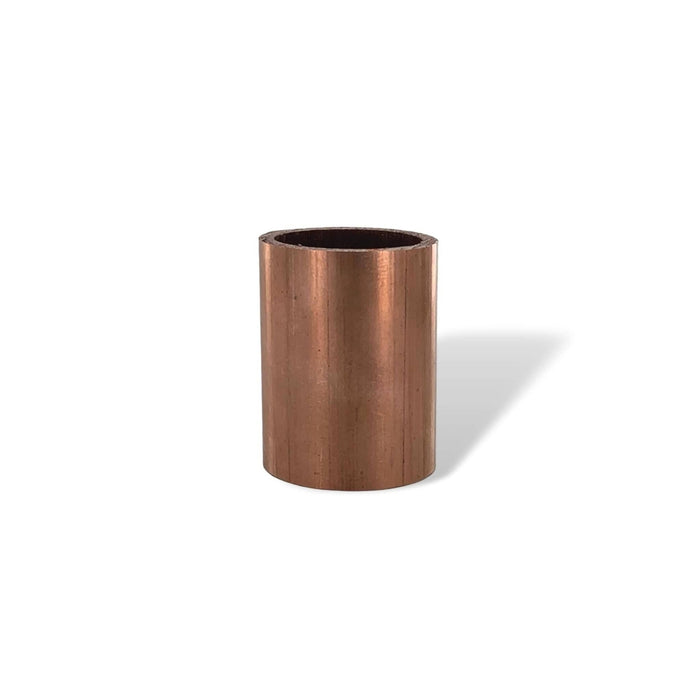

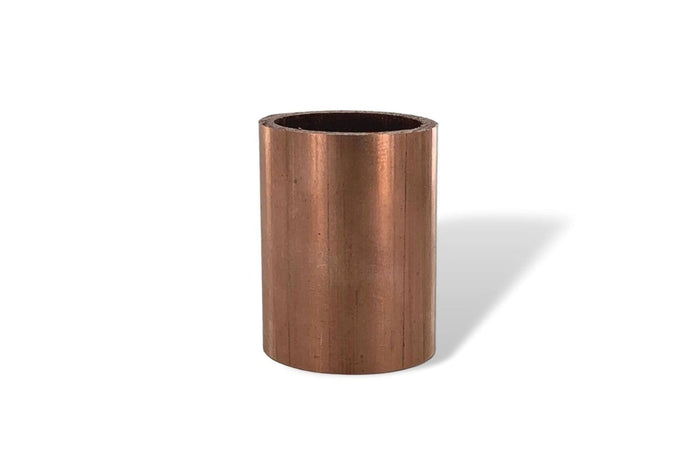

Faraday's Law and Lenz's Law Copper Collar Faraday's Law and Lenz's Law Copper Collar Item # 98-8500-03
$19.00

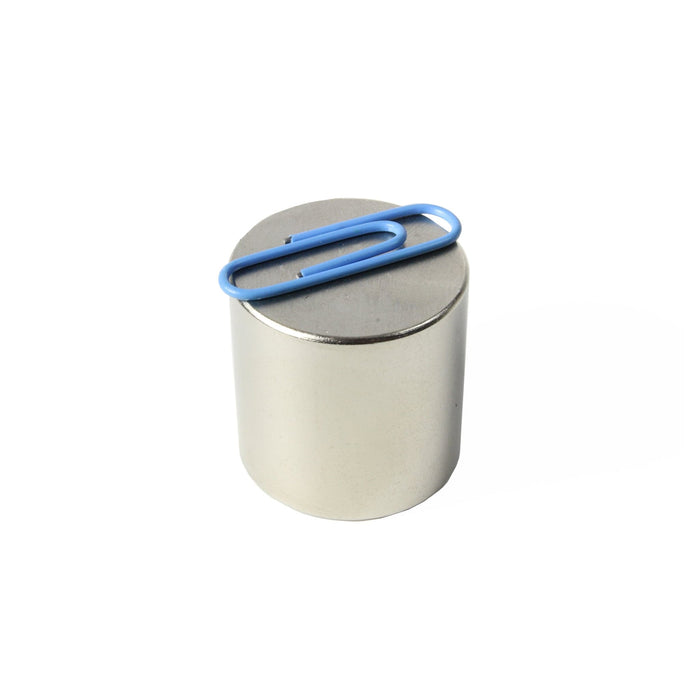

Giant Neodymium Magnet Giant Neodymium Magnet Item # P8-1124
$29.95 10 $27.90

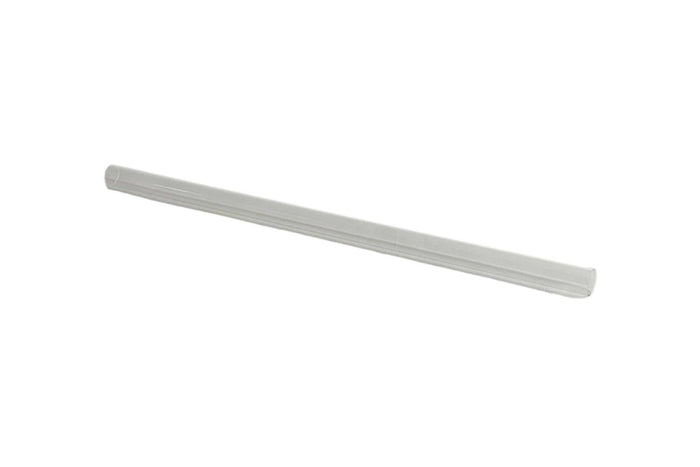

Faraday's Law and Lenz's Law Guide Tube Faraday's Law and Lenz's Law Guide Tube Item # 98-8500-02
$6.25

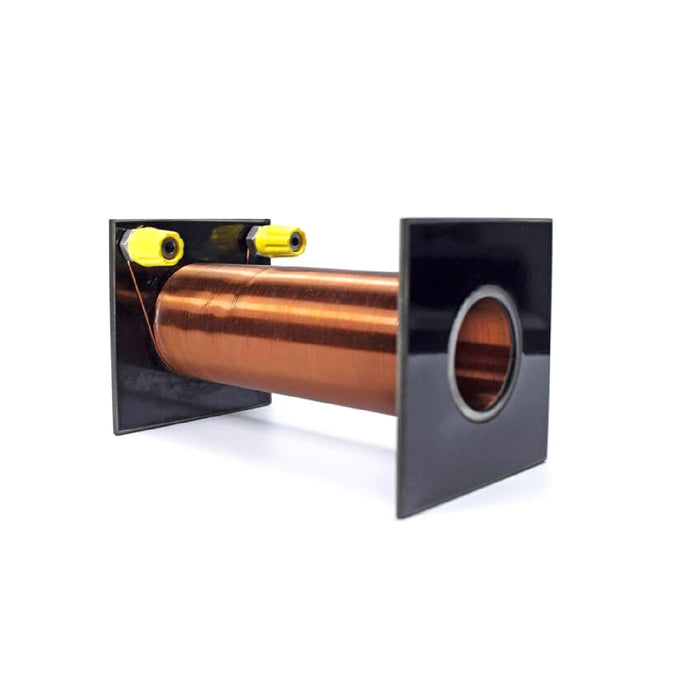

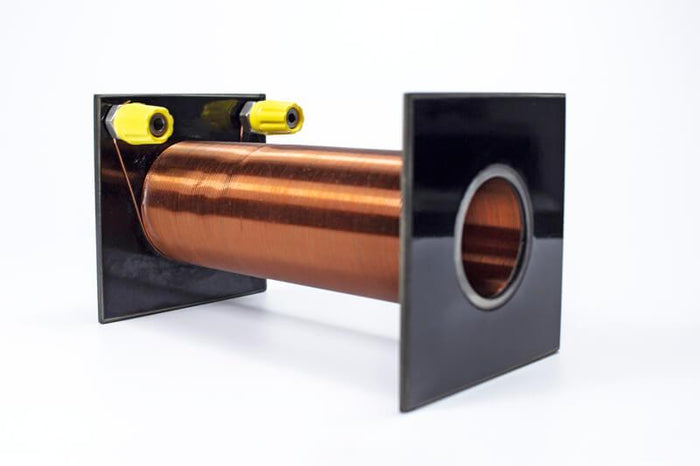

Air Core Solenoid, 5A max Air Core Solenoid, 5A max Item # P8-6600
$37.00 6 $34.80
Banana Plugs 4mm 12 Banana Plugs 4mm 12", 2 Pack Item # 94-3112
$6.25

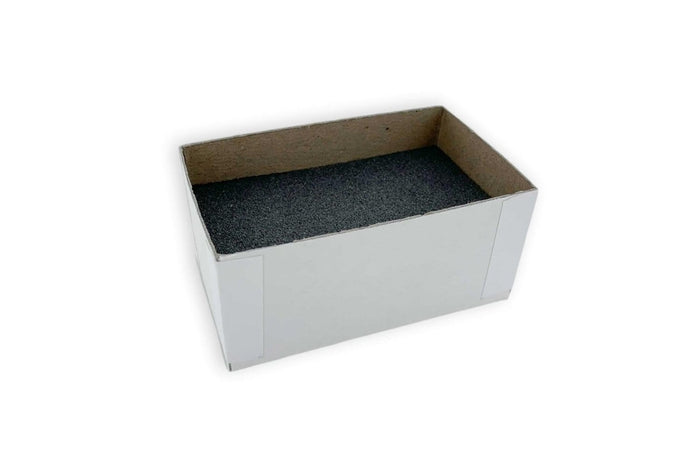

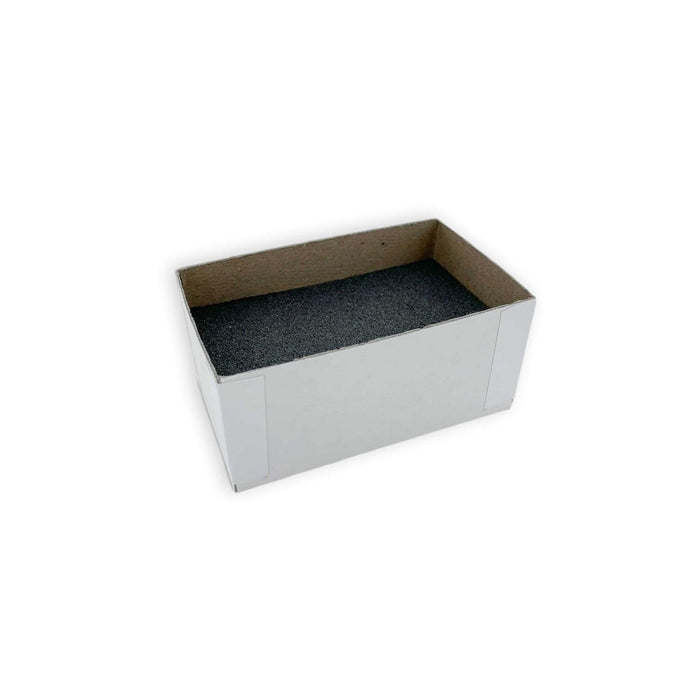

Faraday's Law and Lenz's Law Impact Pillow Faraday's Law and Lenz's Law Impact Pillow Item # 98-8500-04
$4.50
