Best Seller

Mechanical Wave Complete Bundle

Item # P7-1100

Regular price $350.00
Sold out
Shipping calculated at checkout.
Buy 10 and pay $318.00 each!

The Arbor Scientific Mechanical Wave Complete Bundle makes harmonic and motion demonstrations affordable for ALL Physics classrooms.

WARNING: Cancer & Reproductive Harm -- www.P65Warnings.ca.gov

In Stock

Additional Details

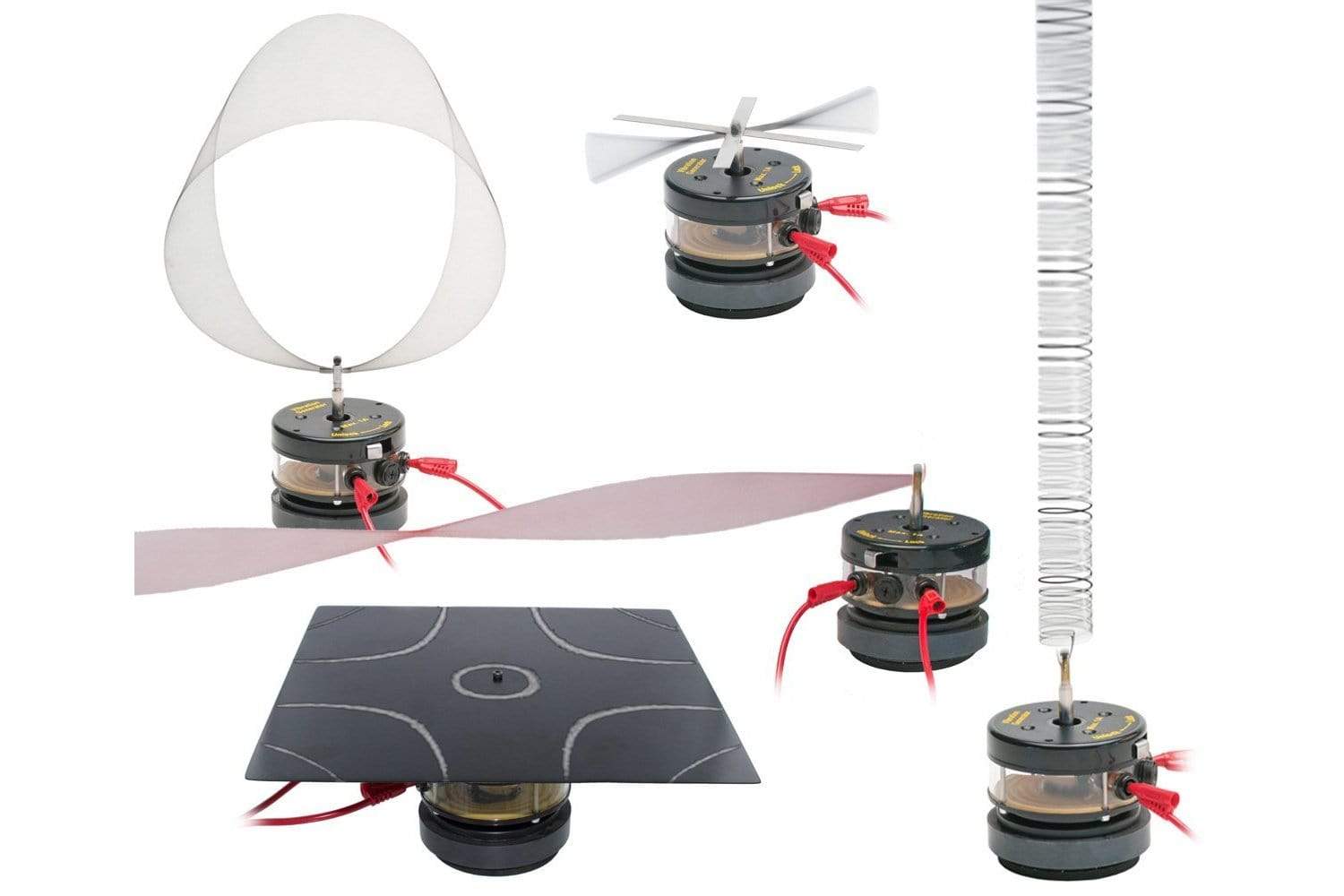

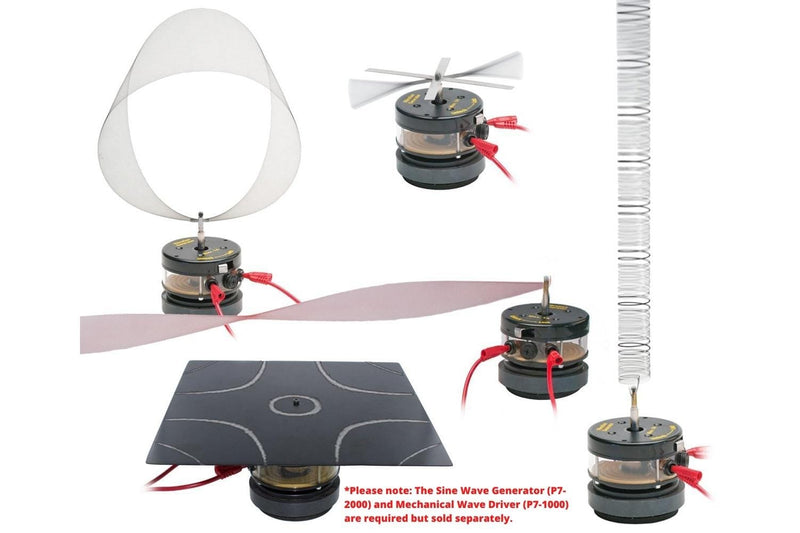

The Arbor Scientific Mechanical Wave Complete Bundle comes with everything you need to drive wave experiments and harmonic and motion demonstrations with ease and accuracy.

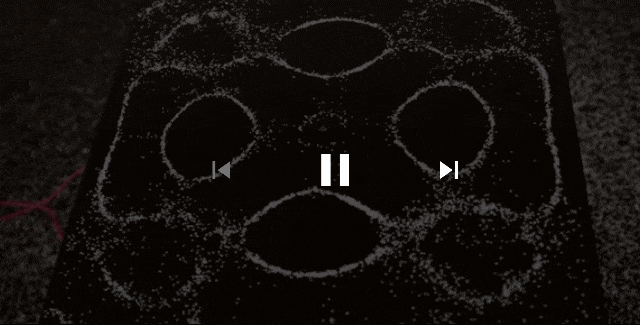

Chladni Plates: The first step to Visualize Acoustics! At special frequencies, standing waves appear on the plate, driving the sand away from the points of large vibration to points of no vibrations. Unique patterns are formed at different resonance frequencies becoming increasingly complex and beautiful as the rate of oscillation increases.

Resonance Wire Loop:
Introduce Bohr’s quantum atom using a classic model. The resonance wire loop demonstrates standing wave patterns when vibrated at resonant frequencies.

Metal Resonance Strips:
Demonstrate resonant modes as a function of length. As vibration frequency increases, shorter length strips reach resonance and visibly oscillate.

Longitudinal Wave Spring:
Experiment with springs, oscillations, and wave theory! A great way to demonstrate and visualize the nodes and antinodes on longitudinal waves.

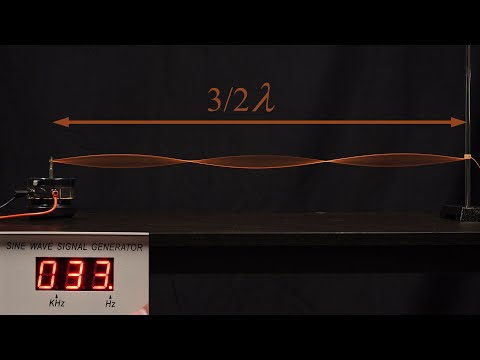

Transverse Wave:
This Wave string is ideal for demonstrating standing waves. Typical experiments such as the resonant frequencies of taut vibrating string can be performed with additional parts.

The Sine Wave Generator features a US plug type B.

NoticeSine Wave Generators are not to be used with voltage converters. Damage or product failure can be experienced when doing so. The customer's responsible for checking for compatibility with electrical service voltage. Product warranty will be voided if usage guidelines are not followed and replacements or refunds will not be offered.

Blog Posts

Resources

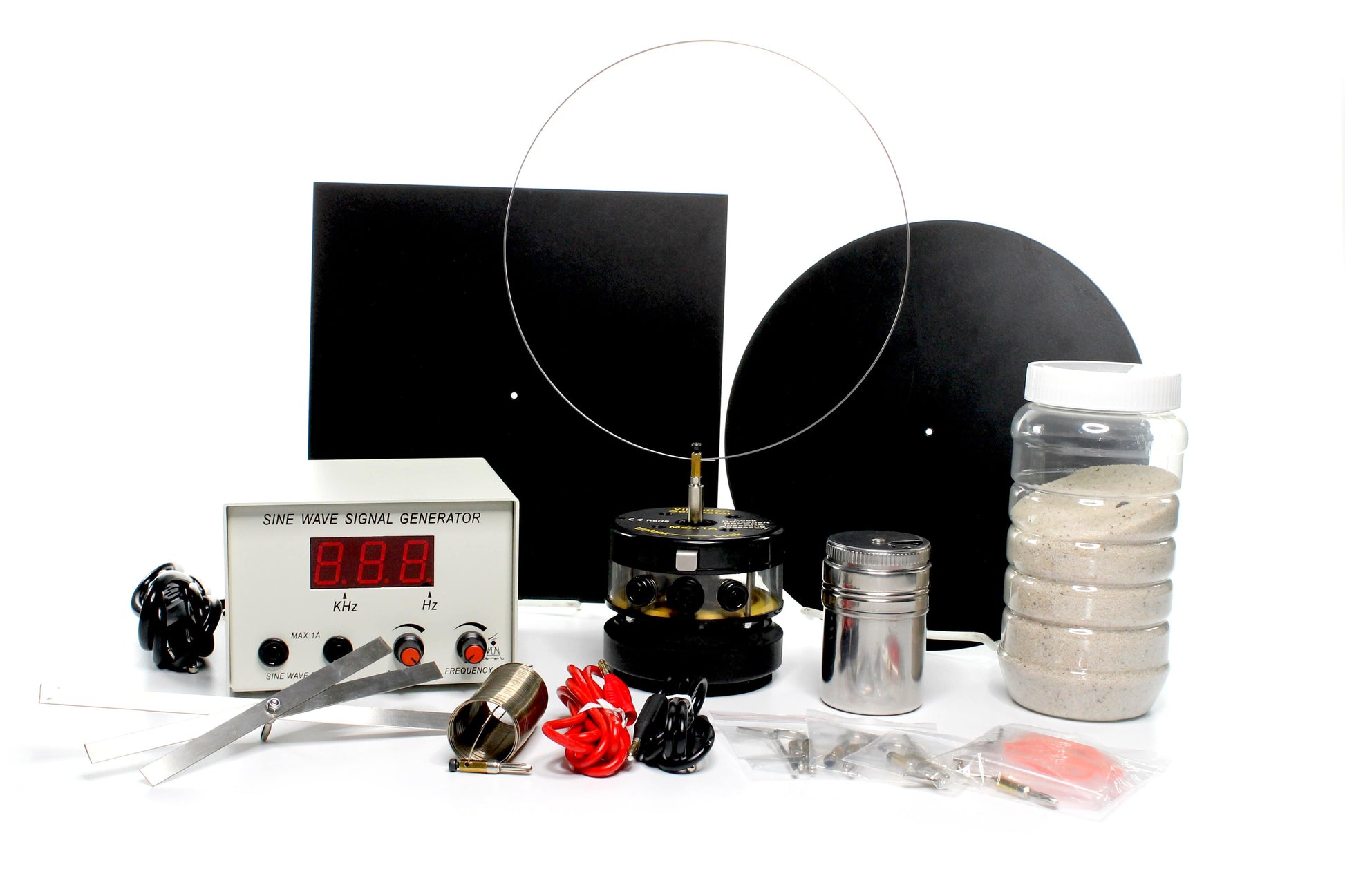

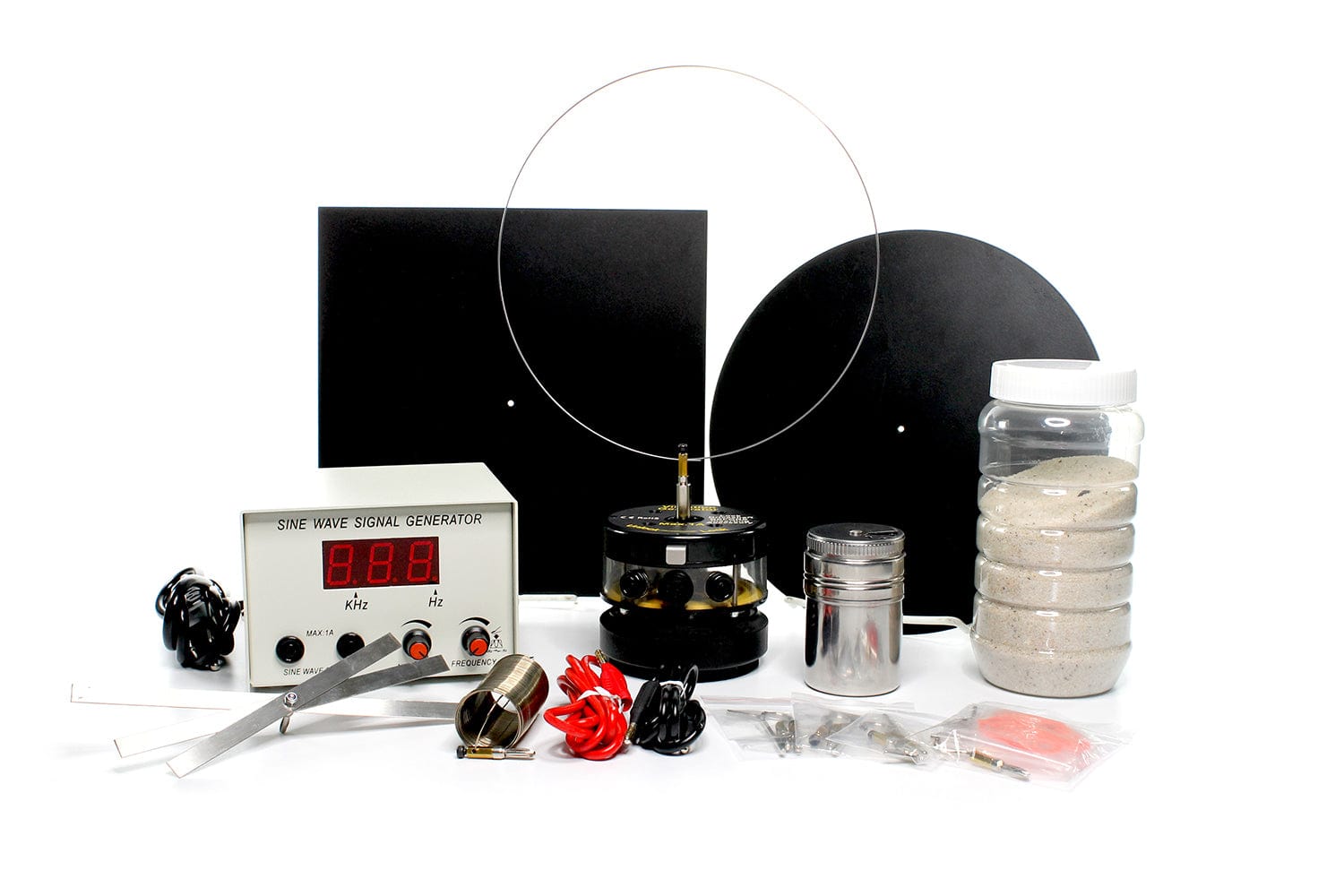

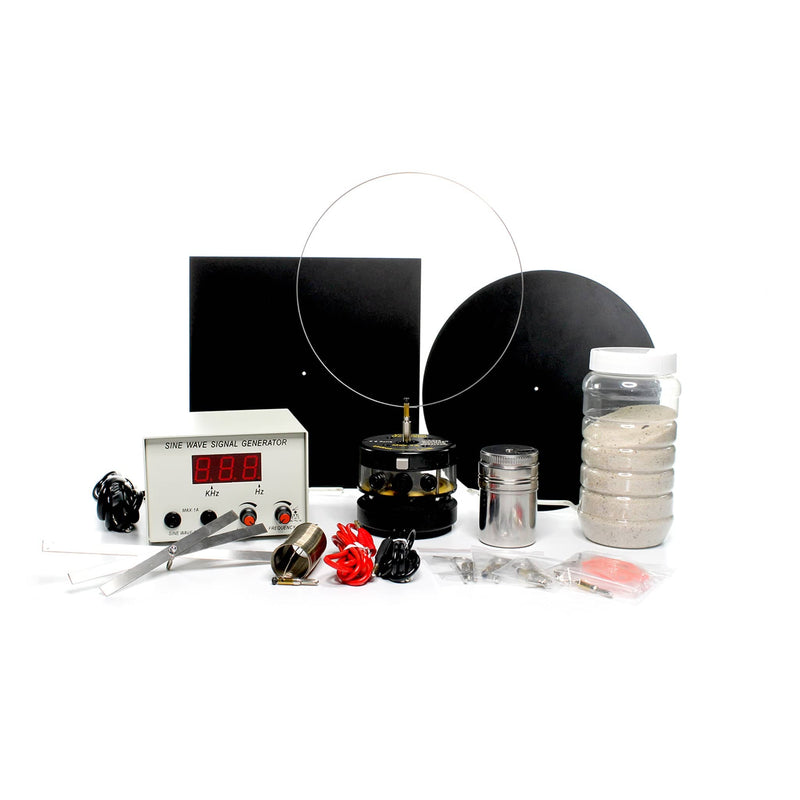

What’s Included

  • Mechanical Wave Driver
  • Sine Wave Generator
  • Longitudinal Wave Spring
  • Resonance Wire Loop
  • Transverse Wave String
  • Chladni Plates Kit
  • Metal Resonance Strips
  • Holders and Mounting Hardware
  • Extra-fine Sand and Shaker

Features & Specs

Specifications

  • The top shaft on the Mechanical Wave Driver fits a standard 4 mm banana plug
  • The bottom screw hole on the Mechanical Wave Driver is an M6 (6 mm) threaded hole

Accessories

Order Qty Price Qty for Discount Discount Price Total Savings
Digital Signal Generator Digital Signal Generator Item # P6-8080
$399.00

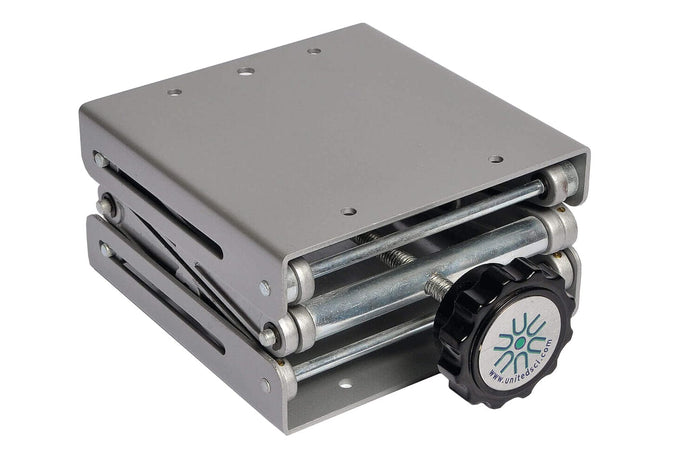

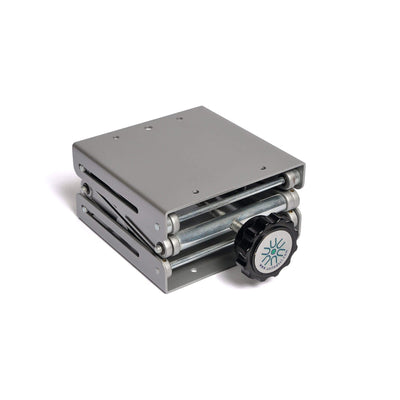

Laboratory Jack, 6 Laboratory Jack, 6"x6" Item # C1-2000
$93.45 6 $88.00

Replacements

Order Qty Price Qty for Discount Discount Price Total Savings

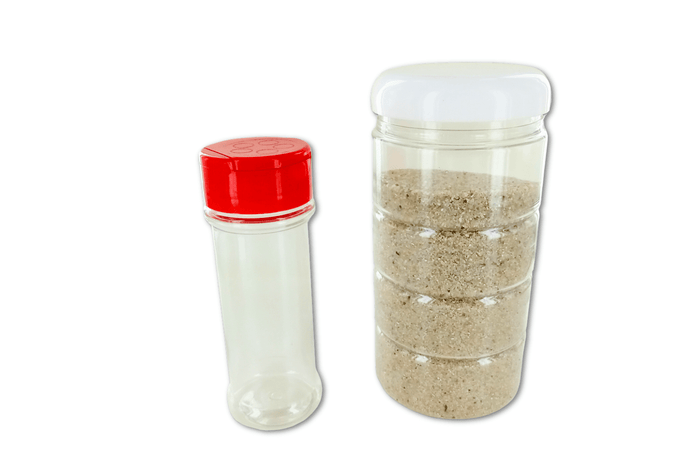

Sand and Shaker Sand and Shaker Item # P7-1500-07
$10.00
Holder and Allen Key Holder and Allen Key Item # P7-1500-06
$7.00
Longitudinal Wave Spring Longitudinal Wave Spring Item # P7-1500-01
$17.00 6 $16.00
Resonance Wire Loop Resonance Wire Loop Item # P7-1500-02
$12.00
Transverse Wave String Transverse Wave String Item # P7-1500-03
$9.00 10 $8.10
Chladni Plates Kit Chladni Plates Kit Item # P7-1500-04
$79.00 10 $71.00
Metal Resonance Strips Metal Resonance Strips Item # P7-1500-05
$15.00
Sine Wave Generator Sine Wave Generator Item # P7-2000
$119.00 6 $113.00
