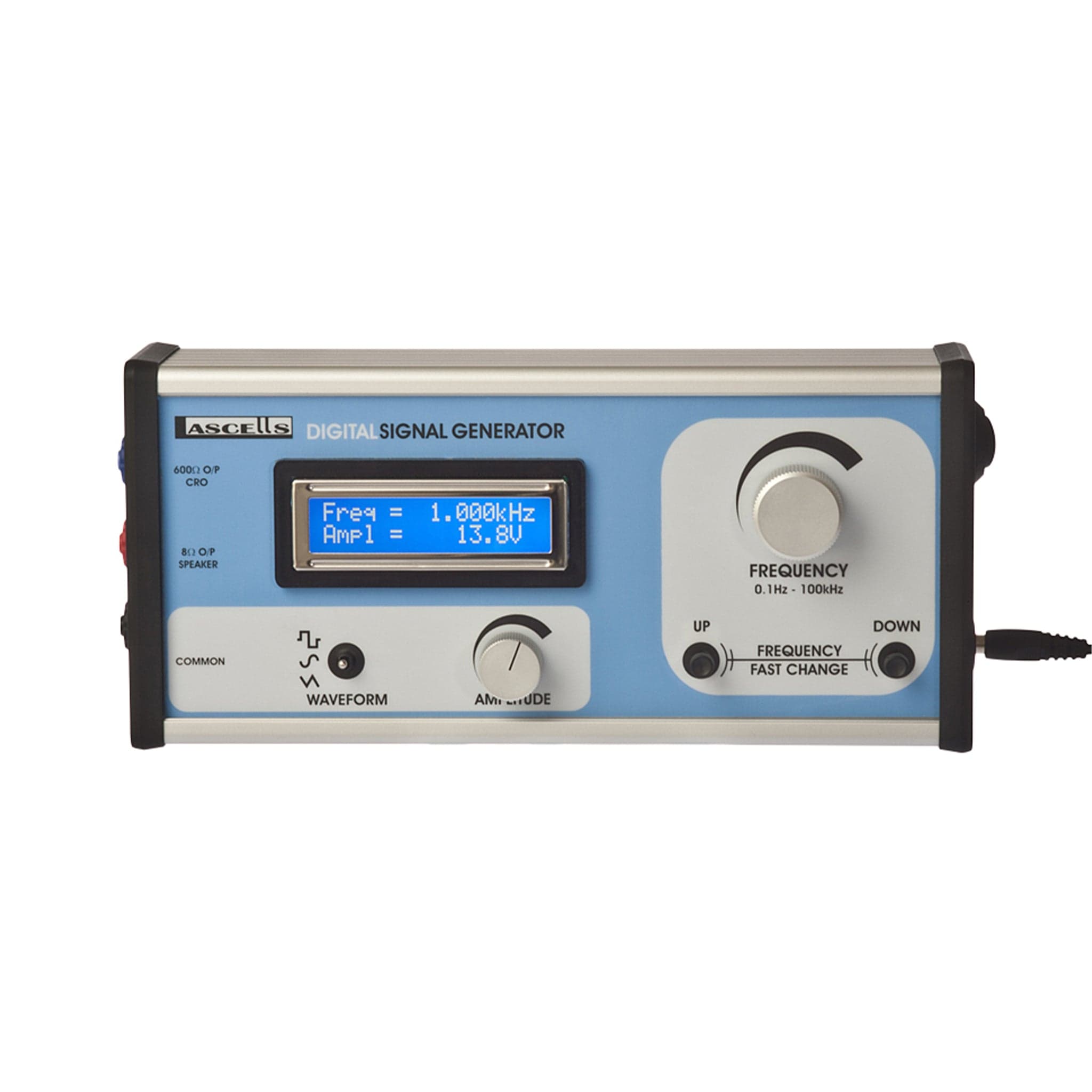

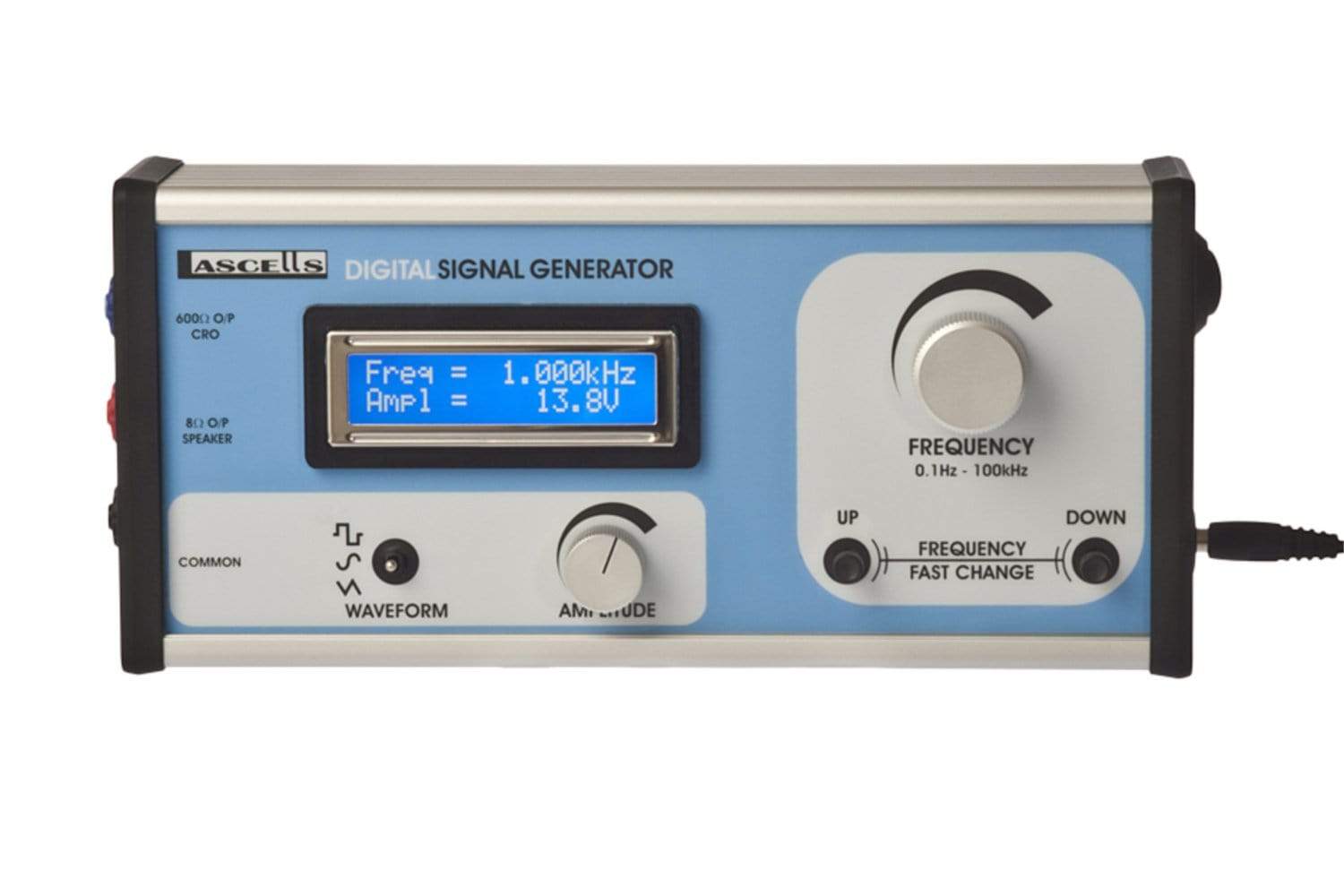

Digital Signal Generator
Item #P6-8080
$450.00
Bundle Discount
Precision waveforms for waves, sound, and electronics labs
Give students precise, repeatable control over waves and signals with the Digital Signal Generator. This classroom-ready unit provides a continuous frequency sweep from 0.1 Hz to 100 kHz (in varying resolutions), using fast-change buttons and a fine-adjust knob—so students can dial in exact frequencies without switching ranges. Clear digital readout and intuitive controls make it easy to explore resonance, harmonics, and system response in real time.
The generator outputs sine, triangle, and square waveforms with variable amplitude up to 24 V, delivered through standard 4 mm safety sockets. Connect directly to an oscilloscope, Mechanical Wave Driver, or an 8-ohm speaker to visualize and hear how changing frequency, amplitude, and waveform shape affects physical systems.
Why Teachers Love the Digital Signal Generator
- No range switching required: Continuous 0.1 Hz–100 kHz (in varying resolutions) sweep with fast and fine adjustment lets students hunt resonance smoothly and accurately.
- Multiple waveforms, one device: Sine, square, and triangle outputs support waves, sound, and electronics labs.
- High-output versatility: Variable amplitude up to 24 V drives speakers, wave drivers, and electronic circuits with ease.
- Student-safe, classroom-ready connections: Standard 4 mm sockets simplify hookups and reduce setup errors.
Resources
Product Details
Works With (Arbor Scientific & Classroom Standards)

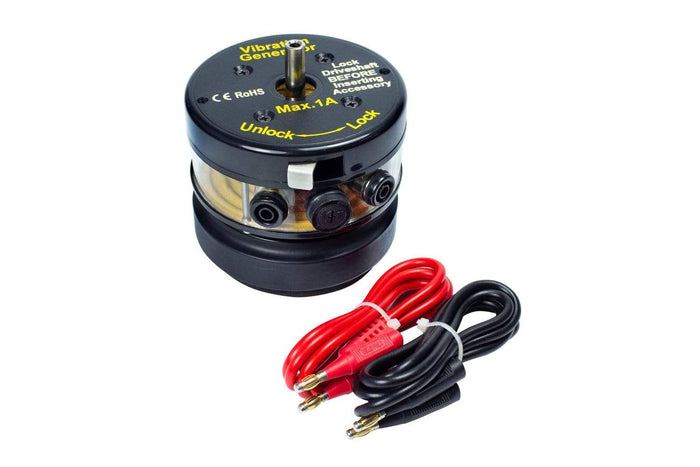

- Mechanical Wave Driver — standing waves, resonance, harmonics, nodes, and antinodes

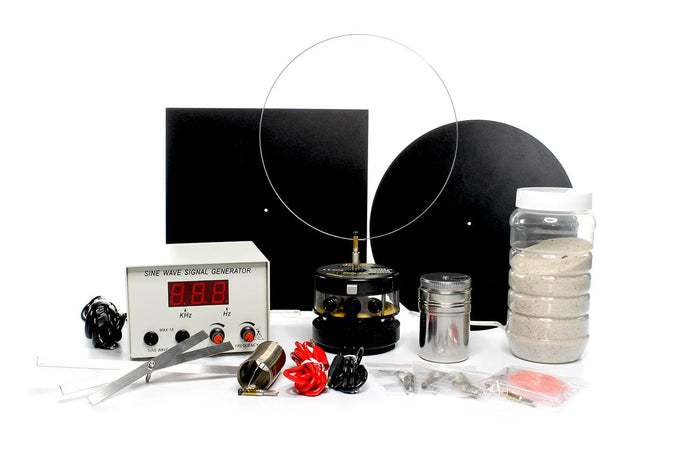

- Chladni Plates Kit — visualizing normal modes and nodal patterns
- 8-Ohm Speaker — sound waves, pitch, frequency, and waveform shape
- Oscilloscopes — viewing and measuring sine, square, and triangle waveforms
- Basic AC Circuit Components — signal response, filters, and waveform effects
This Digital Signal Generator for classroom physics is a go-to tool for teaching mechanical waves, sound, resonance, and introductory electronics with precision and repeatability.
Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.
Product Specifications
Specs:
Input: 100 – 240V 50/60Hz mains plug-top adaptor providing 24V dc
Frequency range: 0.1Hz to 100kHz continuous sweep
Freq. Control resolution: Between 0.1 and 0.5% of the indicated value
Output 1: 24V Pk to Pk into 600 ohms for electronics
Output 2: 4.5V Pk to Pk into 8 ohms for transducers Amplitude Control resolution 0.1V
Amplitude Control resolution: 0.1V
Waveforms: Sine, square and triangle.
Size: 230mm x 102mm x 60mm
Weight: 0.7 Kg
