Optical Voice Link Kit

Item # P2-5300

Regular price $80.00
Regular price Sale price On Sale $80.00
Sold out
Shipping calculated at checkout.
Buy 6 and pay $75.00 each!

With this kit, you will assemble a fiber-optics system capable of transmitting your voice from microphone to speaker using a light beam guided by a fiber cable. No prior knowledge of fiber optics is necessary.

In Stock

Additional Details

Introduce your students to the mysteries of fiber optics!

Provide an effective hands-on demonstration of the science behind lightwave communication. With this kit, you will assemble a fiber-optics system capable of transmitting your voice from microphone to speaker using a light beam guided by a fiber cable. No prior knowledge of fiber optics is necessary.

The unassembled kit may be used to supplement fiber-optic curricula in the classroom, or as an extra-curricular science project. An ideal kit for the project-oriented instructor. Kit contains: Electronic Components, Printed Wiring Boards, 10 feet of Fiber Cable Tutorial Guide, and Assembly Instructions.

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.

Resources

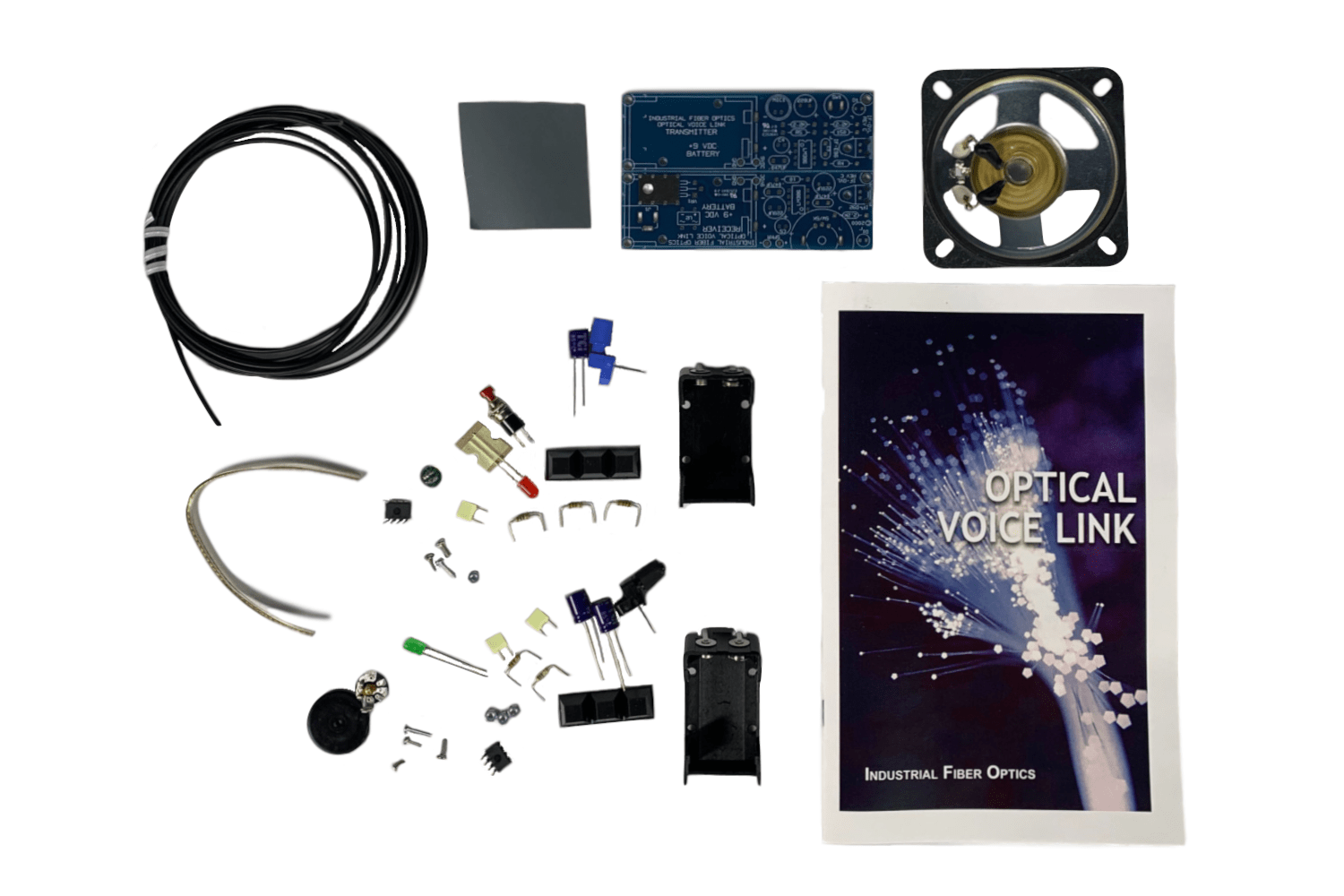

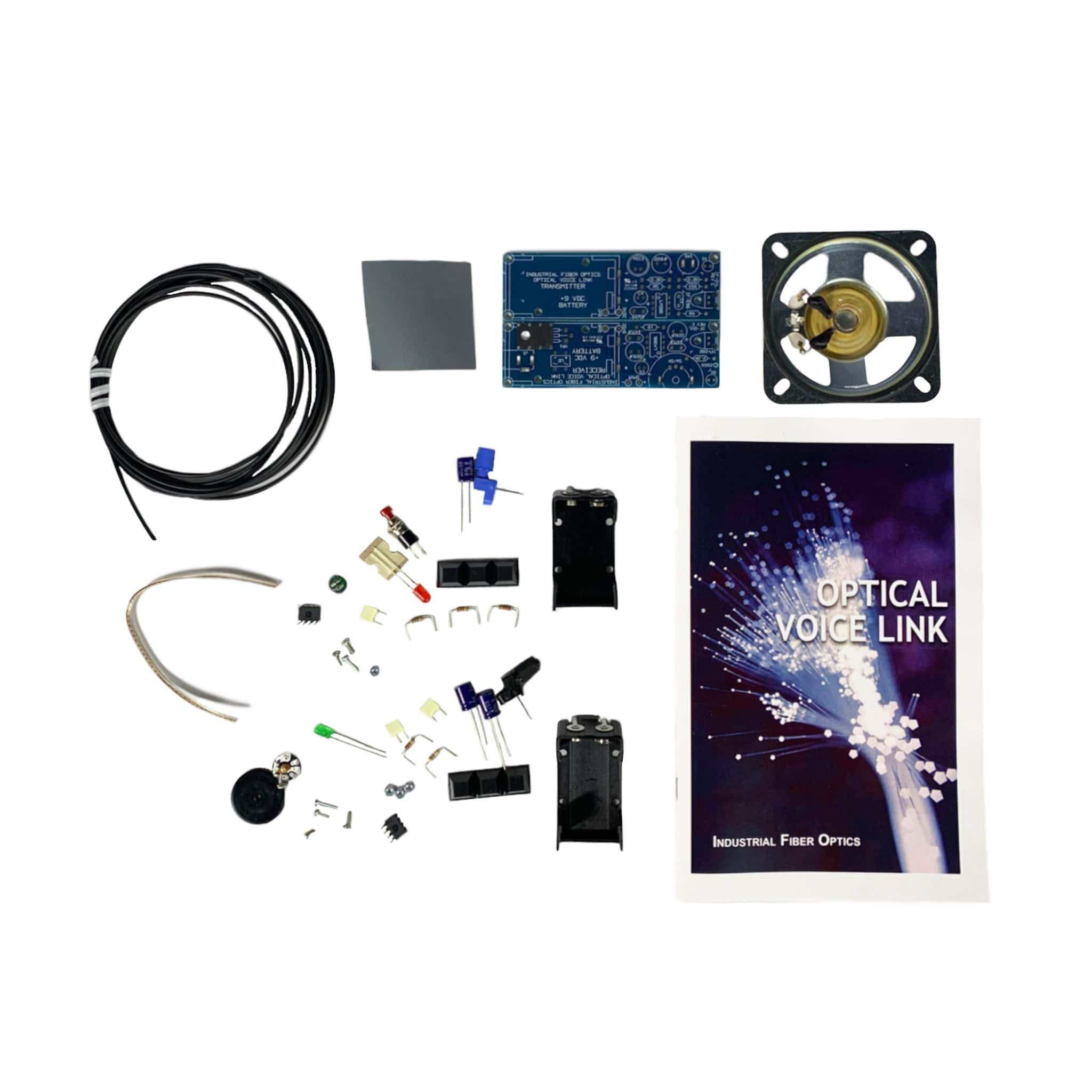

What’s Included

  • 3   220 µf electrolytic capacitor
  • 3   .047 µf Mylar ® capacitor
  • Red LED
  • Green LED
  • Fiber optic red LED
  • 2 Battery holders
  • 4 Rubber mounting bumpers
  • Microphone
  • Trans. printed wiring board
  • 2.2 k 1/4 watt resistor (3)
  • 5 k potentiometer with on/off switch
  • 150  1/4 watt resistor
  • 10  1/4 watt resistor
  • Momentary switch
  • 6 inches speaker wire
  • Rec. printed wiring board
  • fiber optic phototransistor
  • Audio amplifier
  • 3-inch speaker
  • 3 meters 1000 µm plastic fiber
  • 600 grit polishing paper
