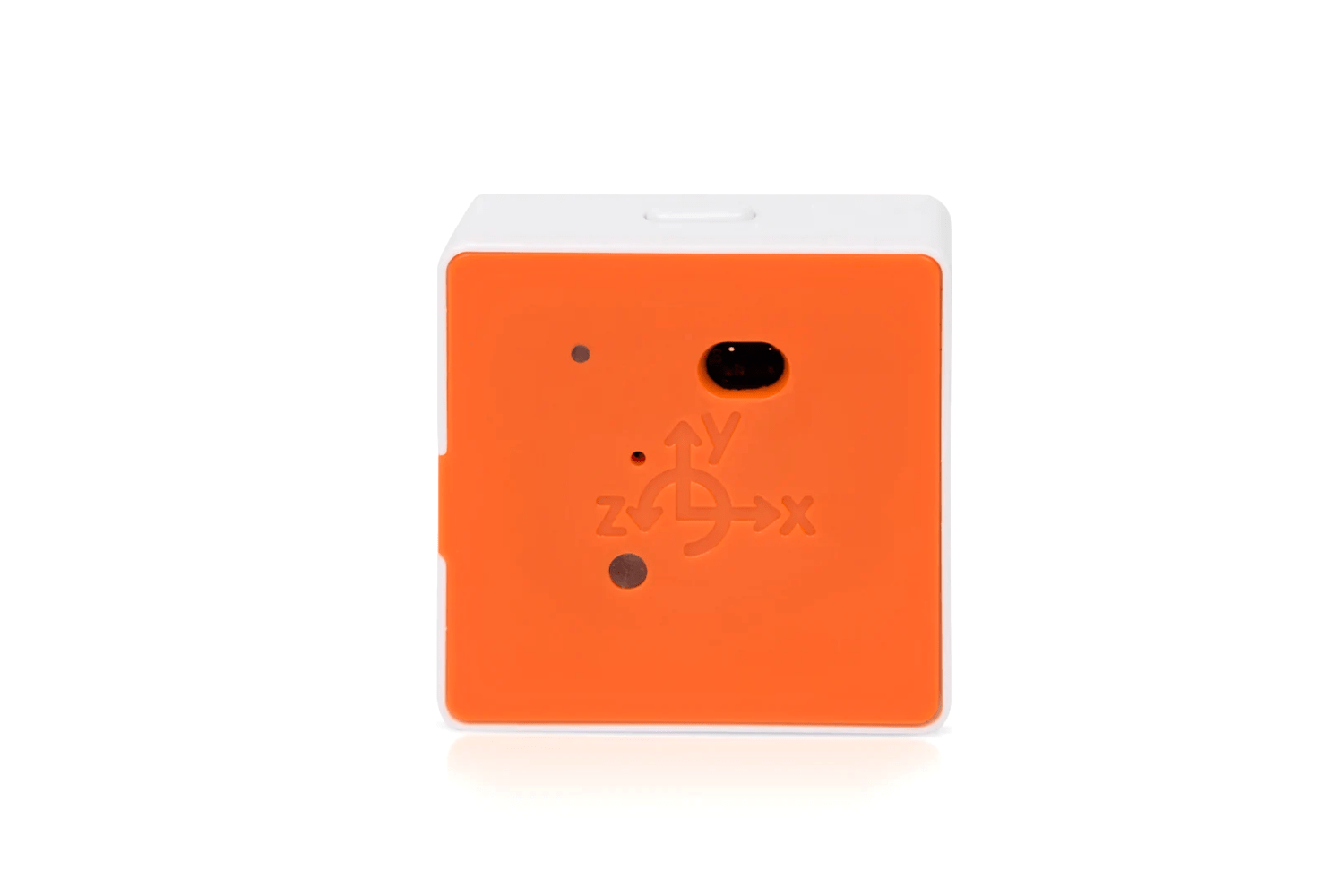

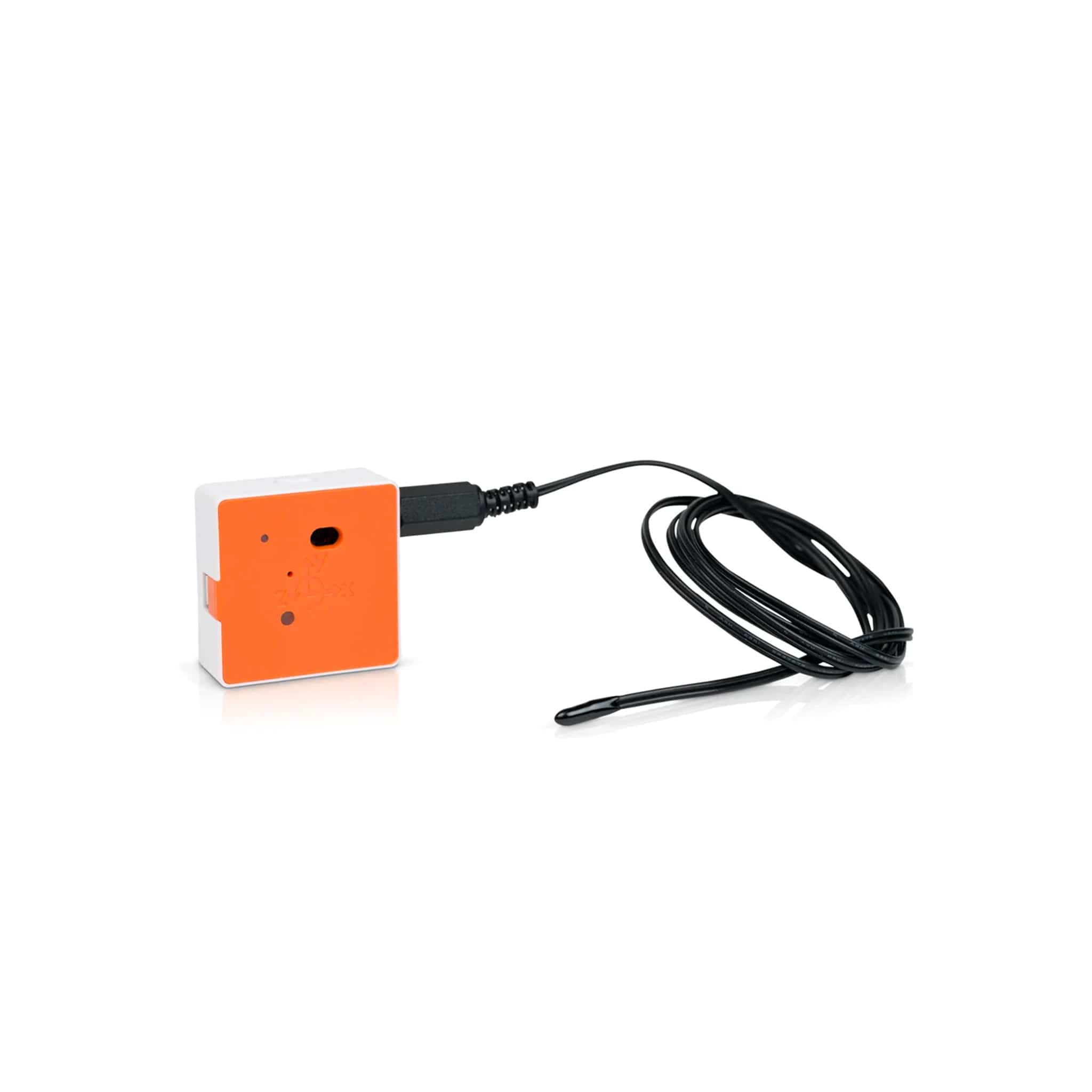

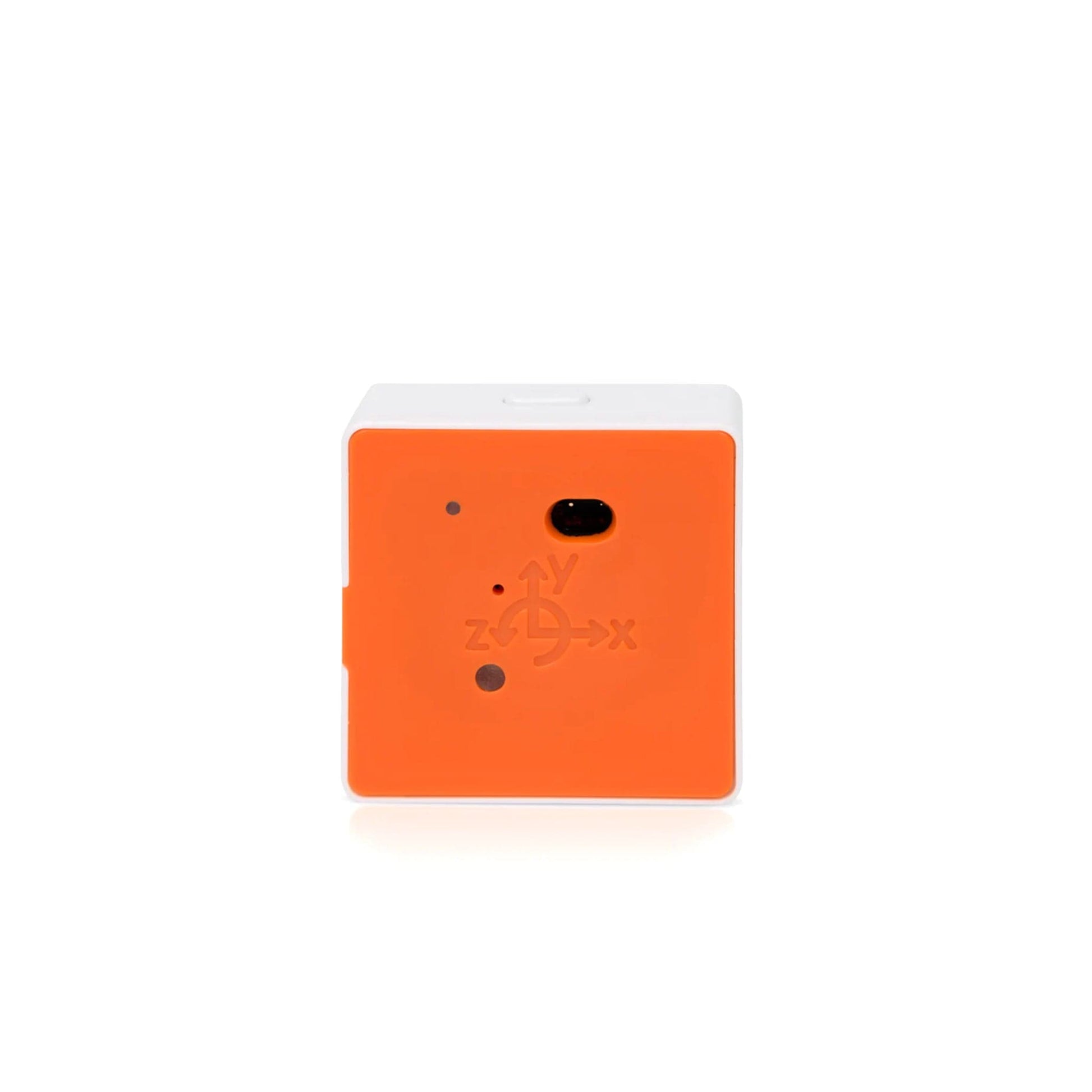

PocketLab Voyager 2

Item # P4-1001

$198.00
Sold out
Shipping calculated at checkout.

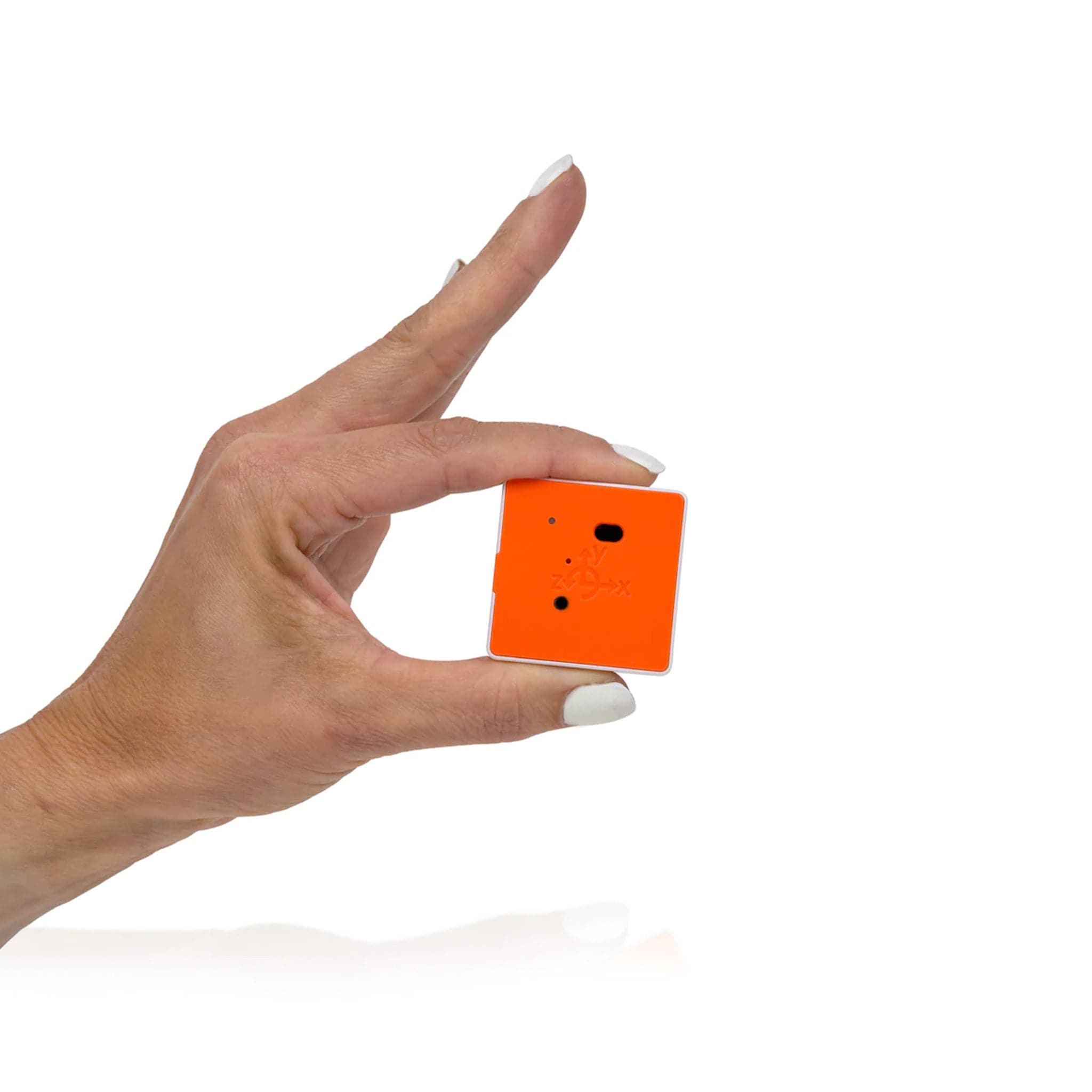

This robust little multi-sensor can be attached to just about anything in your classroom. Voyager 2 is a pocket-sized array of popular science sensors, making it the most versatile multi-sensor on the market.

WARNING: Cancer & Reproductive Harm -- www.P65Warnings.ca.gov
In Stock

Other Options

Order
Qty		 Price Qty for
Discount		 Discount
Price		 Total
Savings

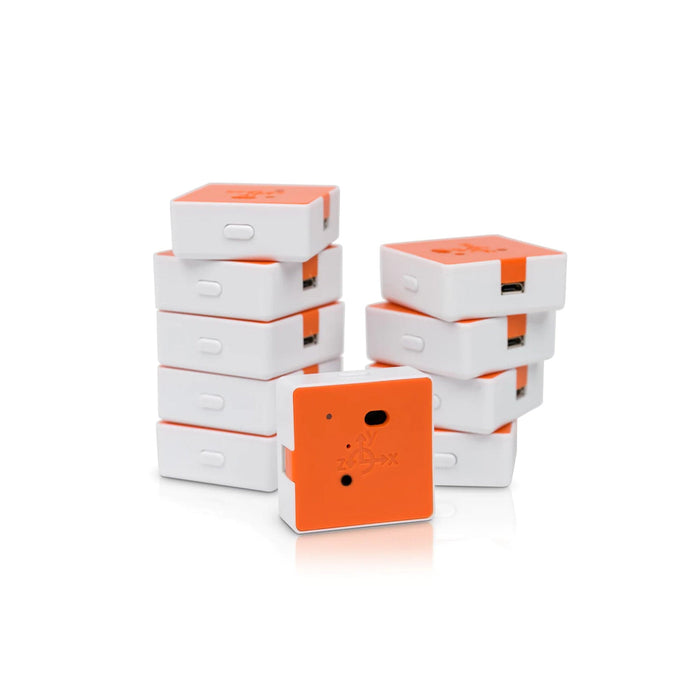

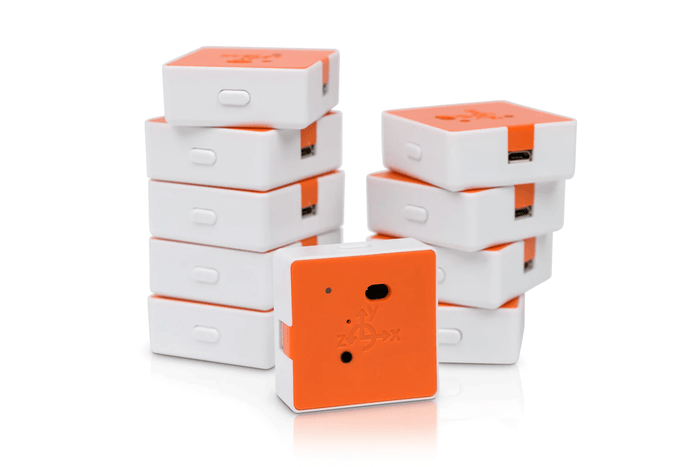

PocketLab Voyager 2 10-Pack PocketLab Voyager 2 10-Pack Item # P4-1011
$1,980.00

Additional Details


Voyager 2 is a state-of-the-art sensor that boasts a wide range of capabilities, making it a powerful tool for both educational and professional use. Its enhanced rangefinder capabilities and high data rates allow for top-notch acceleration data and highly accurate compass readings, making it more powerful and precise than any other classroom sensor currently available on the market.

With the ability to measure a wide variety of factors, including motion, orientation, altitude, light, and magnetic fields, the Voyager 2 sensor is a versatile and multifaceted device that can be used for a wide range of applications. This means that it can be used in a variety of settings, from classrooms and labs to fieldwork and research.

In addition to its advanced sensor capabilities, Voyager 2 also comes with a number of convenient features that make it even more user-friendly. For example, it includes a digital lab Notebook (available for free) or Notebook Pro (subscription), which allows users to easily organize and store their data. This notebook also comes with a built-in library of lesson plans, making it easy to get started with the sensor and to use it in the classroom.



Browse All PocketLab Sensors HERE


See the differences between the voyager and voyager 2 HERE

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.

Videos

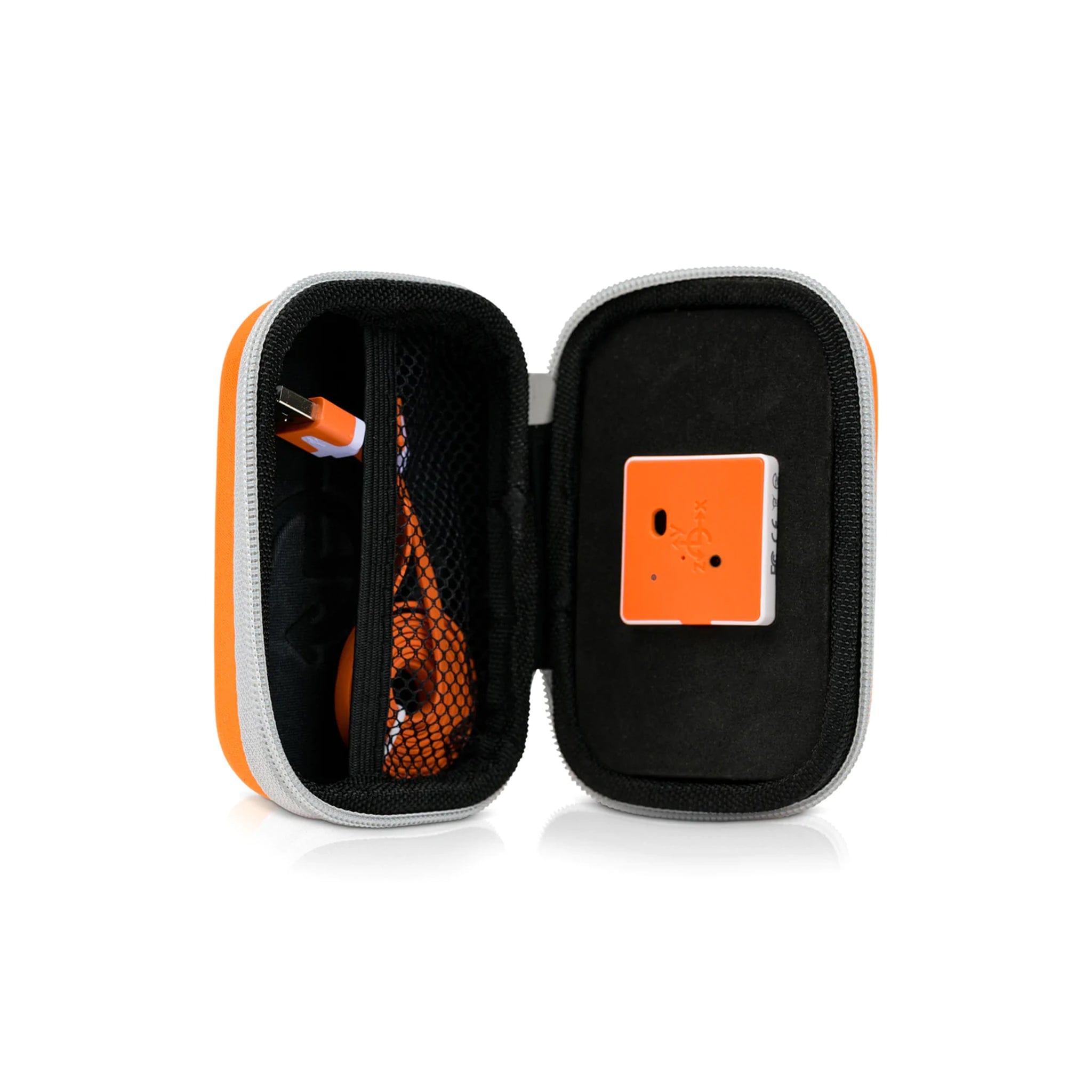

What’s Included

  • PocketLab Voyager 2 Sensor

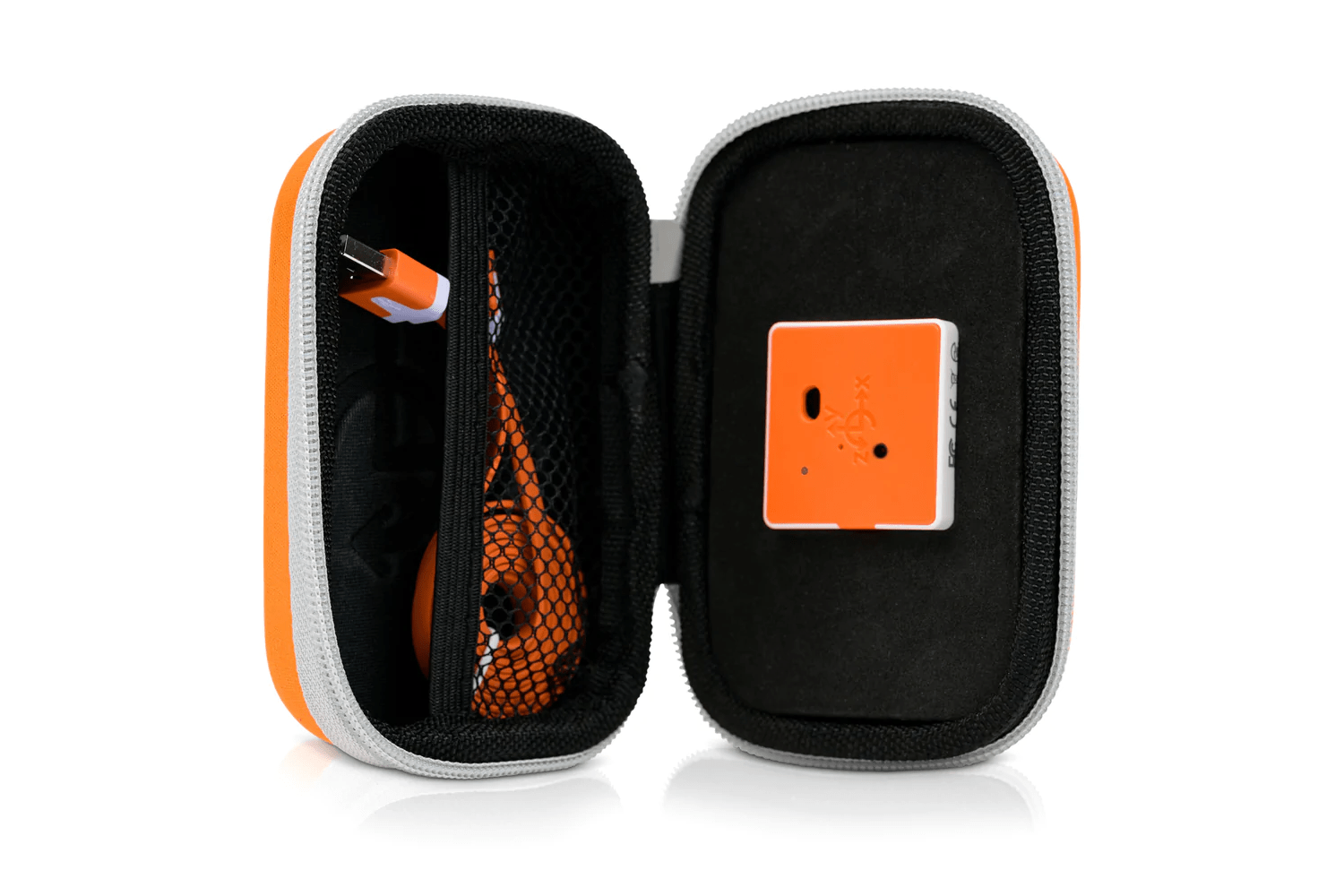

  • Protective Carrying Case

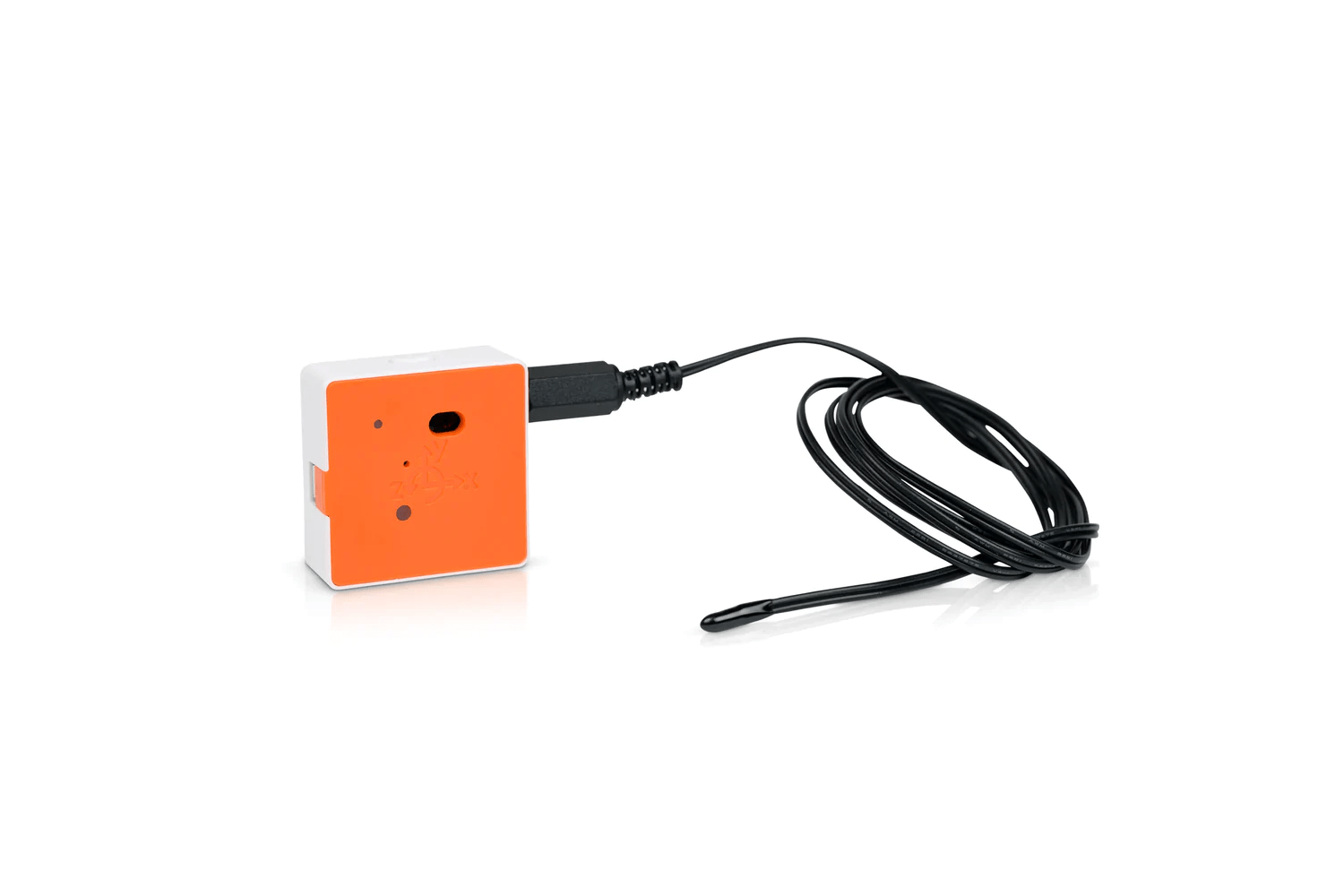

  • Temperature Probe
  • Micro USB charging cable

Features & Specs

Features

  • Stream data in real-time then analyze the recorded data in PocketLab Notebook
  • Compatible with iOS, Android, Chrome OS, Windows 10, Linux, and Mac OS
  • Bluetooth 4.0 wireless connection
  • Record thousands of measurements to the onboard memory
  • Rechargeable lithium polymer batteries with 20 hours of operating time per charge



Specs

  • Battery Life: Up to 20 Hours
  • Wireless Range: 150 ft Line-of-Sight
  • Memory: 60,000 Data Readings
  • Durability: 2 m (6 ft) drop protection

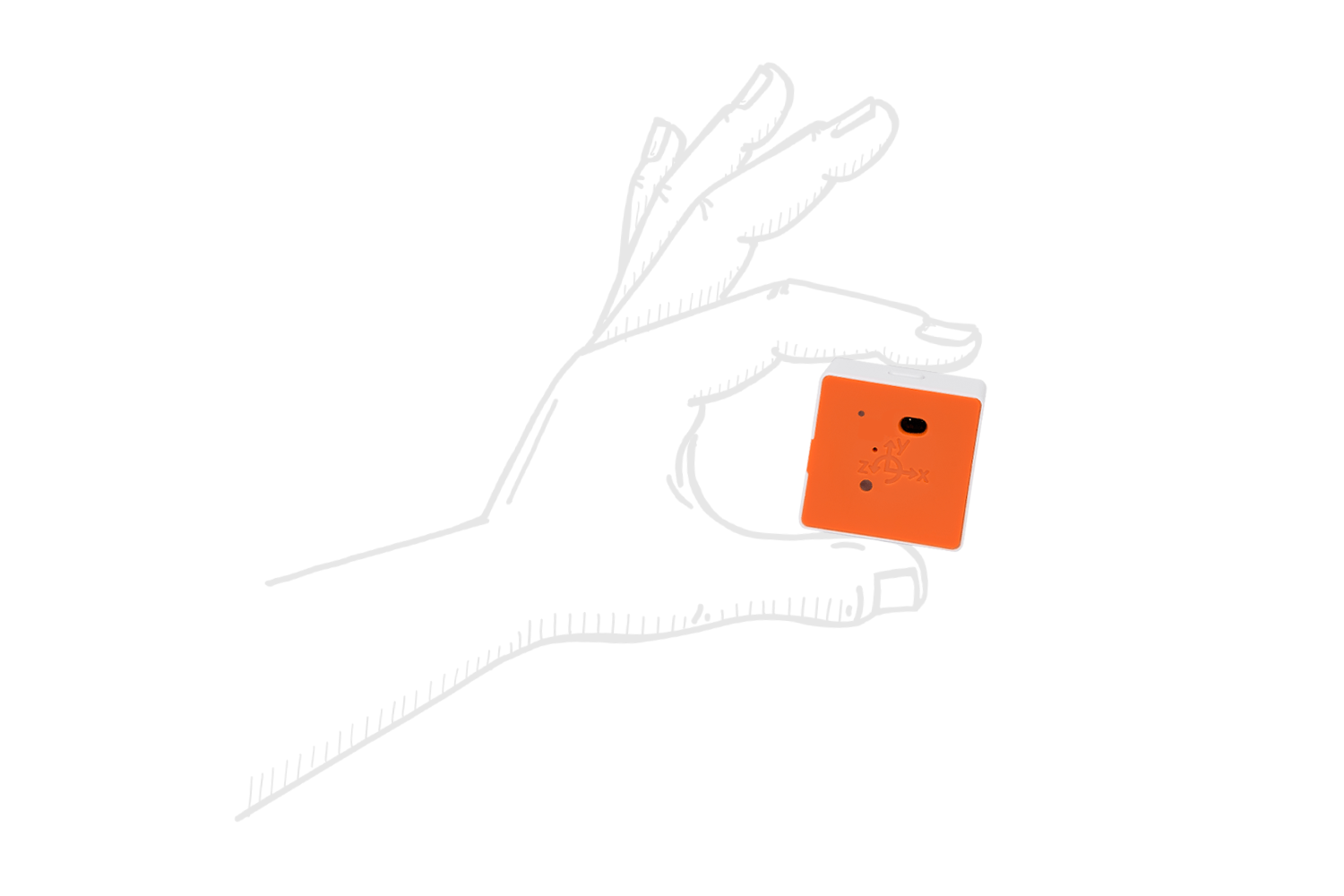

  • Dimensions: 3.8 x 3.8 x 1.5 cm (1.5 x 1.5 x .06 in)



Sensor Specifications

Accelerometer

  • Range: ± 16g
  • Resolution: 0.008 g @ 94 Hz
  • Data Rate: - 50 samples/sec (real-time)- 200 samples/sec  (crash mode)

Gyroscope

  • Range: ± 2000 deg/sec
  • Resolution: 0.1 deg/sec @ 92 Hz
  • Data Rate: - 50 samples/sec (real-time)- 200 samples/sec  (burst mode coming soon)

Magnetometer

  • Range: ± 4900 uT
  • Resolution: 0.15 uT
  • Data Rate: 100 samples/sec

Altitude

  • Range: -17,400 - 31,000 ft
  • Resolution: 11 cm (4 in)
  • Absolute Accuracy: 10 m (33 ft)
  • Data Rate: 50 samples/sec

IR Rangefinder

  • Range: 0.001 - 6 m (0.04 - 20 ft)
  • Resolution: 1 mm (0.04 in)
  • Absolute Accuracy: 5% of reading
  • Data Rate:  33 samples/sec
  • Field of View: 25 degrees

Compass

  • Range: 360 degrees
  • Accuracy: ± 1 degree
  • Data Rate: 50 samples/sec

Barometric Pressure

  • Range: 30 - 1100 kPa
  • Pressure Resolution: 1.3 Pa
  • Absolute Accuracy: 0.1 kPa

Humidity

  • Range: 0 - 100 %RH
  • Resolution: 1 %RH
  • Absolute Accuracy: 3 %RH

Light

  • Range: .01 - 128,000 Lux
  • Spectrum: 220 - 1000 nm
  • Data Rate: 4000 samples/sec

Ambient Temperature

  • Range: -40 - 65 C  (-40 - 150 F)
  • Resolution: 0.01 C (0.02 F)
  • Absolute Accuracy: 0.5 C (0.9 F)

Temperature Probe

  • Range: -40 - 105 C (-40 - 221 F)
  • Resolution: 0.2 C (0.4 F)
  • Accuracy: 0.5 C (0.9 F)

Standards

Next Generation Science Standards

Students who demonstrate understanding can:

  • MS-PS2-1: Apply Newton's Third Law to design a solution to a problem involving the motion of two colliding objects.
  • MS-PS2-2: Plan an investigation to provide evidence that the change in an object's motion depends on the sum of the forces on the object and the mass of the object.
  • MS-ESS1-1: Develop and use a model of the earth-sun-moon system to describe the cyclical patterns of lunar phases, eclipses of the sun and moon, and seasons.

Accessories

Order Qty Price Qty for Discount Discount Price Total Savings

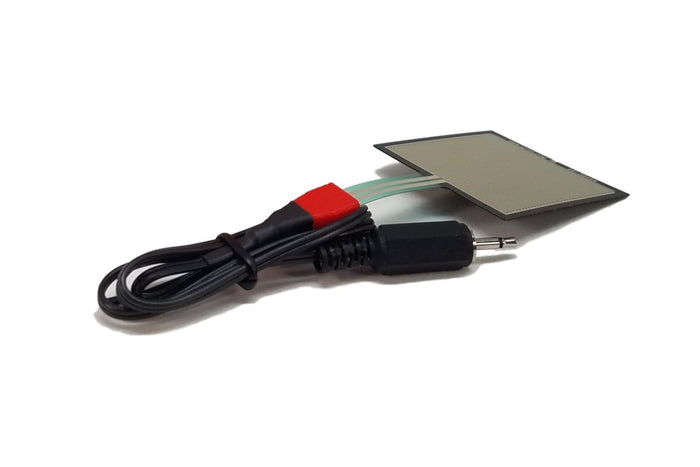

Pocketlab Voyager Tactile Pressure Sensor Pocketlab Voyager Tactile Pressure Sensor Item # P4-1025
$34.00
Silicone Case for PocketLab Voyager Silicone Case for PocketLab Voyager Item # P4-1030
$10.00

Replacements

Order Qty Price Qty for Discount Discount Price Total Savings

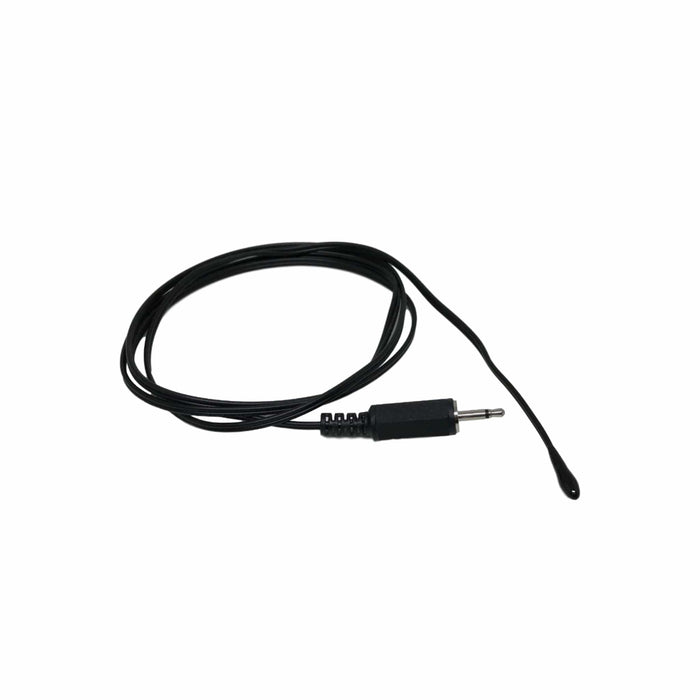

PocketLab Voyager Temperature Probe PocketLab Voyager Temperature Probe Item # P4-1020
$14.00
