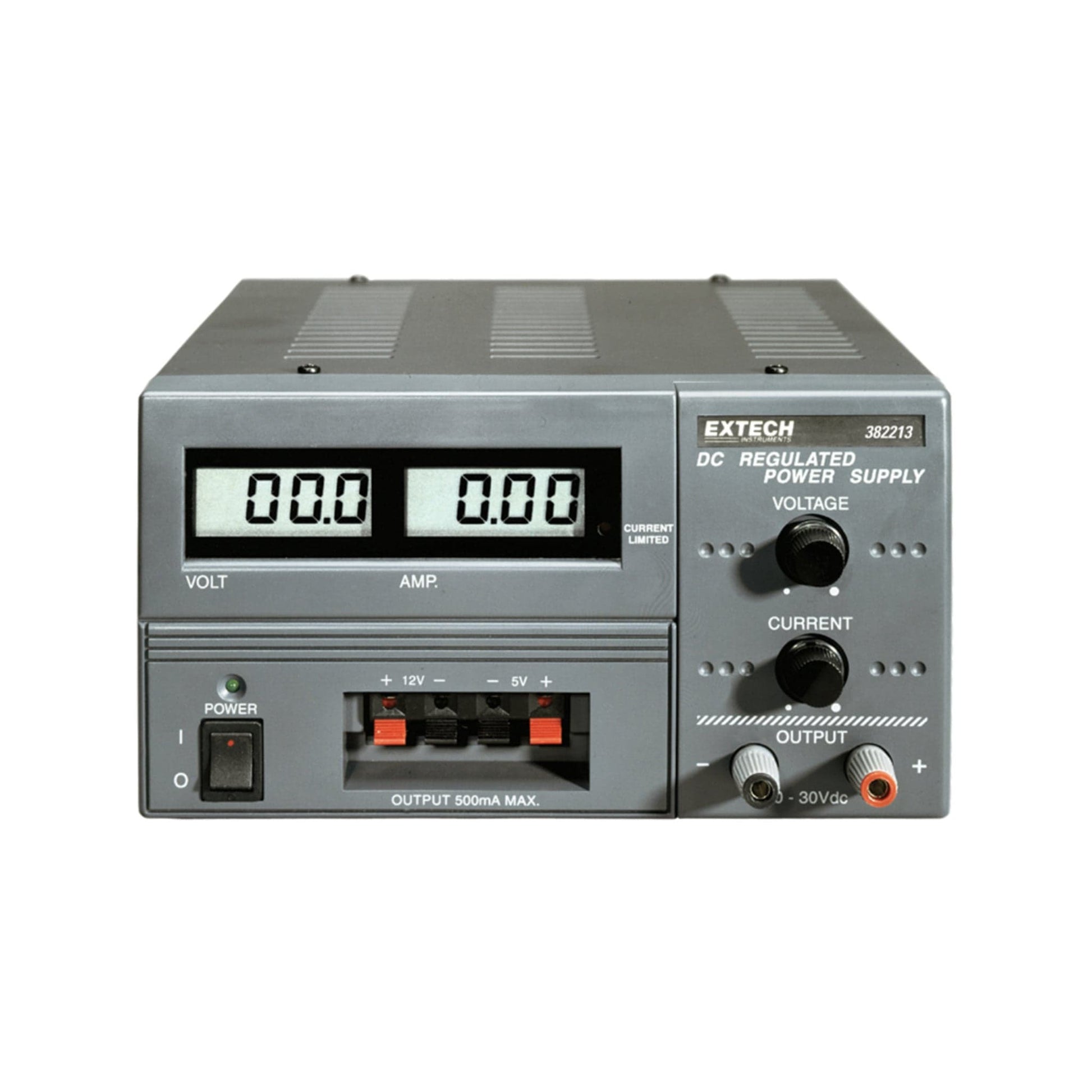

Digital Triple Output DC Power Supply
Item # P4-3400
This versatile digital power supply has three outputs, provides constant current or voltage with both overload and short circuit protection.
This digital power supply has three outputs: adjustable 0-30 V at 0-3A, fixed 5V, and fixed 12 V.

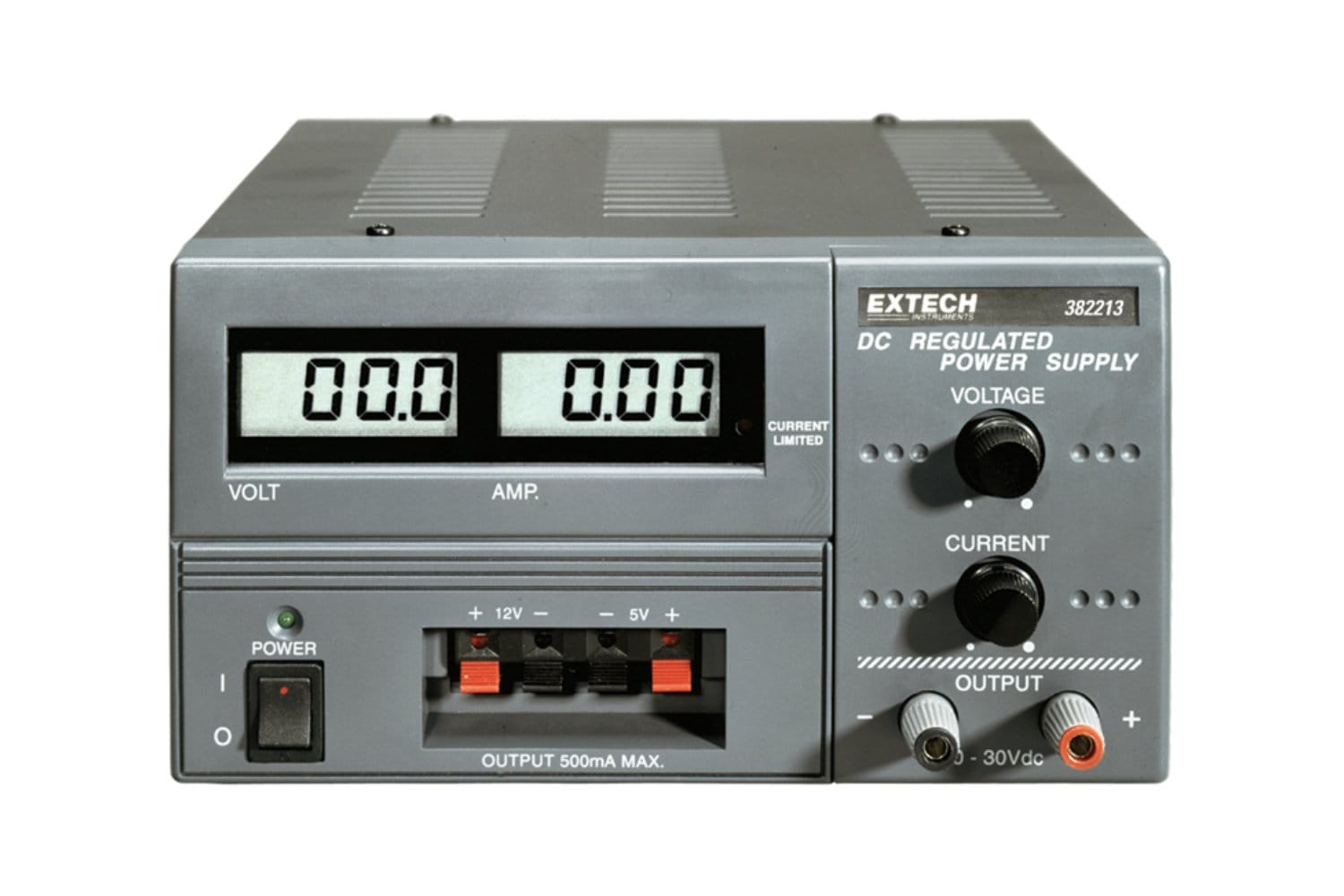

It provides constant current or constant voltage modes and has overload and short circuit protection. Binding post terminals are provided for the variable supply. Easy snap terminals are provided for the 5V and 12V outputs. The front panel contains digital voltage and current meters for the variable output, so you won't need additional metering in a typical experiment.
Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.
Features & Specs
|Voltage Output, DC||0-30V|
|Current Output, DC||0-3 Amps|
|Current Limiting Indicator||Status LED|
|Accuracy||± 7% Full Scale|
|Ripple and Noise||< 5mV|
Fixed Output Voltage
|< 0.05% + 10mV
5V/0.5A (continuous); 1A (max.)
12V/0.5A (continuous); 1A (max.)
|Power||110/220VAC 50/60Hz (switchable)|
|Dimensions||6 x 5.6 x 9.5" (152 x 142 x 242mm) (WxHxD)|
