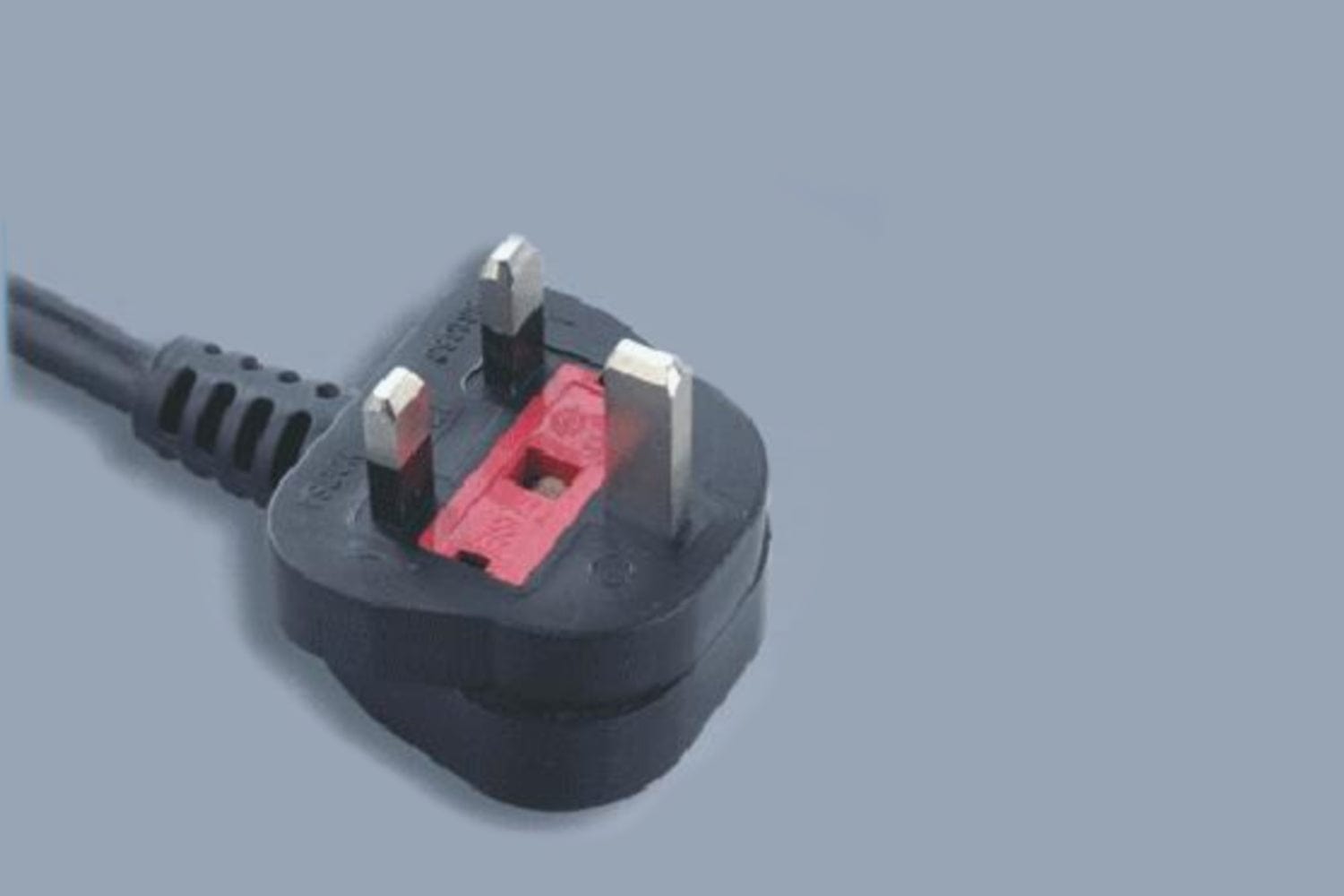

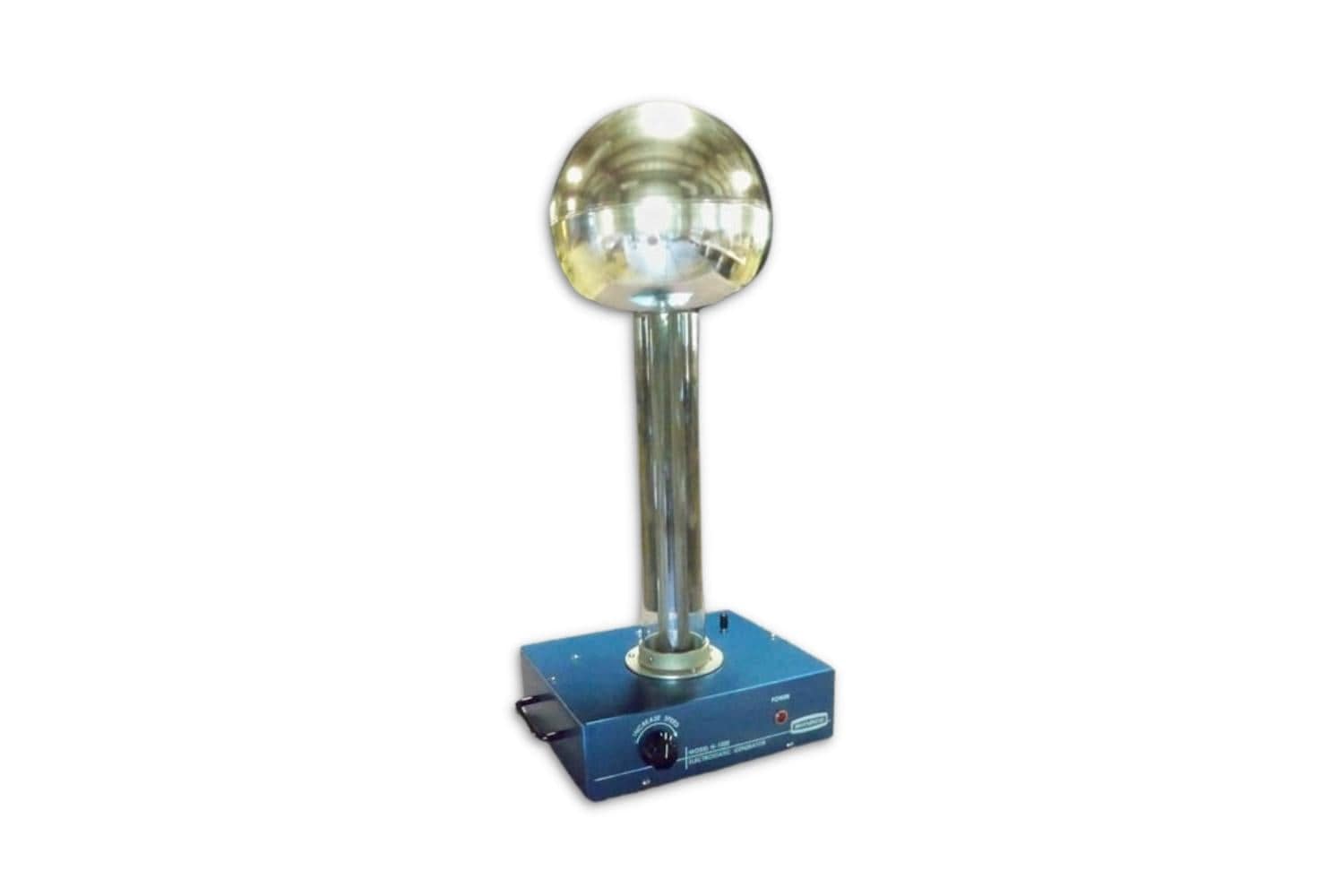

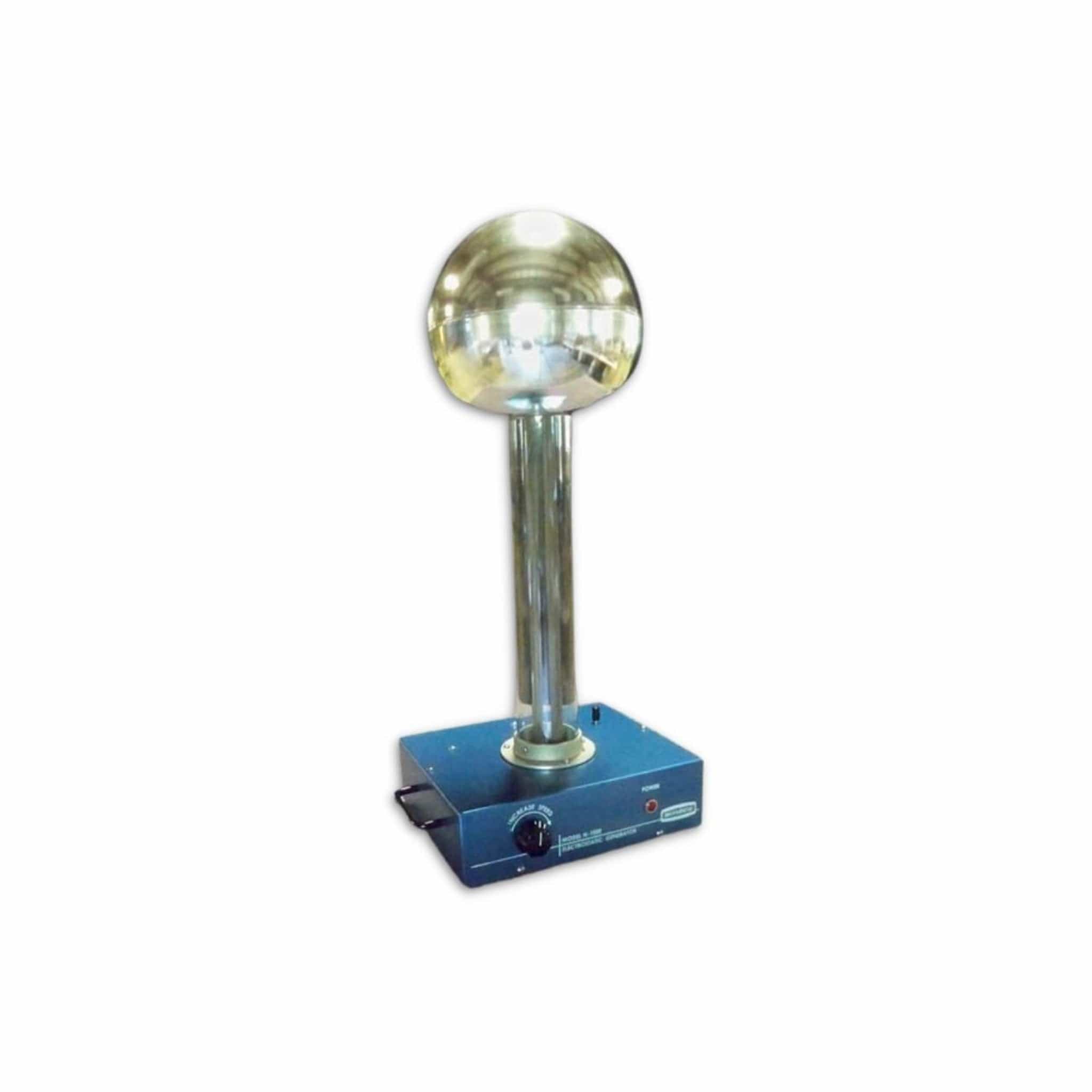

Deluxe Van de Graaff Generator 220 Volt UK Plug

Item # P6-3600

Wabash Instrument Corp



Sold Out

Item can be ordered

This 220 volt Van de Graaff generator is for our international customers. Generator provides power for all basic electrostatic experiments on a dramatic scale, with sparks of 8" to as high as 15".


Note: This product is Special Order

Van de Graaff Generator: Identical to our P6-3300 Generator, except that it's for use on 220 volt electrical circuits.

This rugged unit will help you give demonstrations that will impress the socks off your students. Generator provides power for all basic electrostatic experiments on a dramatic scale, with sparks of 8" to as high as 15". Yet with a maximum continuous current of just 10 microamps, it's quite safe for classroom use.


  • Dome: 25cm
  • Overall Ht: 76cm
  • Lower Cabinet: 30 x 25 x 7.5cm

Sample Activity: Charging a Person's Hair

This is fun for all the class, but not necessarily an easy demonstration to pull off. If you can raise an entire person to the voltage level of the dome, then their hair should act in much the same way as with an electric plume.

The first step is to insulate the person from ground by having them stand on something like a sturdy plastic milk crate. Have your volunteer place his hand on the dome and then start the machine. The subject must understand that he is not to remove his hand or he will receive a shock when he puts it back. In a minute or so, the person will have been raised to about as high a potential as you're going to get. If the hair is now standing up, you have succeeded. If not, it's time to consider what might be wrong.

First, the Deluxe Van de Graaff generator is not a huge machine, so the smaller the person you have selected, the better. There will be less surface from which to lose charge. Second, be sure there are as few "points" of loss as possible. Things like rings on fingers, metal barrettes, and belt buckles should be avoided. Third, be sure the machine is in good operating condition and is putting out plenty of voltage.

The repulsive forces available are relatively small and are quite insufficient to untangle hair or overcome any type of hair spray. The best results come from clean, straight, dry hair of perhaps 3 or 4 inches in length.

Download the instructions
Download additional instructions and sample activities

Products being sold are not toys. They are for Educational / Labratory use only. They are not for use by children 12 and under.
