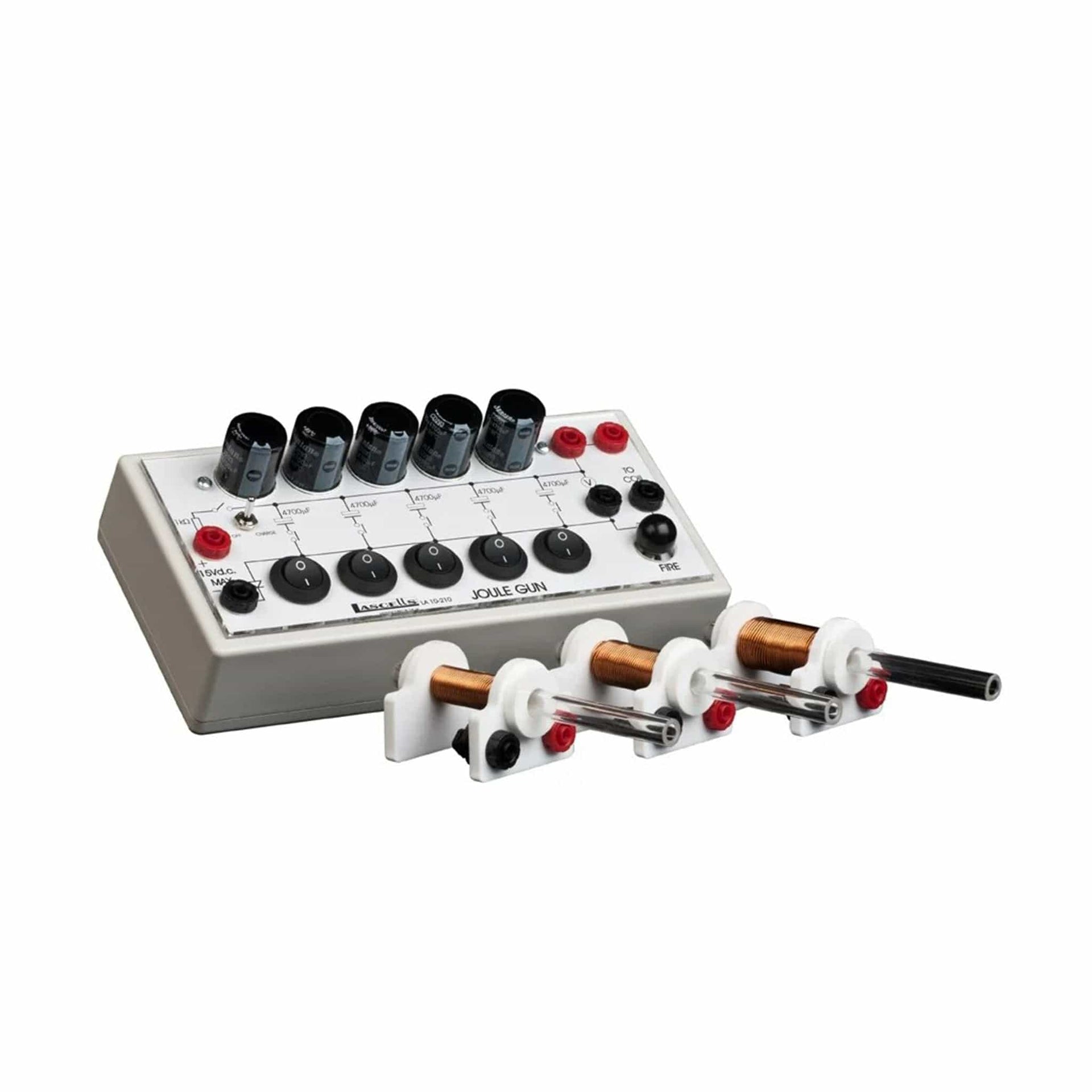

Physics Joule Gun
Item #96-2300
$399.00
Bundle Discount
Change stored energy into motion
The Physics Joule Gun is a capacitor discharge apparatus that demonstrates how stored electrical energy is converted into mechanical motion through electromagnetism. Students charge a bank of switchable capacitors and release the stored energy through a low-resistance coil, launching a small steel projectile with a controlled pulse. This hands-on system allows investigation of energy storage (½CV²), capacitor behavior, magnetic force, projectile motion, and energy efficiency in a single classroom device.
Why Teachers Love the Physics Joule Gun
-
Powerful Energy Transformations in One Device – Students see electrical energy stored in capacitors convert into electromagnetic force and then kinetic energy, making abstract energy concepts concrete and measurable.
- Multiple Variables for Meaningful Data Analysis – Adjust voltage and capacitance to investigate how stored energy affects projectile motion, efficiency, and system losses — ideal for graphing, modeling, and quantitative lab reports.
- Built for Repeatable, Classroom-Ready Investigations – The switchable capacitor bank, low-resistance coil, and push-button firing mechanism make setup straightforward and allow for consistent, repeatable launches that support reliable data collection.
Product Details
The Physics Joule Gun supports a wide range of electricity, magnetism, and energy transformation labs, including:
- Capacitor Charging & Discharge Experiments
- Energy Storage & Conversion Labs
- Electromagnetism & Magnetic Force Demonstrations
- Efficiency and Energy Loss Analysis
- Kinetic & Potential Energy Comparisons
- Projectile Motion from Stored Energy
- Electric Field & Coil Force Studies
Students can vary charging voltage and capacitance to model how stored electrical energy (½CV²) affects projectile velocity, kinetic energy, and overall system efficiency.
Perfect For These Courses
High School
- Physics (CP, Honors, AP® Physics)
- Electricity & Magnetism Units
- STEM Electives & Engineering
- GCSE / IGCSE Science
College & University
- Introductory Physics
- Electricity & Magnetism Labs
- Energy & Power Analysis Courses
- Engineering Foundations
Product Specifications
Technical Specifications & Inclusions
- Capacitor Bank: Five high-value capacitors switch-selectable
- Output Coil: Low-resistance electromagnetic pulse generator
- Safety: Controlled firing mechanism with safety considerations
- Includes: 15-page experiment booklet with detailed procedures and variables to explore Dimensions: ~680 × 130 × 130 mm
- Weight: ~1.1 kg
FAQ
Frequently Asked Questions
What does the Joule Gun demonstrate?
The Physics Joule Gun demonstrates energy storage in capacitors and the conversion of that stored electrical energy into mechanical motion via electromagnetism. It allows students to investigate energy transformation, conservation of energy, and system efficiency.How are capacitors used in this apparatus?
Five high-value capacitors can be switched into the charging circuit to vary how much electrical energy is stored before discharge. The stored energy (½CV²) is then released through a coil to generate motion.Is it safe for classroom use?
Yes. The apparatus includes a controlled firing mechanism and guided procedures in the included experiment booklet. Standard electrical and lab safety protocols should always be followed.Can students vary experimental conditions?
Absolutely. Students can adjust charging voltage, capacitance, and measure projectile motion to analyze relationships between stored energy, magnetic force, and kinetic energy.What topics is it best for?
The Physics Joule Gun is ideal for teaching energy storage and transfer, capacitor charging and discharge, electromagnetism, energy efficiency, and projectile motion.
